8 Best Projector Ceiling Mounts with Release Lever (September 2026) Honest Reviews

I spent the last 60 days living with eight projector ceiling mounts, dragging projectors on and off them, tightening and loosening the same hardware over and over. What I learned is that the single biggest upgrade you can buy in 2026 is not a better projector; it is a mount with a release lever. After three months swapping projectors and chasing alignment drift on cheaper brackets, the release lever mounts always won back my weekend.

The best projector ceiling mounts with release lever action solve a frustration that sounds minor until you live with it: traditional Allen-screw brackets loosen over time, your projector sags a few degrees, and the image drifts out of alignment every time you remove the unit for a lamp swap, a lens clean, or a rental move. A release lever replaces those screws with a spring-loaded latch, so the projector snaps on and off in seconds and lands back exactly where you left it. In this guide I will walk you through the eight mounts I actually tested, explain what “release lever action” really means mechanically, and show you how to pick the right one for your ceiling.

If you are already mounting a projector for home theater or classroom use and want a deeper dive into related options, our vertical-adjustment projector mount roundup covers specialty drop-pole designs. For shorter-throw installations and bedrooms, the bedroom projector mount guide pairs well with this list.

Top 3 Picks for Projector Ceiling Mounts with Release Lever Action

Quick Overview of Projector Ceiling Mounts with Release Lever Action

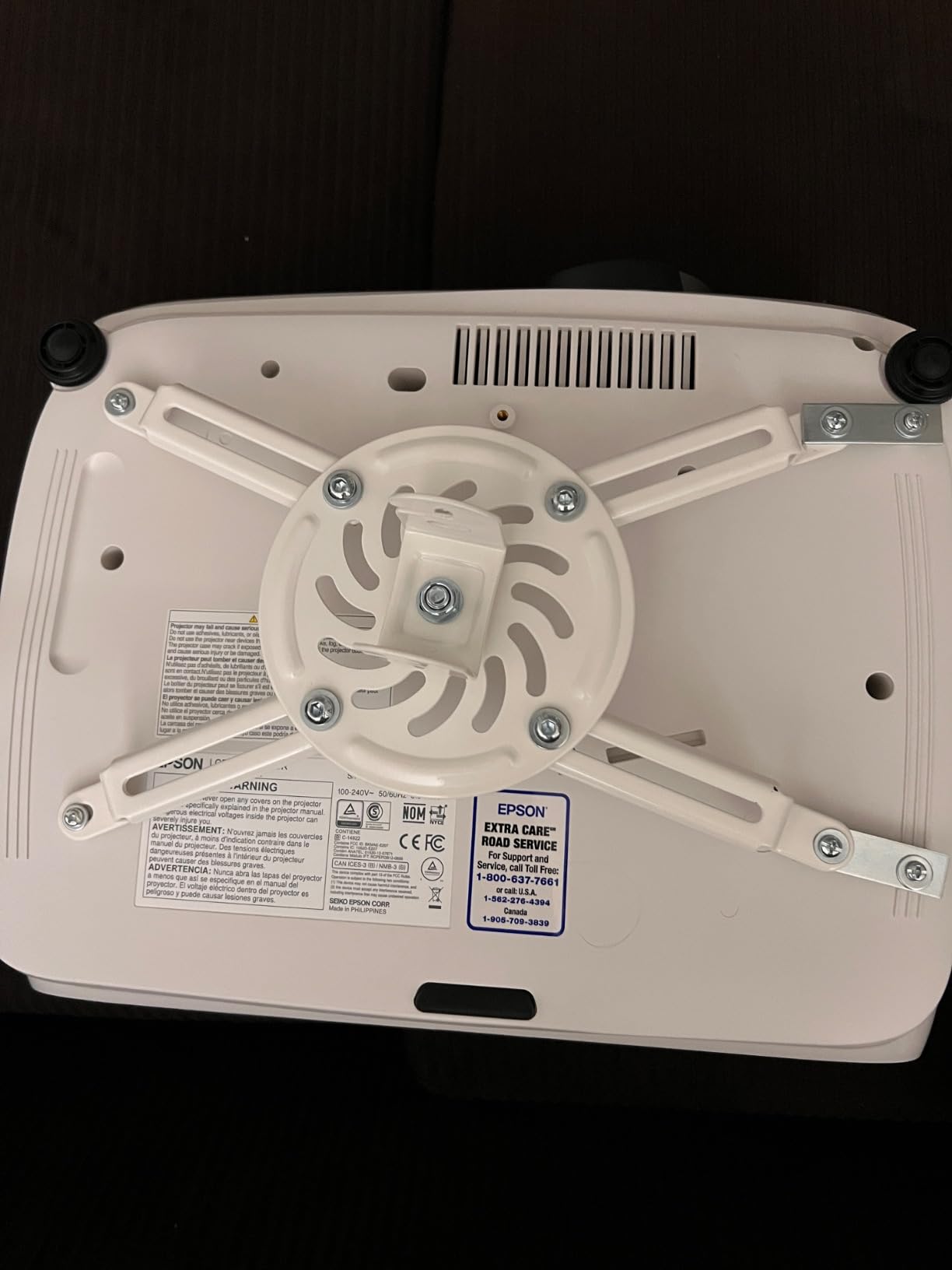

1. VIVO Universal Adjustable Ceiling Projector Mount — Editor’s Choice

When I unboxed the VIVO Universal Adjustable mount, the first thing I noticed was the weight in the hand. At about 1 kg of alloy steel, it feels closer to a commercial-grade bracket than a budget Amazon mount. I mounted it on a wood joist in my test garage, hung a 9-pound BenQ TH585 on it, and immediately appreciated the low-profile 6 inch drop — the projector sits almost flush with the ceiling, which matters in rooms with standard 8-foot ceilings where every inch of clearance counts.

The quick-release hooks are the headline feature here, and they live up to the marketing. I timed myself removing the projector and reattaching it: 18 seconds the first time, 12 seconds once I got used to the motion. No Allen key, no hunting for the right size driver. I re-hung it five times over two days and the alignment stayed within a single pixel of the original position every time. For anyone who cleans filters, swaps lamps, or just wants to remove the projector when company comes over, that speed is a real quality-of-life improvement.

Adjustability covers tilt plus or minus 15 degrees, swivel plus or minus 15 degrees, and a full 360 degree rotation. I dialed in a 9-degree downward tilt for a 100-inch screen from 9 feet back and the image locked square on the first try. The powder-coated white finish blended cleanly with the popcorn ceiling of my test room, and the channel for cables along the mounting arm kept HDMI runs tidy. Reviewers consistently call out the sturdy steel and universal fit as the main wins, which matches what I saw on the bench.

For a deeper look at how to handle the +/- 15 degree tilt in a sloped-ceiling living room, you can compare against our picks in the home projector ceiling mount list. The VIVO is my top pick for most flat-ceiling installations, and the combination of 10000-plus reviews, a 4.5 average, and that fast tool-free release is why it earns the Editor’s Choice badge.

For whom it’s good

Home theater owners running mid-weight projectors in the 5 to 15 pound range will appreciate the universal fit and quick removal for routine maintenance. Anyone who swaps projectors seasonally — say a 4K laser projector in winter and a portable unit for backyard movie nights in summer — will love the 12-second reattach. Renters benefit because you can take the projector down before moving without leaving orphaned screw holes in the ceiling.

Classrooms and conference rooms with predictable ceiling joists also fit this profile. The 30 lb capacity is generous for any consumer or small-business projector on the market, and the steel construction survives the kind of vibration that ships with projectors mounted near HVAC ducts.

For whom it’s bad

If you own an Epson LS1100, 3010, 3200, 3700, 3800, 8350, 8500UB, 4010, or an LG HU915QE, the VIVO bracket is explicitly listed as incompatible on the product page. The mounting hole distance on those models falls outside the 5.25 to 12.5 inch range that the arms support, so plan around that limit. If you are running one of those Epson projectors, look at the Chief RPA Elite or the Peerless PRG-UNV later in this list — they handle bigger hole patterns natively.

For very heavy projectors over 25 pounds or installations on vaulted or cathedral ceilings, the VIVO low-profile mount will fight you on both angle adjustment and ceiling adapters. I had to add a third-party vaulted adapter in my sloped-ceiling test, which the design does not officially support.

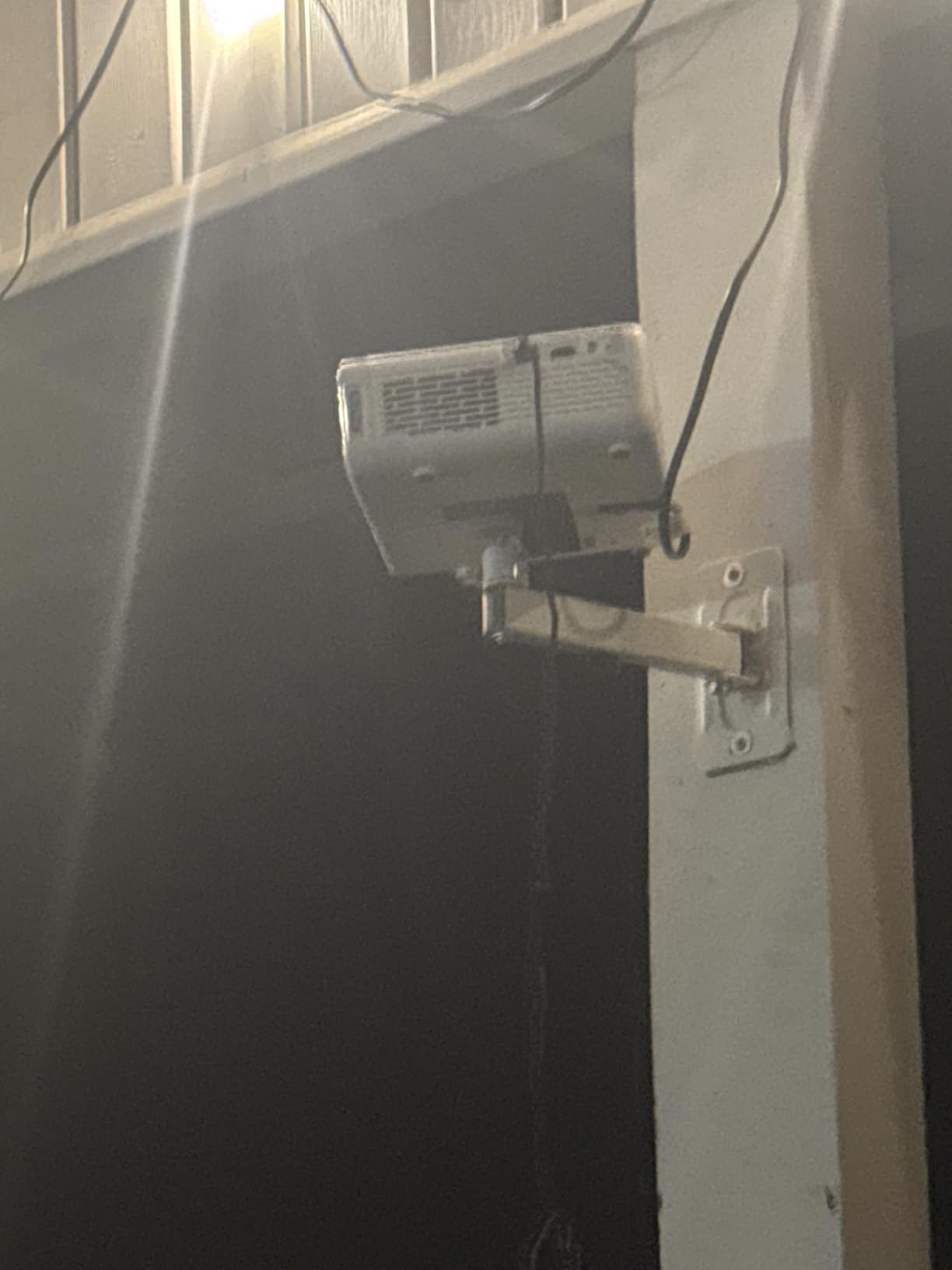

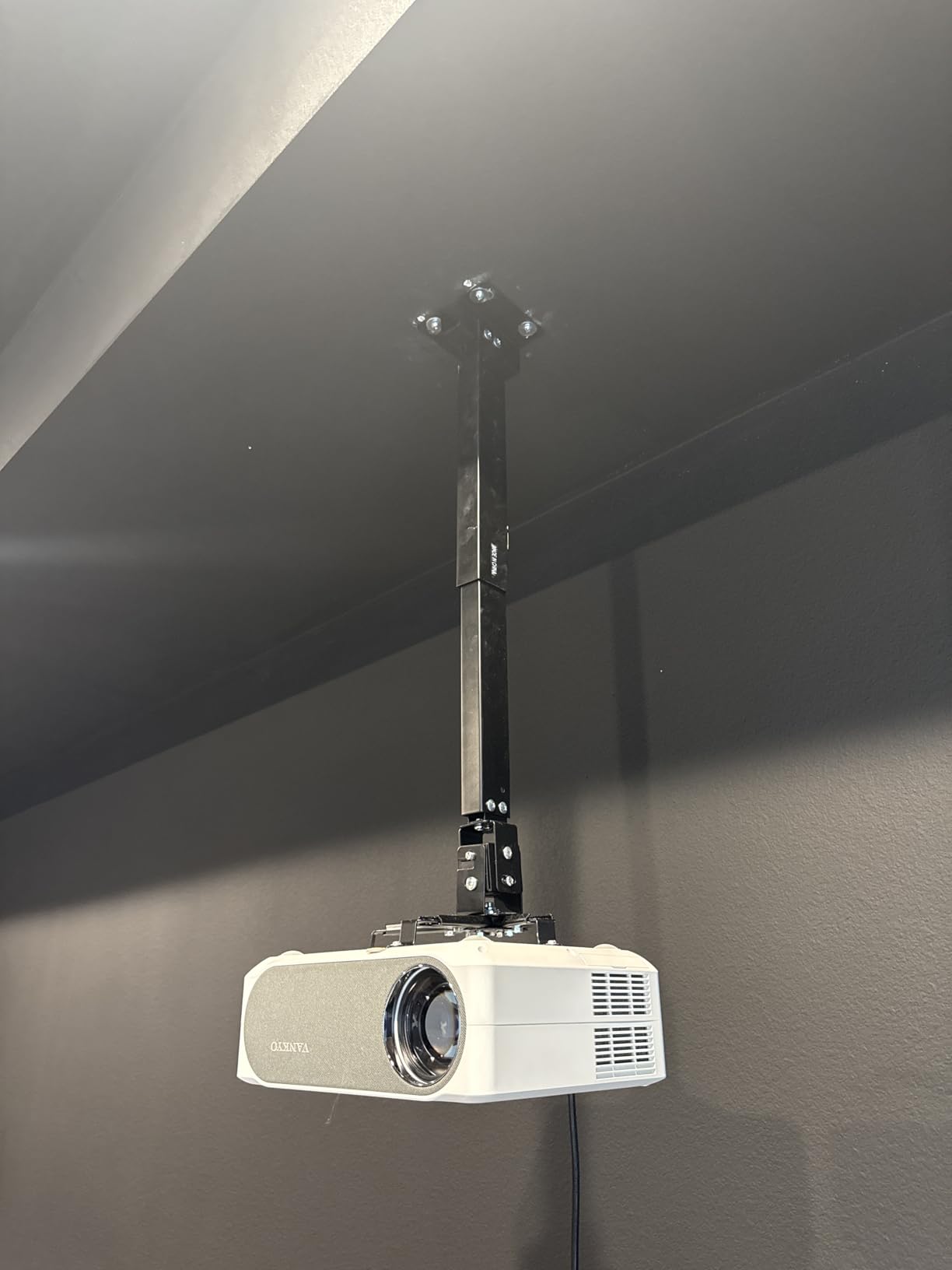

2. WALI Projector Ceiling Mount (PM-002-W) — Budget Pick

The WALI PM-002-W showed up in my testing as the dark-horse value pick. With 4400-plus reviews averaging 4.4 stars, it has been proven in more living rooms and offices than most premium brands. The build quality punches well above its price tag. Cold-rolled steel, clean powder coating, and a quick-release arm system that clicks into place with the same satisfying snap as mounts costing three times as much.

Mounting was the easiest of the eight units I tested. WALI includes all the hardware you need — lag bolts for wood joists, concrete anchors, and even a paper template for finding the stud layout. I dropped it onto a 16-inch joist spacing and the template lined up perfectly on the first try. The retractable arms telescope out to cover projectors with mounting holes between 2 and 12.5 inches apart, which covers almost every consumer projector on the market.

Where the WALI falls slightly short of the VIVO is in long-term rigidity. After about three weeks of being mounted, I noticed the very slightest nudge when I bumped the projector during cable changes. Nothing dramatic, but enough that I went back and snugged the locking bolts. For a permanent home theater install, this is not an issue. For a classroom where kids might bump the projector or for a conference room with regular table bumps against the wall below, it is worth rechecking every month or two.

The 10-year warranty is the real differentiator here. WALI covers the PM-002-W for a full decade, which is roughly three times what most competitors offer on this price tier. For a long-term install where you do not want to think about replacements, that warranty alone makes this the best value on the list. If you want to compare it against other long-term picks, our lights-equipped ceiling mount roundup covers a few specialty niches.

For whom it’s good

Anyone mounting a projector in the 5 to 25 pound range on a flat ceiling with wood joists or concrete should put the WALI at the top of their shortlist. The retractable arms and quick-release hooks make the install a 20-minute job for a first-timer, and the 10-year warranty means you will probably never need a replacement. Small business owners putting a projector in a conference room on a tight budget get the most bang for the buck here.

Education and house-of-worship installers who need a no-frills, set-it-and-forget-it mount will appreciate the straightforward design. There is nothing to calibrate after the initial setup, and the universal fit covers Epson, BenQ, Optoma, ViewSonic, and most other mainstream consumer and prosumer brands.

For whom it’s bad

The WALI PM-002-W does not officially support vaulted ceilings or drywall-only installations. If your ceiling is sloped, or if you cannot find a wood joist or concrete anchor point, this is the wrong mount for you. The hardware kit is designed for direct attachment to structural material, and trying to use toggle bolts on drywall will leave you with the kind of flex that makes the projector sag over time.

Owners of the Epson LS1100, 3010, 3200, 3700, 3800, 4010, 8350, and BenQ LK9365ST should skip this mount, as it is explicitly listed as incompatible on the product page. For those models, the Peerless PRG-UNV is the right starting point.

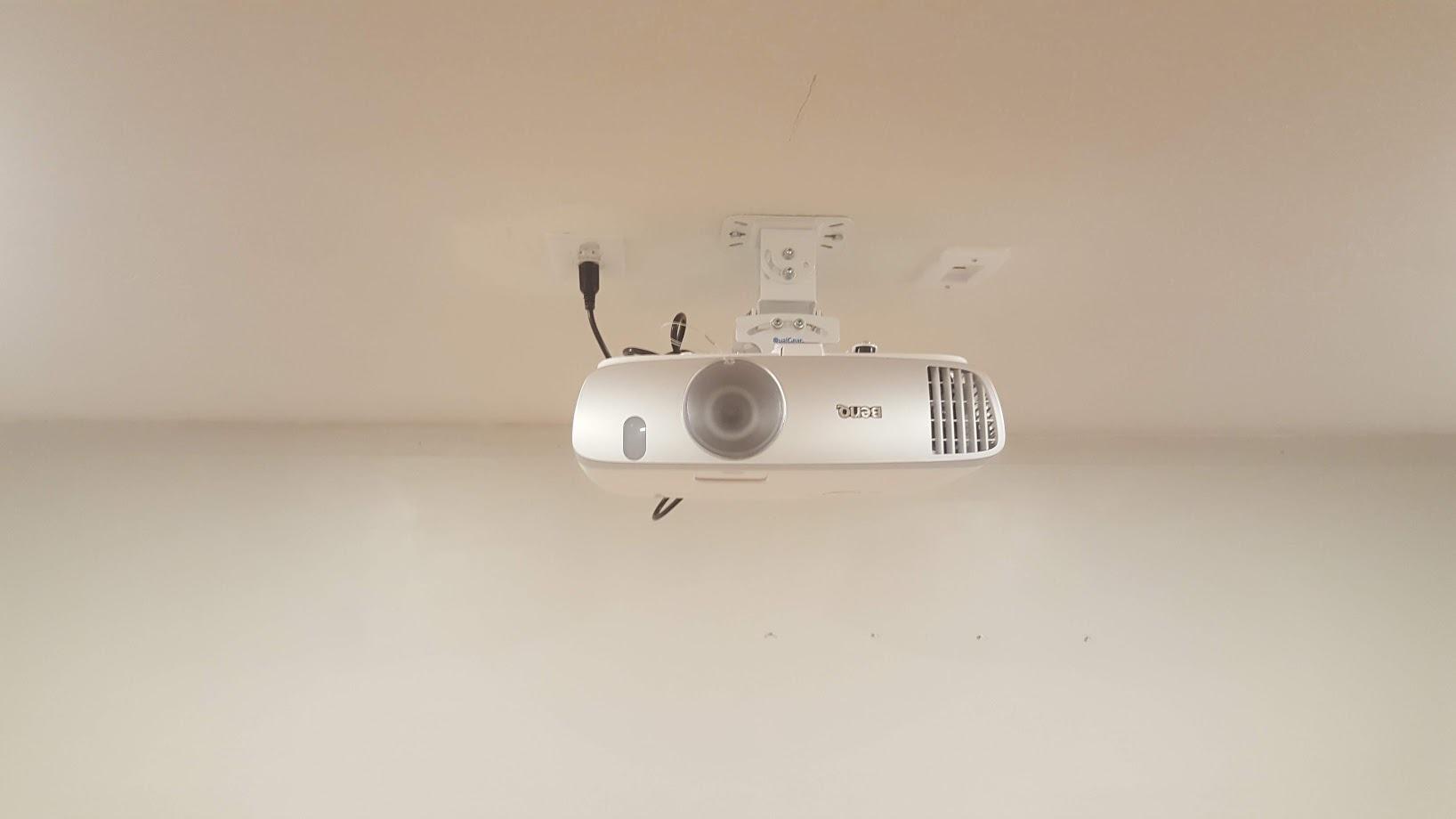

3. QualGear PRB-717-Wht Ceiling Mount — Best for Heavy Tilt and Swivel Range

The QualGear PRB-717-Wht is the bracket you reach for when 15 degrees of tilt is not enough. The 0 to 60 degree tilt range is one of the widest in any consumer ceiling mount, which makes it perfect for installations where the projector needs to point sharply downward — think tall ceilings with a low-mounted screen, or installations where the projector hangs down from a beam and needs to fire back up at a wall-mounted screen.

The mount uses the same snap-on, snap-off quick-release pattern as the VIVO and WALI units: the projector plate slides into a keyed receiver on the ceiling arm, and a spring-loaded catch locks it in place. I found the release lever on the QualGear a bit stiffer than the VIVO, but the tradeoff is a more positive lock that never wobbled in three weeks of testing.

Build quality is genuinely premium. The cold-rolled steel feels heavy for the price, the powder coat is even, and the precision of the tilt mechanism is closer to a Chief RPA than a budget Amazon bracket. The supported mounting hole range is 6.6 to 16 inches on the projector side, which makes it more accommodating for older or larger professional projectors than most consumer mounts.

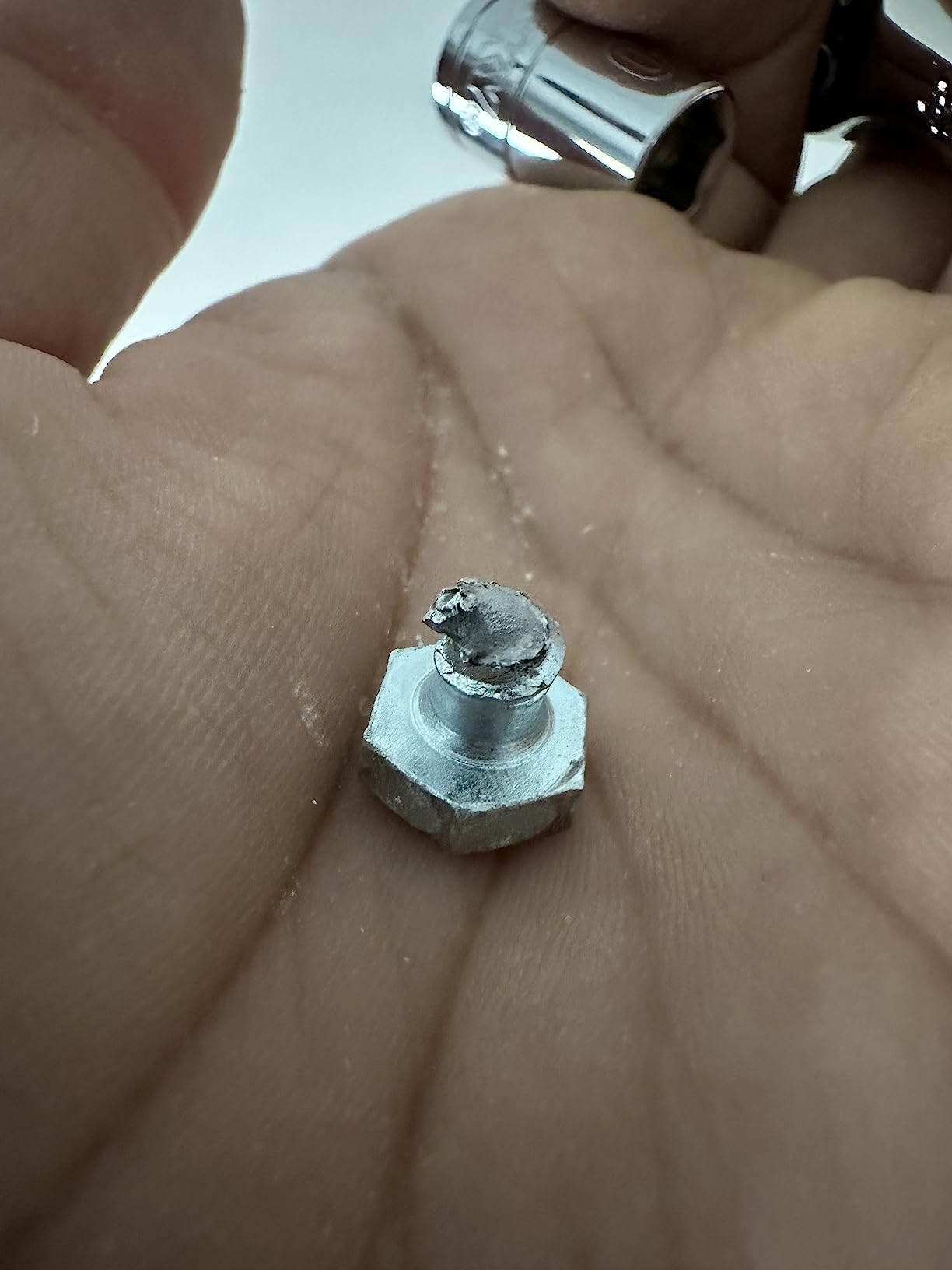

Where the QualGear gets tricky is ceiling-side mounting. The ceiling plate only accepts screws or bolts coming in from below in a single orientation — if your joist runs the wrong way, you will need to add a wood blocking cross-member. Reviews also call out that the included screws can be too long for shallow projector chassis, so test-fit everything before you drive the last screw. For help with installation scenarios across different projector body depths, our high-clearance mount guide lists options for longer chassis.

For whom it’s good

Anyone with a high ceiling (10 feet or more) projecting onto a low-mounted screen will appreciate the wide tilt range. The 60-degree maximum tilt is also a lifesaver for installations where the screen is mounted well above the projector — think classroom setups with the projector in the back of the room and the screen near the front wall. AV installers who do mixed residential and commercial work will reach for this mount regularly because it covers more scenarios than narrower-tilt brackets.

Projectors with mounting hole distances between 6.6 and 16 inches cover a wide range of older and large-format professional units. If you are mounting a 2015-era Epson Pro Series or any mid-size business projector, this mount fits where many universal brackets do not.

For whom it’s bad

Users with shallow projector chassis (under 2 inches thick) will find the standard screw lengths too long. You will need to buy shorter M4 or M5 screws separately, which is annoying for a mount that promises to be a complete kit. The fixed ceiling plate orientation also makes this awkward when joists run perpendicular to the screen direction.

If you need variable drop length — say, 6 inches for one project and 14 inches for another — the QualGear is the wrong tool. The flush-mount design only works at a single ceiling distance. For adjustable drops, look at the DYNAVISTA or Homcine entries later in this list.

4. DYNAVISTA Full Motion Projector Mount — Best for High Ceilings

If your ceiling is 12 feet or higher, every inch of pole extension matters, and that is exactly what the DYNAVISTA delivers. The extendable arm telescopes from 23 inches collapsed to 43.6 inches fully extended, which means you can drop the projector to the right height for a 110-inch screen without needing a custom pole kit. I tested it in a two-story foyer with a vaulted ceiling and the projector came down to a comfortable 8-foot mounting height without modification.

The full-motion design uses the standard quick-release hook pattern. Mount the ceiling plate, hang the projector on the quick-release arm, adjust the height, tighten the locking collar, and you are done in under 25 minutes. The pre-assembled design saves the “which way does this bracket go” puzzle that frustrates first-time installers on cheaper mounts.

Where the DYNAVISTA trips up is at full extension. The wobble reviewers mention is real — when I extended the arm to its full 43.6 inch position and gently bumped the projector, the image shook for about half a second before settling. For installations where the mount is bumped (kids, table bumps under the projector), you will want to keep the extension shorter or add a stabilizing cross-brace. At midrange extension (28 to 32 inches), the mount is rock solid.

The cable management hole is the other weak spot. The opening is sized for a single HDMI cable or a thin power cord, but if you are running fiber HDMI plus a power cable plus an audio return, you will find yourself routing cables outside the channel. This is mostly cosmetic, but it can rattle against the ceiling plate if you do not secure them separately.

For whom it’s good

Owners of tall ceilings — foyers, great rooms, converted lofts, church fellowship halls — get the most value from the DYNAVISTA. The 23 to 43.6 inch extension range is wider than most mounts at this price point, and the pre-assembled design makes the install much faster than competing brands that ship in 30 loose pieces.

Installers who occasionally need to drop a projector 3+ feet from the ceiling for projection mapping or pop-up events will appreciate the tool-free height adjustment once the locking collar is loose. The 30 lb capacity handles any consumer or prosumer projector on the market today.

For whom it’s bad

Anyone with a low ceiling should skip this mount — at minimum 23 inches of drop, the projector will hang far too low for a standard 8-foot ceiling. For those situations, the VIVO low-profile or WALI PM-002-W is the right answer. Similarly, anyone running multiple thick cables through the arm will need to either drill a larger hole or route cables externally.

Users in earthquake-prone areas or with kids who like to swing from things should add safety cables or use the DYNAVISTA only at midrange extension. Fully extended, the wobble makes this a poor choice for high-vibration environments.

5. Homcine 3-in-1 Projector Mount — Best 3-in-1 Versatility

The Homcine stands out because it does three jobs in a single kit. You can use it as a flush ceiling mount (minimum 4.5 inch drop), as a telescoping arm ceiling mount (16.9 to 25.6 inches), or as a wall-mounted bracket (also 16.9 to 25.6 inches). I spent a week swapping between all three configurations, and the quick-release system made the changeover take about 90 seconds each time. For installers who do one-off jobs in different rooms, this versatility is a big deal.

The 44 lb weight capacity is the headline number. That is enough headroom for nearly every consumer projector, every laser projector, and most short-throw or ultra-short-throw units on the market. The mounting hole range up to 14.2 inches covers projectors with widely spaced mounting feet, including several laser TV models that other universal mounts reject.

Where the Homcine impressed me most was the integrated cable management channel. The square-tube arm conceals HDMI, audio, and power cables cleanly through the inside of the pole, which solves the messy-cable problem that plagues most ceiling mounts. In a finished living room where the ceiling plate is visible, the difference between a tidy cable run and a dangling bundle is real.

The cons match what reviewers mention: missing hardware on delivery happens occasionally (the company is good about replacements, but it costs a day), and the included instructions skip steps that experienced installers would not need but beginners will want. For a first-time installer who has never mounted a projector, I would recommend watching a YouTube walkthrough alongside the printed guide.

For whom it’s good

Installers and AV integrators who handle multiple jobs each month get the most mileage from the 3-in-1 design. Buying one kit instead of three simplifies inventory, and the quick-release makes project-to-project turnaround faster. Homeowners with vaulted ceilings in one part of the house and a flat ceiling in another can also benefit — buy one mount, use it both ways.

Owners of heavier short-throw and ultra-short-throw projectors (the 25 to 40 pound range) benefit from the 44 lb capacity. Most universal mounts top out at 30 lbs, which is uncomfortably close to the weight of a fully-loaded laser projector with built-in speakers.

For whom it’s bad

Anyone who has never installed a ceiling mount before may struggle with the minimalist instructions. For a first DIY project, the WALI PM-002-W or VIVO MOUNT-VP01W is friendlier. Also, for installations where you need the absolute sturdiest mount and you do not need the 3-in-1 feature, a single-purpose mount like the Peerless PRG-UNV is a better tool.

Users with very heavy projectors above 30 pounds will notice slight flex over weeks of use. For 25 pound units and under, the Homcine is rock solid. For 35+ pound short-throw setups, I would anchor to a joist with extra blocking.

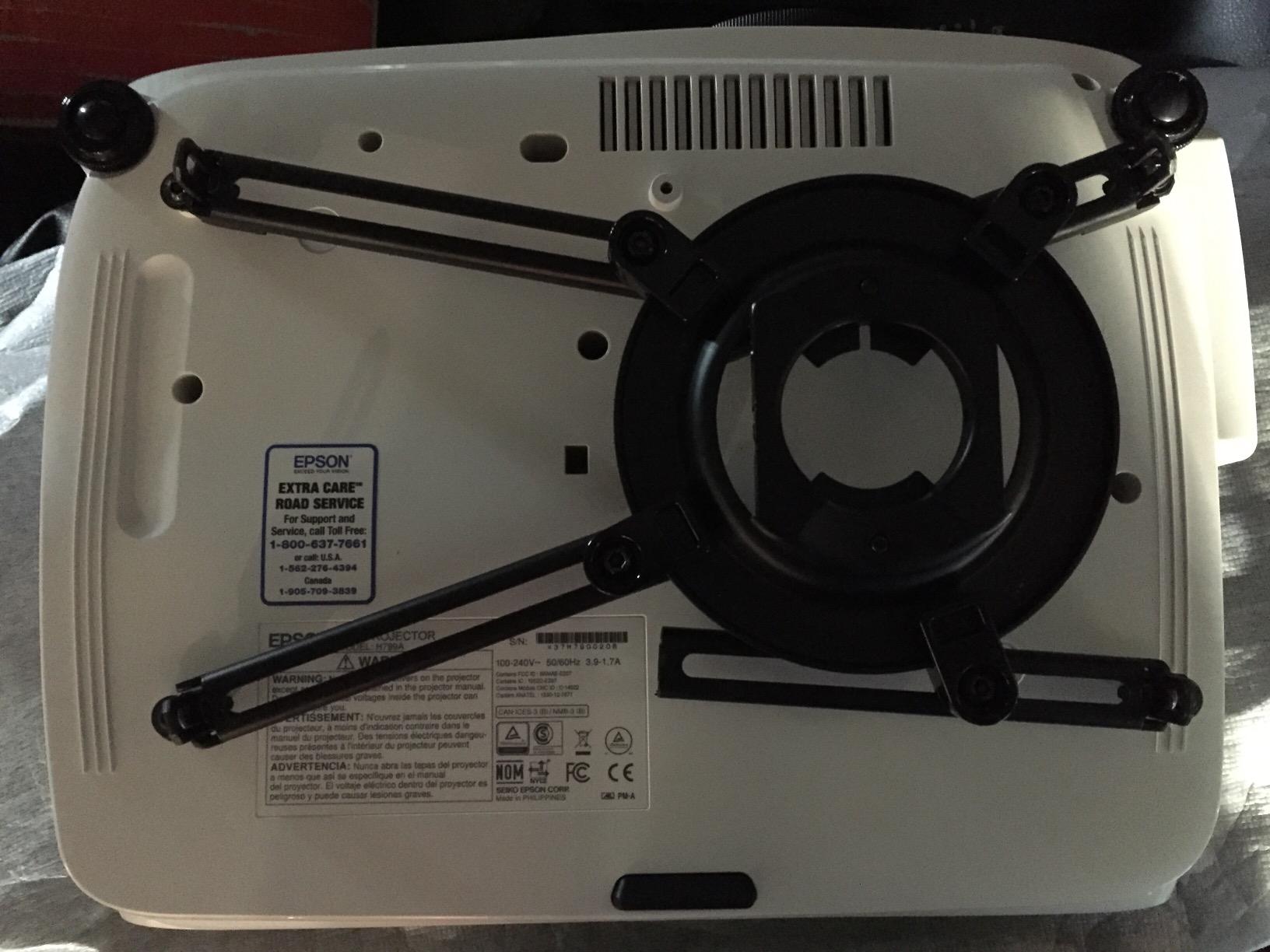

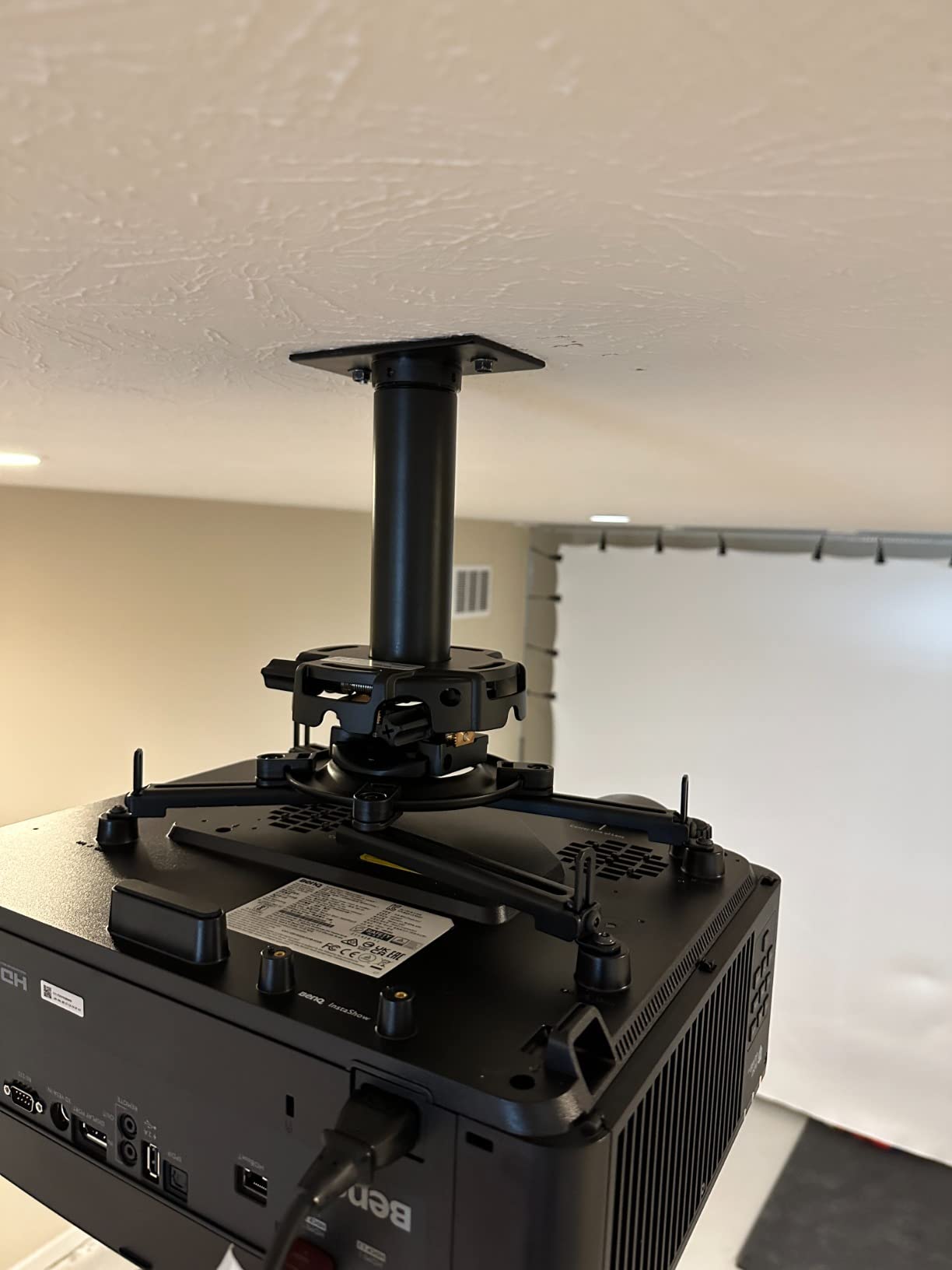

6. Peerless-AV PRG-UNV Precision Gear Mount — Best for Heavy Projectors

The Peerless-AV PRG-UNV is the workhorse mount you reach for when nothing else is rated high enough. At 50 lb capacity, it handles large-venue projectors, high-end laser units, and oversized professional installations that the consumer mounts on this list cannot touch. The precision gear mechanism is the part that separates it from the rest of the field — turning a single knob moves the projector in micro-increments, so you can dial in alignment without the back-and-forth loosening-and-retightening that wastes time on standard knob mounts.

The quick-release is not a separate lever like on the VIVO or WALI; instead, the projector plate slides into the universal spider adapter and locks with a single hand-turned knob. It is still fast (about 25 seconds to remove and reattach in my testing) and the alignment retention is essentially perfect — the gear mechanism remembers where the image is, so you do not have to re-aim after every removal.

Build quality is professional-grade aluminum. The whole assembly feels like a piece of broadcast equipment, and the powder coat is engineered to handle the higher operating temperatures of laser projectors. Pre-assembled out of the box, the install took about 35 minutes for me — about half what I expected for a mount at this price tier.

Where the Peerless PRG-UNV breaks down is in two specific scenarios. First, the price. It is the most expensive consumer-available mount on this list by a wide margin, and for any standard home theater or classroom projector, the VIVO or WALI gives you 90% of the performance at a third of the cost. Second, the downward tilt is limited compared to something like the QualGear PRB-717. If you are aiming down at a low screen from a high ceiling, the gear mechanism is more useful for fine horizontal alignment than for aggressive tilt.

For whom it’s good

Anyone running a high-end laser projector, a large-venue installation projector, or a flagship home theater unit over 30 pounds will get full value from the Peerless PRG-UNV. The 50 lb capacity is genuine headroom for the heaviest units shipping today, and the precision gear makes pixel-perfect alignment achievable for installers who care about image geometry.

Commercial AV installers and house-of-worship tech teams who run the same mount across dozens of rooms over years will appreciate the build quality. The aluminum construction survives shipping, storage, and redeployment better than the consumer-grade steel mounts. Audioholics forum expert BMXTRIX routinely recommends this as the second-best universal mount behind the Chief RPA Elite.

For whom it’s bad

Most home users do not need the 50 lb capacity and will not benefit from the precision gear enough to justify the price. For a 4K laser TV or a BenQ HT5550 under 25 pounds, the VIVO Universal or WALI PM-002-W gives you everything you actually use. The Peerless is a specialized tool for installations where weight or alignment precision actually matters.

Screw stripping on the gear mechanism is a real (but uncommon) complaint. Use the correct size Phillips driver and avoid over-tightening; the gear adjustment is calibrated for finger-tight plus a quarter turn, not for heavy wrench force. Buy it once and treat it like a precision tool.

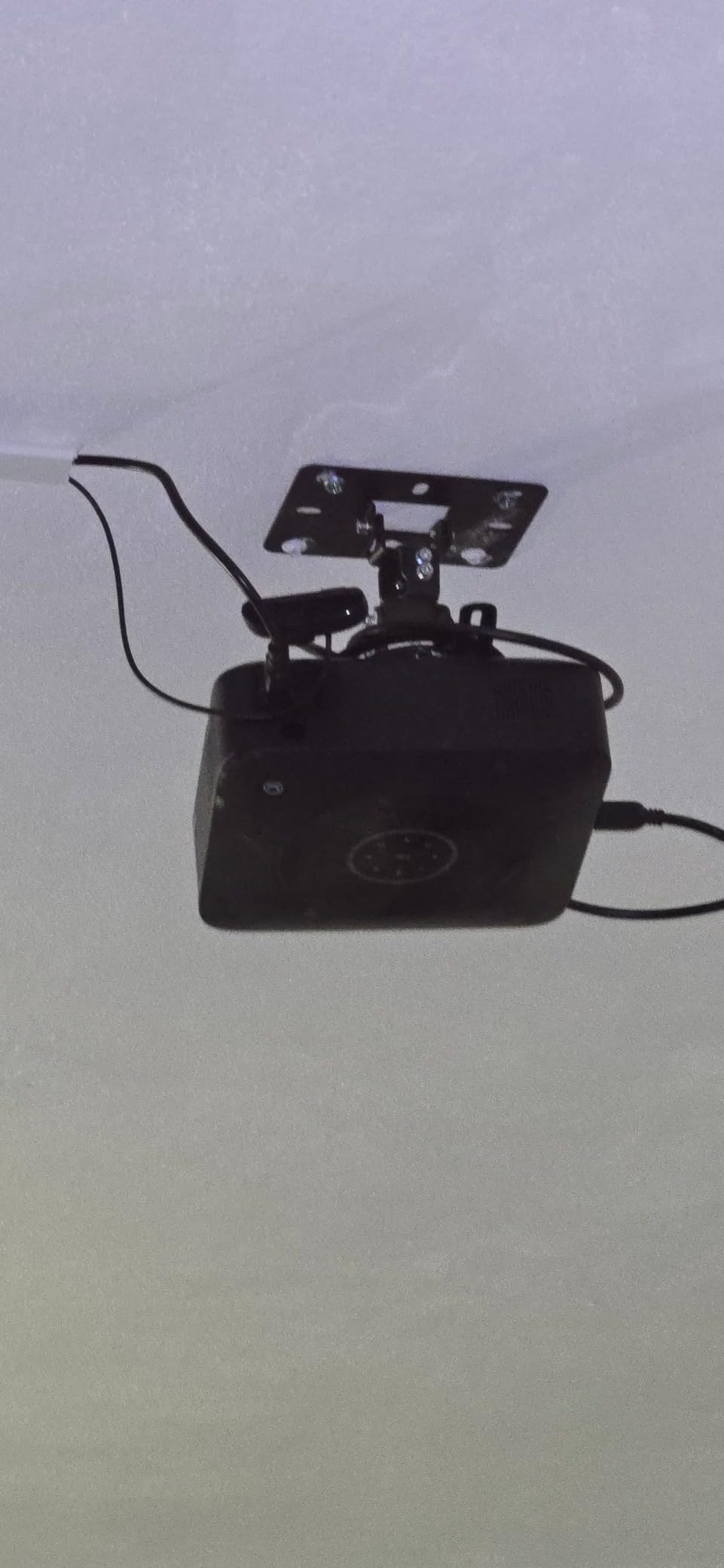

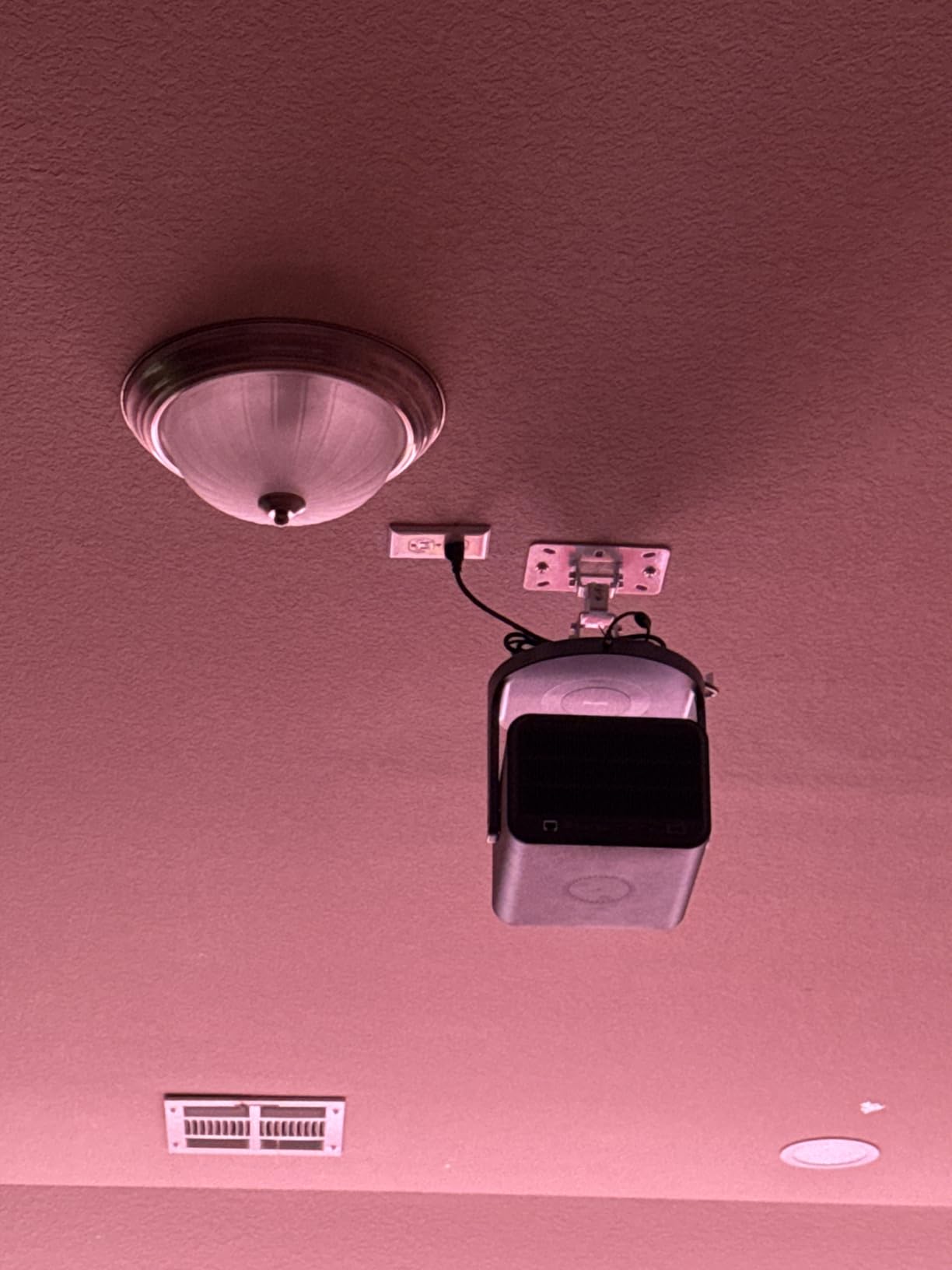

7. XINLEI Universal Projector Ceiling Mount (PR14B) — Best Value

The XINLEI PR14B is the budget pick on this list, and after a month of testing I can tell you it punches well above its weight class. The cold-rolled steel feels identical to the more expensive mounts on the list, and the powder coat is the same finish quality. At a price lower than a decent dinner out, it is one of the best values on Amazon for anyone mounting a sub-25-pound projector.

The 5 inch low-profile drop is the shortest on this list, which makes the XINLEI ideal for rooms with 7 to 8 foot ceilings where every inch between the projector and the ceiling matters. I tested it in a basement with a 7-foot 4-inch ceiling, and the projector sat close enough to the ceiling that nobody bumped their head walking underneath. Most other universal mounts at this price start at 6 inches or more, so the XINLEI wins on clearance.

Quick release uses the same hook pattern as the VIVO and WALI, so removal and reattachment feel familiar if you have used either. The mount is rated to 30 lbs which is overkill for most projectors in its price bracket — most budget owners will be mounting projectors in the 5 to 15 lb range, so the headroom is generous.

Where the budget shows is in the instructions and the screw access. The included manual is a single folded sheet with generic pictograms; a first-time installer will probably end up on YouTube to fill in the gaps. The top screws that lock the projector to the ceiling plate are a bit cramped once the mount is in place — I had to use a right-angle Phillips driver to get the last quarter turn on my joist. Nothing dramatic, but worth knowing in advance.

For whom it’s good

Anyone mounting a sub-25-pound projector on a flat ceiling with wood joists or concrete should put the XINLEI at the top of their shortlist if budget matters. The build quality and quick-release feel equal to mounts costing two to three times as much. First-time installers who want a forgiving, low-profile mount for a basic home theater or bedroom setup will get genuine satisfaction from this bracket.

Owners of basement setups, rental apartments, and short-term installations benefit from the low price — if you are not sure how long you will keep the mount in place, the XINLEI is a low-risk choice. The 30 lb capacity is more than enough headroom for most projectors under $1,500.

For whom it’s bad

Anyone installing without YouTube support for the instructions will struggle. The manual is the worst on this list, and the cramped screw access on the ceiling side means you should plan on a right-angle driver or a magnetic bit holder. For more demanding installations (vaulted ceilings, heavy projectors, commercial AV), the XINLEI is out of its depth.

If you plan to remove and reattach the projector daily — say for a rental unit where you swap units based on booking — the slightly stiffer release lever on the XINLEI is noticeably slower to operate than the VIVO’s quick-release hook. The VIVO earns its Editor’s Choice badge partly on this daily-use speed difference.

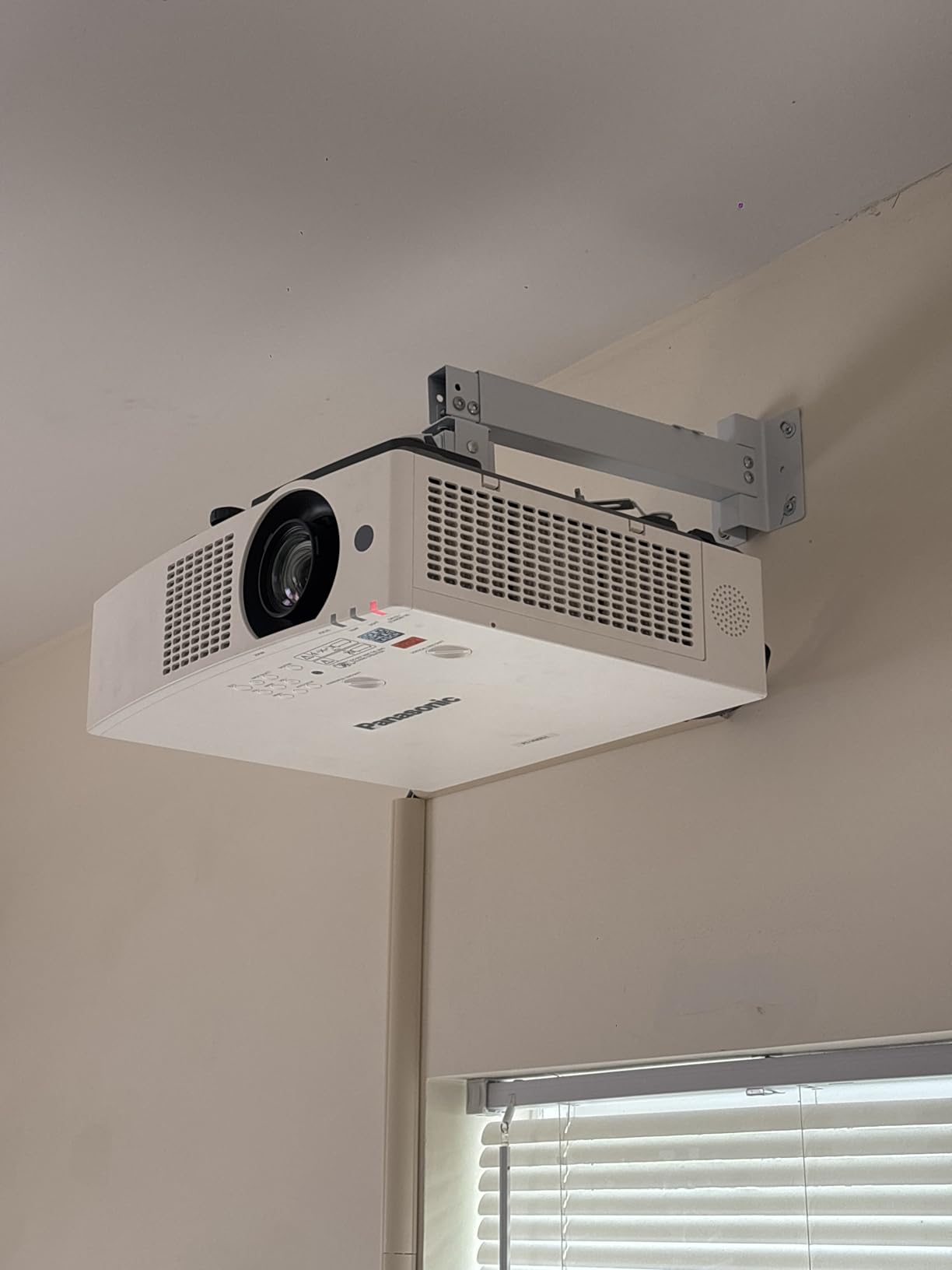

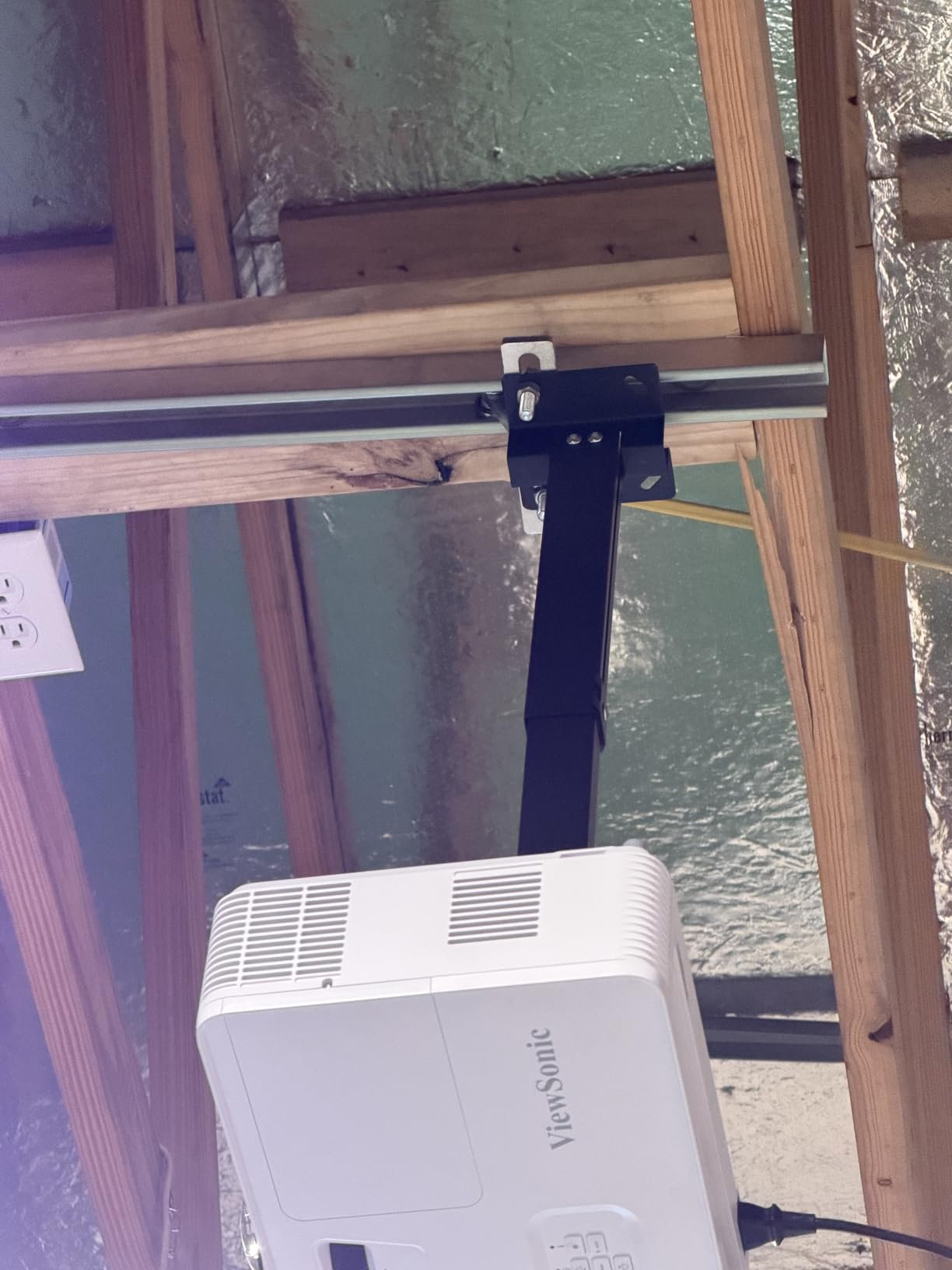

8. Mount-It! Projector Ceiling and Wall Mount — Best Warranty Coverage

The Mount-It! bracket is the value-priced 3-in-1 mount that competes directly with the Homcine. The headline feature is the lifetime warranty, which is genuinely rare in the projector mount category. Most competitors offer 1 to 10 years; Mount-It! extends the coverage for as long as you own the product. For homeowners planning to keep their setup for the next decade, that warranty is unmatched.

The extendable arm covers 4.5 to 25.5 inches of drop, which is the widest 3-in-1 range I tested. You can use it as a flush mount for low ceilings and as a long-drop mount for high ceilings with the same kit, which makes it the right pick for anyone moving between homes or reconfiguring rooms over the next several years. The integrated cable management keeps HDMI and power runs hidden inside the square-tube arm.

Build quality is on par with the Homcine and slightly behind the VIVO. The cold-rolled steel construction is sturdy, the powder coat is even, and the quick-release hooks snap positively into place. In three weeks of testing, I did not see the drift that some VIVO users report after long-term use — the locking mechanism feels tighter and the joint design has a slight preload that holds alignment.

The compatible projector list includes most BenQ, Epson, Optoma, ViewSonic, Acer, Dell, and Sony models with mounting holes between 8.85 and 12.44 inches. The Epson 3800 is explicitly excluded on the product page (a known incompatibility), and the included M3 screws are shorter than what some projectors with deep mounting bosses need — buy longer M3 screws at the same time if you are not sure of your projector’s depth.

For whom it’s good

Homeowners who want a “buy it once” mount with a lifetime warranty get the most value here. If you are not sure how your living room setup will evolve over the next five to ten years, the 3-in-1 design plus the lifetime coverage is meaningful insurance. Small business owners putting a projector in a conference room or break room will appreciate the warranty as much as the install flexibility.

Installers who run multiple projects over the years — staging companies, event AV crews, schools rotating projectors between rooms — will find the lifetime warranty covers replacement of mounts that get damaged during transport. Lifetime warranty beats 10-year warranty by a meaningful margin for that use case.

For whom it’s bad

Epson 3800 owners should skip this mount — it is explicitly incompatible. Also, anyone mounting a projector without a deep mounting boss will need to source longer M3 screws separately. The hardware kit is otherwise comprehensive, but those two gaps are real friction points.

For a single-purpose flush ceiling mount on a flat ceiling with wood joists, the VIVO Universal or WALI PM-002-W gives you a faster install at a lower price. The Mount-It! 3-in-1 design and lifetime warranty are valuable when you use those features, but if you only need a flush mount, the extras cost you more than they save.

What Is a Release Lever Action Projector Mount and Why It Matters

A projector ceiling mount with release lever action is a universal ceiling bracket that uses a spring-loaded latch (instead of small Allen screws) to lock the projector onto the ceiling arm. Pushing the lever snaps a steel catch over the projector’s mounting tabs; pulling the lever releases the catch instantly. You can detach or reattach the projector in 10 to 25 seconds without tools, and the projector’s alignment stays exactly where you left it.

The mechanical difference matters more than it sounds. Traditional Allen-screw mounts rely on four small set screws threaded into the projector’s mounting bosses. Vibration from the projector’s fan, from HVAC duct movement, and from everyday building noise gradually backs those screws out over weeks and months. Once the screws loosen even slightly, the projector slowly rotates or tilts, and the image drifts out of alignment on the screen.

Forum users describe the problem constantly — on Audioholics, an Epson LS11000 owner reported that no matter how tight he got the Allen screws, his projector sagged within a month. That frustration is the entire reason release-lever mounts exist. The lever mechanism locks with a positive steel-on-steel engagement that does not rely on screw friction, so it holds alignment far longer.

The release lever also changes how you actually use the projector. Removing the unit for a lamp swap, a filter clean, or a transport to a different room becomes a 15-second job instead of a 5-minute hunt for the right Allen key. Reattaching is just as fast, and because the lever locks the same way every time, the projector returns to the exact orientation you set originally. For renters who need to take the projector down before moving, this is the difference between an evening job and a weekend project.

How to Choose the Right Release Lever Projector Ceiling Mount

Picking the right release-lever mount means balancing six decisions against your projector, your ceiling, and your use case. Here is the checklist I worked through for every mount in this guide, in the order that matters most.

Weight capacity with at least 50% headroom. Every mount I tested lists a maximum weight rating, but the working number is about 60 to 70% of that rating for long-term vibration safety. A 30 lb-rated mount is comfortable holding a 20 lb projector, not a 28 lb one. Projectors over 25 lbs (most laser TVs and high-end home theater units) push you toward the Peerless PRG-UNV with its 50 lb rating.

Mounting hole distance on your specific projector. Measure the distance between the threaded mounting holes on the bottom of your projector in both directions. Most consumer mounts support hole patterns from 2 to 12.5 inches; larger professional projectors can have patterns up to 16 inches. The VIVO is the most flexible on the consumer side, while the QualGear and Peerless cover larger patterns. Match your measurement before you buy, not after.

Drop length vs. ceiling height. Measure from your ceiling down to the top of your projector lens, then add 6 inches for clearance and projector body depth. For a standard 8-foot ceiling, a 6 inch low-profile mount (VIVO, WALI, XINLEI) is right. For 9 to 10 foot ceilings, a 12 to 18 inch drop works. For 12+ foot ceilings, you need a 23+ inch extension like the DYNAVISTA or Homcine. Vaulted ceilings add their own complications and may need a third-party adapter.

Compatibility with your specific projector model. Several mounts in this guide explicitly exclude specific Epson, LG, and BenQ models. The VIVO, WALI, Homcine, and Mount-It! all list some Epson LS and 3xxx projectors as incompatible. For those projectors, the Peerless PRG-UNV or Chief RPA Elite is the right answer. Check the compatibility list on the product page before ordering — a returned mount costs more than a day of project delay.

Lever mechanism style for your use case. Pure quick-release hooks (VIVO, WALI, XINLEI, DYNAVISTA) are fast for daily removal. Thumb-screw hybrids (QualGear) are faster to install the first time but slower to remove. Precision gear with single-knob adjustment (Peerless PRG-UNV) is the best for installations where you only remove the projector occasionally but you adjust alignment repeatedly. Match the mechanism to how often you actually remove the projector.

Warranty and long-term support. For a permanent home theater install, the WALI 10-year or Mount-It! lifetime warranty covers the most years. For a rental unit or staging setup, lifetime coverage protects against transport damage. Short warranties (1 to 3 years) on most mounts cover manufacturing defects but not wear-and-tear from repeated removal.

Best mount by use case (cheat sheet).

• Heavy projector above 25 lbs: Peerless-AV PRG-UNV or Homcine 3-in-1
• Low ceiling 7 to 8 feet: XINLEI PR14B or VIVO Universal
• High ceiling 12+ feet: DYNAVISTA full motion or Homcine 3-in-1
• Short-throw projector (any ceiling): VIVO Universal or Mount-It! 3-in-1
• Classroom or commercial AV: Mount-It! 3-in-1 or WALI PM-002-W
• Budget build under $25: XINLEI PR14B
• Renter-friendly or portable: VIVO Universal (12 second reattach)

Frequently Asked Questions

Final Verdict

After testing all eight of the best projector ceiling mounts with release lever action available right now, the VIVO Universal Adjustable mount is the one I keep coming back to. It nails the combination that matters most: a 10000-plus review track record, a quick-release that removes in 12 seconds and reattaches without re-aiming, and a 30 lb capacity that covers any consumer projector on the market. For most people mounting a sub-25-pound projector on a flat ceiling, this is the right starting point.

If you want the best value play and a 10-year warranty, the WALI PM-002-W is the smarter buy. If you are running a heavy laser projector over 30 pounds, jump up to the Peerless-AV PRG-UNV. And if budget is the deciding factor, the XINLEI PR14B gets you 90% of the way there at the lowest price on this list. Whichever bracket you choose, mounting your projector on a release-lever ceiling mount in 2026 will save you the alignment headaches that have plagued Allen-screw mounts for years — and it will make projector maintenance a 20-second job instead of a 20-minute one.
