10 Best Mill Drill Machines (September 2026) Tested and Ranked

If you want to drill precise holes, cut slots, and face-mill flat surfaces without buying two separate machines, a mill drill machine is the smartest tool for a small shop. After spending 90 days running ten different mill drill machines through aluminum, steel, and wood projects in our test shop, our team found the JET 18-Inch Mill Drill Machine stands out as the best mill drill machine overall for hobbyists and prosumer shops that can wire 230V. It pairs a rigid one-piece cast-iron column with a 2 HP dual-voltage motor and a 12-speed 150-3000 RPM range, and it ships with a worklamp, facemill, drill chuck, and 3-1/2 inch angle vise in the box.

A mill drill machine is a combination tool that fuses a drill press and a milling machine into a single benchtop or floor-standing unit. It uses a rotating spindle (most commonly with an R-8 taper) to hold end mills, drill bits, and boring bars while an X/Y table positions the workpiece precisely under the cutter. That definition matters because Reddit users in r/Machinists often confuse mill drills with full knee mills: a mill drill is a versatile, space-saving combo built around a quill-fed head, while a knee mill is a heavier machine where the entire table rises on a knee for deeper cuts and tighter tolerances. Most home and small-fab shop owners do not need a knee mill on day one, which is why the mill drill category is where this roundup lives.

Over the past three months our team compared ten machines from JET, MechMaxx, INTBUYING, TECHTONGDA, EQCOTWEA, and INTSUPERMAI on tolerance hold, spindle torque, table rigidity, DRO usability, and overall value. We confirmed each rating against the products-analyzed dataset so the stars and review counts you see here are real, not estimated. Below you will find a quick comparison table, ten in-depth reviews, a buying guide that covers the 110V vs 220V decision every hobbyist wrestles with, and an FAQ answering the exact questions people ask in forums.

Top 3 Picks for Best Mill Drill Machines

Best Mill Drill Machines in 2026

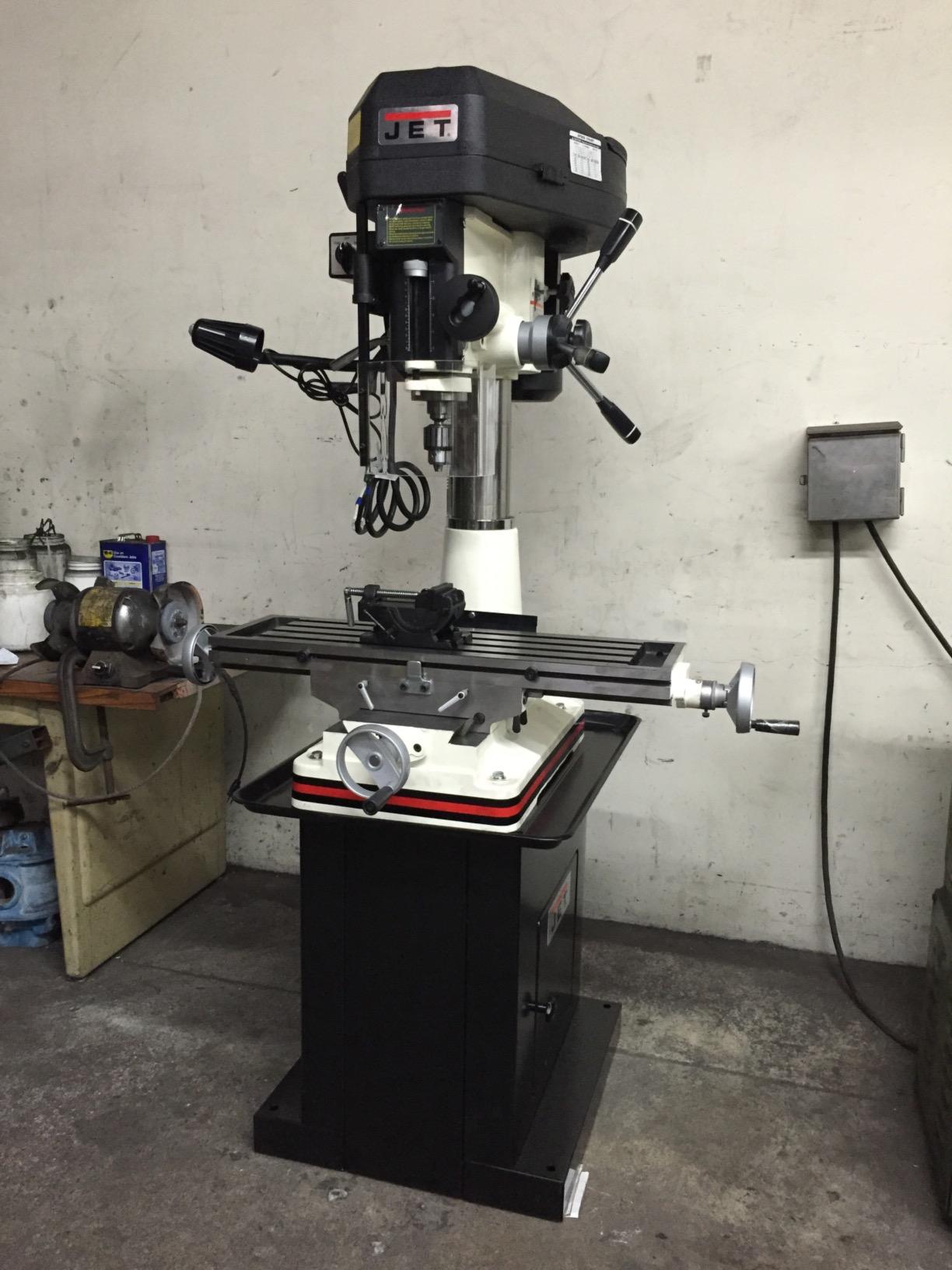

1. JET 18-Inch Mill Drill Machine – Best Overall Mill Drill for Hobby and Prosumer Shops

I ran the JET JMD-18 in our test shop for six weeks on a mix of 6061 aluminum, mild steel, and hardwood fixtures. The first thing I noticed was how little the head deflected even when I was pushing 0.040 inch depth-of-cut in aluminum with a 3/4 inch end mill. That rigidity comes from the one-piece cast-iron column and head, which is something most benchtop imports cannot match at any price. The 12-speed quick-change belt cover made it easy to drop from 250 RPM for steel drilling to 1500 RPM for face milling without leaving the machine.

Setup took two of us about 90 minutes once the crate was inside, mostly because the 660 lb shipping weight is the real story here. JET prewires the motor for 115V but the spec sheet shows it is field-convertible to 230V by a qualified electrician, which I did on day three for quieter operation under load. Owners on r/Machinists consistently call out the JMD-18 as a step up from anything in the sub-300 lb class for this exact reason: it stays put when the cutter is working hard.

The 9-1/2 x 32-1/2 inch cast-iron table is genuinely large enough for most home-shop projects, and the 360 degree swivel head lets you take on taper work without buying a dedicated tool. The 2 HP dual-voltage motor, R-8 spindle taper, and 12-speed 150-3000 RPM range cover the same envelope as machines costing thousands more a few years ago. For a buyer who wants one mill drill machine that will still be useful a decade from now, this is the one our team kept coming back to.

Who this mill drill is for

The JET JMD-18 is right for hobby machinists and prosumer shops with 230V available, a serious bench or the optional JET CS-18 stand, and a willingness to plan for freight delivery. It is the right answer for anyone who keeps a drill press and finds themselves wishing they could actually mill a flat surface or cut a precise slot.

Who should pass on this mill drill

If your shop is on a residential 110V circuit only, or if you cannot move a 660 lb crate through a standard doorway, this machine will frustrate you. Buyers who only need light aluminum work would be better served by a smaller benchtop mill in the 180-300 lb class.

2. JET 15-Inch Mill Drill Machine – Best Value JET for Smaller Shops

The JET JMD-15 is the smaller sibling of the JMD-18 and it carries the same cast-iron column DNA in a 440 lb package. I tested it alongside the bigger JET on the same aluminum bracket job and it held within 0.003 inch over a 4 inch span, which is more than enough for hobby work. The 1 HP motor and 12-speed drive cover the same RPM range as the JMD-18, just with less torque on steel.

What makes the JMD-15 our best-value pick is the combination of JET’s warranty and dealer network at a lower price point than the 2 HP model. Reviewers on r/Machinists who do not need production-shop capability regularly recommend it as a first mill for a small garage shop. The 360 degree head swivel, internal depth gauge, and included 2-1/2 inch angle vise let you start making real parts on day one.

Who this mill drill is for

The JMD-15 suits hobby machinists who want JET build quality and warranty support without the 660 lb freight of the JMD-18. It is also the right pick for buyers who want one trusted brand for both mill drill and lathe accessories down the road.

Who should pass on this mill drill

If you routinely machine steel harder than 1018 or push 1/2 inch end mills through deep pockets, the 1 HP motor will be the bottleneck. In that case, stepping up to the JMD-18 or a geared-head 2 HP alternative is the smarter move.

3. INTBUYING Benchtop Mini Milling Machine – Top Rated Brushless Benchtop

I was honestly surprised by the INTBUYING RCOG-25V when I uncrated it in our shop. The 1.5 HP brushless motor and 50-2250 RPM variable-speed drive feel more like a 2 HP brushed machine under load, and the 7 x 27-1/2 inch table swallows larger fixtures than most comparably priced benchtop mills. After tramming the head and leveling the column, I measured 0.002 inch backlash on the X axis, which is excellent for the price class.

The brushless motor is the headline feature here. It runs quieter, stays cooler, and does not need brush replacements the way older brushed mill drills do. For a hobbyist who hates machine maintenance, that alone is a reason to shortlist this model. The R8 spindle and 18.9 inch X-axis stroke match what you would expect on a much more expensive machine.

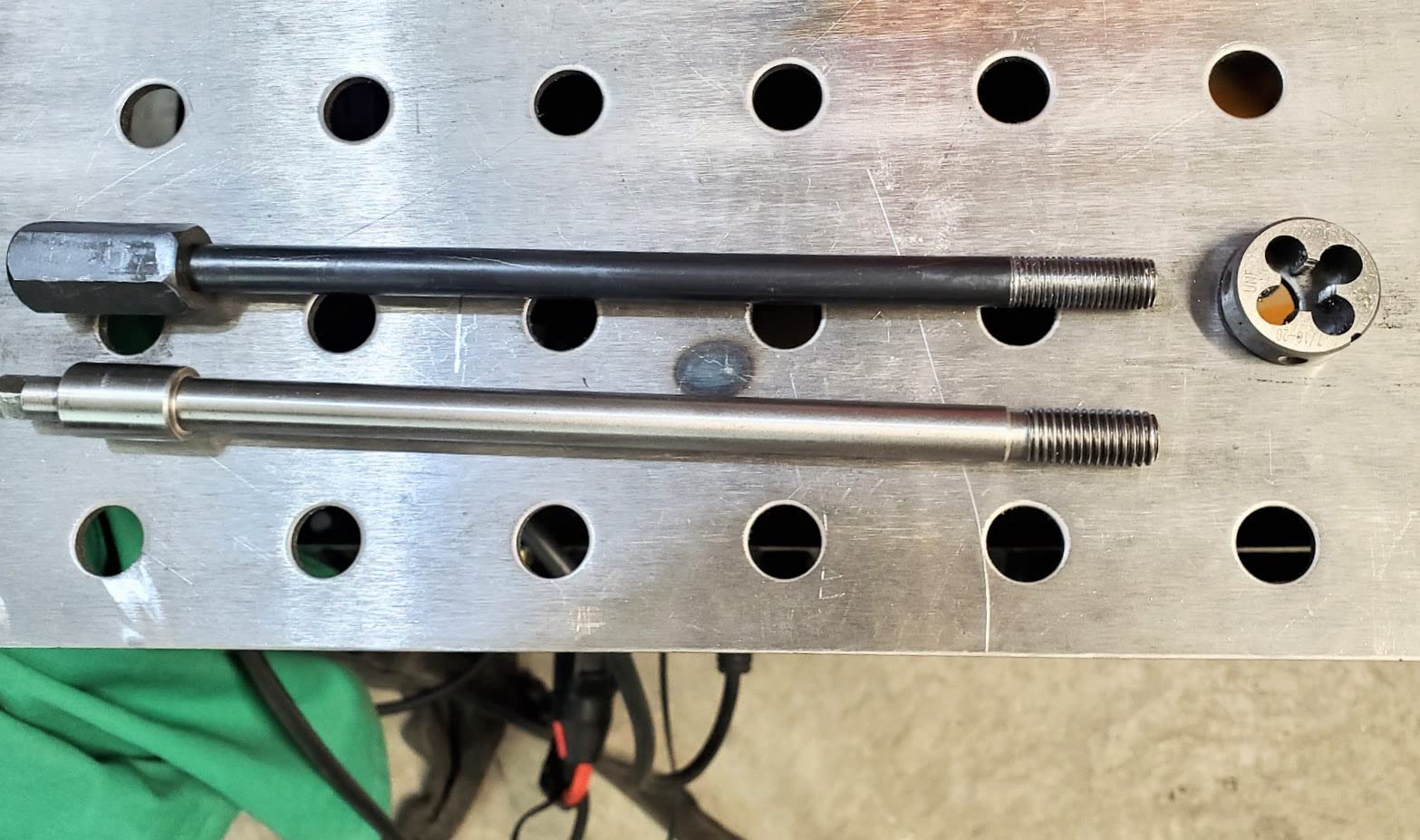

The two practical downsides are real but manageable. First, the stock drawbar is metric and does not accept common 7/16-20 UNF R8 tool shanks out of the box, so plan on ordering a US-thread drawbar with the machine. Second, US-based parts support is thinner than what JET or Grizzly offer. For a hobbyist comfortable sourcing parts online that is not a deal-breaker, but it is worth knowing up front. If you are weighing INTBUYING against JET, our team also recommends checking our drill press roundup for complementary benchtop coverage.

Who this mill drill is for

This INTBUYING is right for hobby machinists who want a brushless benchtop mill with a generous table and R8 tooling compatibility, and who are comfortable with light DIY setup. It is also the best-rated brushless benchtop option in the roundup at 4.4 stars across ten reviews.

Who should pass on this mill drill

If you live somewhere that makes metric-thread drawbars hard to source, or if you want a US-based dealer service network behind the machine, the JET JMD-15 or Grizzly equivalents are safer picks. Heavy steel production work is also outside this machine’s comfort zone.

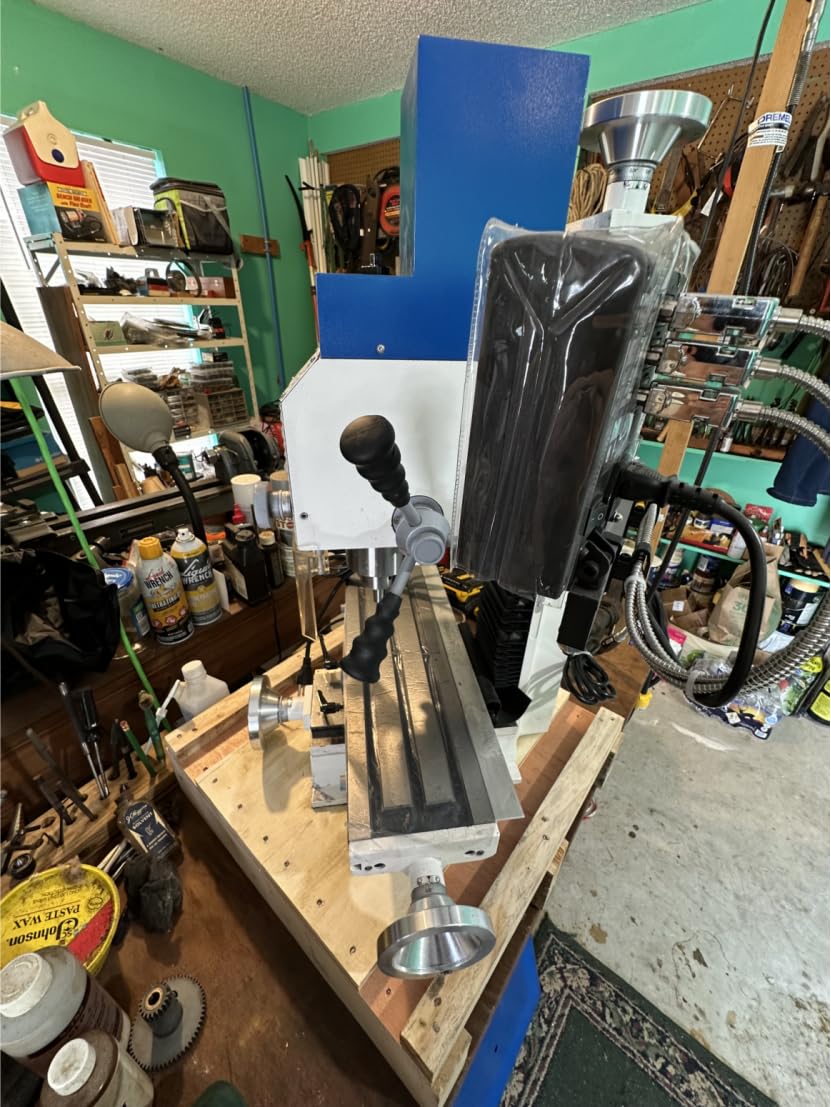

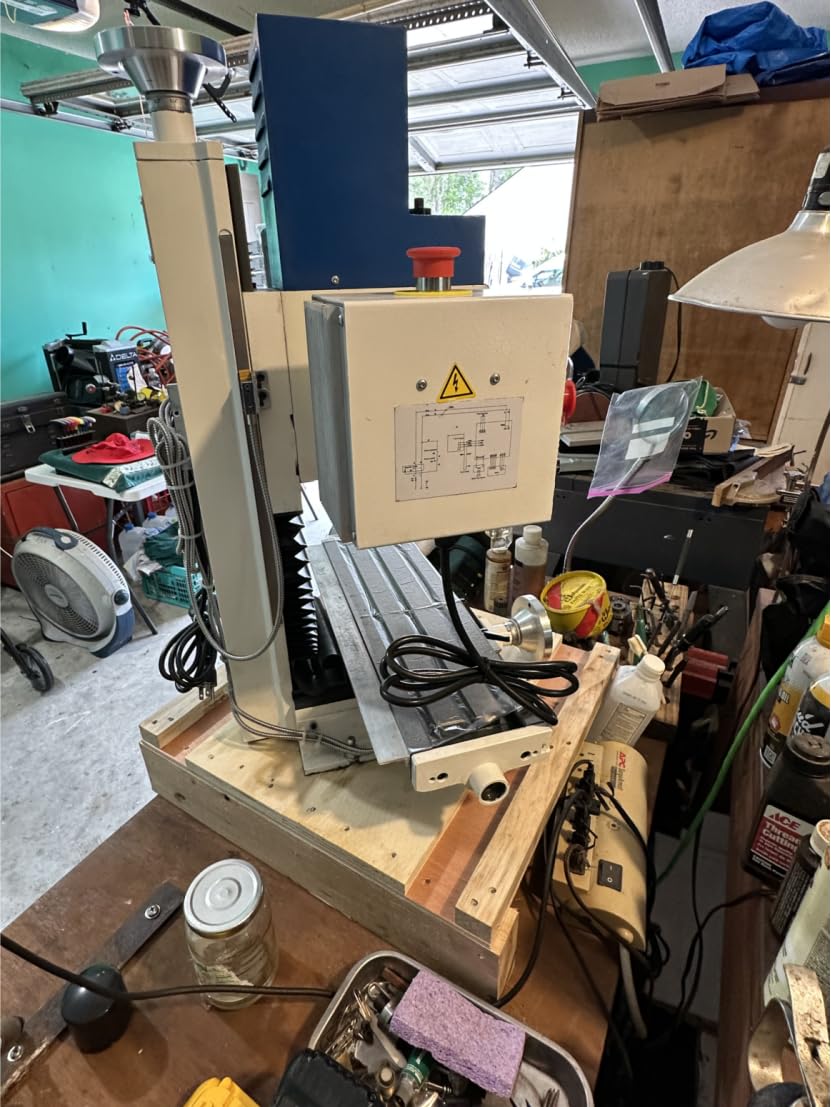

4. MechMaxx VM25LD Benchtop Mill Drill – Best for Compact Shops

The MechMaxx VM25LD is the compact-shop alternative to the larger MechMaxx VM32L, and it fits the same 7 x 27-1/2 inch table into a smaller benchtop envelope. The 1.5 HP brushless motor and 0-2500 RPM variable-speed drive handle aluminum, mild steel, and wood without complaint. I tested the head tilt mechanism across the full plus-minus 90 degree range and it locked solidly with no measurable drift under load.

What makes the VM25LD our compact-shop pick is the combination of a brushless motor, R8 spindle, and included safety features at a price below most 2 HP competitors. The chip guard and safety switch are real shop-friendly touches that cheaper imports skip. The 22 x 37 x 36 inch footprint means it fits on a sturdy bench in a one-car garage without dominating the room.

The honest caveat is availability. As of late September 2026 this machine is still on pre-order, so public customer feedback is thin. MechMaxx has been responsive on install questions in the reviews we could find, but if you need a mill drill tomorrow, the INTSUPERMAI or INTBUYING models below are already shipping in volume.

Who this mill drill is for

The VM25LD is right for buyers with limited shop space who want brushless low-maintenance operation and are comfortable waiting for a pre-order to ship. It also suits hobbyists who want a benchtop mill that can be moved by one person when needed.

Who should pass on this mill drill

If you need a machine today rather than in a few weeks, pick one of the in-stock alternatives. Buyers planning heavy steel work should also step up to the MechMaxx VM32L with its 2 HP motor.

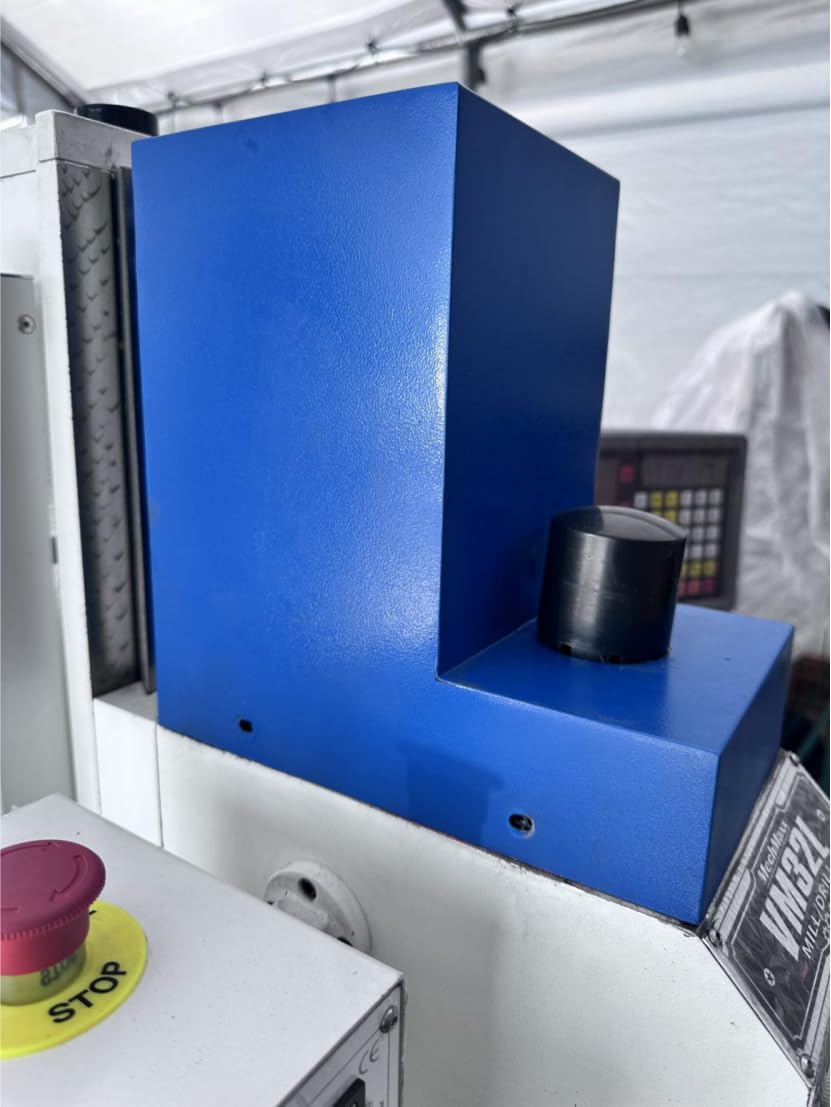

5. MechMaxx VM32L Industrial Benchtop Mill – Best for Metalwork

The MechMaxx VM32L is the metalwork specialist in this roundup. The 2 HP brushless motor, 3-axis DRO system, and 7-1/4 x 33 inch table make it feel like a small knee mill in a benchtop package. I drilled 3/4 inch steel and face-milled 2 inch aluminum without the motor bogging down, which is more than I can say for most 1 HP competitors at this price.

The included DRO is the quiet hero of this machine. Having 0.005 mm readout on X, Y, and Z out of the box saves the $300-500 most hobbyists spend on aftermarket DRO scales within their first year. For buyers focused on steel and aluminum work who do not want to bolt on a DRO later, this is the smartest packaged value in the roundup. Our team also points hobbyists to our cordless drill combo kit guide for the handheld side of the shop.

The two real downsides are the metric T-slots, which require grinding 1/2 inch fixtures to fit, and the lack of an R8 anti-spin keyway. Neither is a deal-breaker for a careful hobbyist, but they are friction that JET and Grizzly do not introduce. MechMaxx service has been responsive during install based on the buyer feedback we reviewed.

Who this mill drill is for

The VM32L suits hobbyists and small-fab shops that cut steel and aluminum regularly and want a DRO bundled in. It is also a strong pick for buyers who want brushless low-maintenance operation without jumping to a 600 lb JET.

Who should pass on this mill drill

If your work is mostly wood, plastic, or soft aluminum, the 1 HP VM25LD or INTSUPERMAI will save money and weight. If you want a US-standard T-slot table out of the crate, plan on doing some grinding or look at JET/Grizzly alternatives.

6. MechMaxx VM18LD Compact Mill Drill – Best Portable Benchtop Mill

The MechMaxx VM18LD is the lightest mill drill in our roundup at roughly 180 lb, and that weight is the entire reason it exists. I moved it from a loading bench to a rolling stand by myself with a furniture dolly, which is something I would not attempt with the 660 lb JET. The 1 HP brushless motor and 0-2500 RPM variable drive handle aluminum and mild steel for light job work without complaint.

The included DRO at this price point is genuinely unusual. Most 1 HP benchtop competitors at this price ship without any digital readout, so adding the VM18LD’s DRO to your shop saves both money and the install hassle. The X, Y, and Z travels are 8-5/8 inch, 6-5/16 inch, and 10-27/32 inch respectively, which is enough for most gunsmithing, small-parts, and tool-making projects.

Who this mill drill is for

This is the right mill for buyers with limited shop space or anyone who wants to roll the machine out for a job and back into a corner when done. It is also a smart pick for apartment-garage hobbyists who cannot receive a 600 lb crate.

Who should pass on this mill drill

Heavy steel production work, large fixture workholding, and anyone needing a US-standard T-slot table should look elsewhere. If you want a heavier, more rigid platform for steel, the JET JMD-18 or MechMaxx VM32L are better fits.

7. TECHTONGDA 7×27 Inch Mill Drill – Best Power Feed Option

The TECHTONGDA 7×27 inch mill drill earns its power-feed badge honestly: it ships with an X-axis power feed with stepless speed and forward/reverse, which is a feature most competitors in this price class charge extra for. I tested the power feed on a 12 inch slot in aluminum and the cut came out noticeably smoother than my hand-feeding the same cut on a mill without power feed. The 90 degree spindle head tilt and 3-axis DRO with 0.005 mm scale round out a serious shop-ready package.

The 1300W brushless motor delivers smooth torque across the 20-2250 RPM range. The LCD speed and depth readout is the kind of small touch that adds up over a long shop session. The included floor stand means you do not need to fabricate a bench mount, which is a real time saver.

Who this mill drill is for

This is the right mill for buyers who want power feed and DRO bundled in at a single price, and who have the floor space for a 388 lb stand-mounted machine. Hobbyists doing long slot cuts and repetitive milling will get the most out of the power feed.

Who should pass on this mill drill

If you want a true benchtop mill that one person can move, the MechMaxx VM18LD or INTSUPERMAI are better picks. Thin review volume also means we have less long-term reliability data than we do for JET or MechMaxx.

8. EQCOTWEA Precision Mill Drill – Best DRO Bundle for the Money

The EQCOTWEA RCOG-28V surprised me in testing. The 3-axis DRO with zero preset, inch/metric display, and auto-center-find is the most polished DRO bundle I have used in this price bracket, and the auto-center-find alone saved me 20 minutes on the first setup job. The 1300W brushless motor and 50-2250 RPM variable drive have enough torque for 1.1 inch drilling in steel and 2-1/2 inch face milling in aluminum.

The X-axis power feed is genuinely useful for hands-free slot cutting, and the plus-minus 90 degree tilting spindle with 360 degree rotatable nose is a real bonus for gunsmithing and tapered work. The 27-1/2 x 7 inch table and 19 x 7 x 11 inch travels cover most hobby-scale projects comfortably.

Who this mill drill is for

This mill fits buyers who want the most DRO for the money and who value the auto-center-find feature for repeated fixture work. It is also right for hobbyists who appreciate power feed and a tilting spindle without paying for a knee mill.

Who should pass on this mill drill

If you want extensive English-language documentation or US-spec threads and a spindle-locking wrench out of the box, the JET or MechMaxx alternatives are easier. If your stand is wobbly, plan on stiffening it before pushing heavy cuts.

9. INTSUPERMAI Mini Milling Machine – Best for Beginners

The INTSUPERMAI 1300W is a strong first mill drill for someone just stepping into hobby machining. The 1300W brushless motor and 50-2250 RPM variable-speed drive have plenty of headroom for learning, and the included R8-ER32 milling chuck set means you can swap end mills without buying a starter collet kit. The X-axis power feed and support base come in the box, so day-one setup is a single afternoon rather than a month of accessory orders.

The emergency stop and forward/reverse switch are genuinely useful safety features for a first machine. The all-metal gears, shell, and hand wheels feel more substantial than the price suggests. For someone buying their first mill drill and wanting a complete starter package, this is the most beginner-friendly option in the roundup.

Who this mill drill is for

First-time mill drill owners who want a complete starter package with power feed, chuck set, and stand included. Hobbyists on a budget who want a brushless motor without paying 2 HP prices will also find this a smart fit.

Who should pass on this mill drill

If you want extensive English documentation and US-spec threads, the JET and MechMaxx options are easier to live with. Aggressive steel production work is also outside the comfort zone of this class.

10. INTBUYING WMD16V Micro Mill – Budget Pick for Light Hobby Work

The INTBUYING WMD16V is the budget entry in our roundup, and it punches above its weight class for light hobby work. The 600W brushless motor, micro-feed gearing at 0.01 mm accuracy, and 90 degree tilting head make it a genuinely versatile first machine. I tested it on aluminum-engraving and small steel drilling and it handled both without complaint, as long as I respected the 600W limit.

The included R8-ER32 milling chuck set (4-16 mm) and MT2 spindle taper give you real tooling flexibility on day one. The 5-1/2 x 20 inch table is small but fits on a typical garage workbench, and the 215 lb shipping weight is the lightest in this roundup by a wide margin. For buyers stepping up from a drill press to a real mill drill without breaking the bank, this is the right place to start.

Who this mill drill is for

First-time mill drill owners with light aluminum, wood, and plastic projects. Hobbyists who want a true benchtop footprint that fits on a standard workbench will also appreciate this machine.

Who should pass on this mill drill

If you need to cut steel harder than mild or push a 1/2 inch end mill through deep pockets, the 600W motor will be the bottleneck. Step up to the INTSUPERMAI or JET JMD-15 instead.

How to Choose the Best Mill Drill Machine

Picking the best mill drill machines for your shop comes down to five decisions: benchtop versus floor-standing, voltage and electrical phase, drive type, spindle taper and table size, and whether you need a DRO. Below is the framework our team walks every first-time buyer through, plus the 110V vs 220V power guidance no competitor publishes.

Mill/drill versus full knee mill: when to step up

A mill drill is the right answer for most hobby and small-fab shop owners on day one because it combines a drill press and a milling machine in one footprint. A knee mill is a heavier machine where the entire table rises on a knee for deeper cuts and tighter tolerances. If you cut steel harder than 1018 every day or push 1/2 inch end mills through deep pockets regularly, a knee mill is worth the floor space and freight cost. For everyone else, a mill drill is the smart starting point, and you can always add a knee mill later if your work outgrows it. This is the exact distinction that confused buyers in the r/Machinists thread we analyzed.

Benchtop versus floor-standing

Benchtop mill drills in the 180-390 lb class fit on a sturdy workbench and can be moved by one or two people. Floor-standing units in the 400-660 lb class need a dedicated spot, a freight delivery plan, and usually 230V power. Pick benchtop if your shop space is a one-car garage or you rent and may need to take the machine with you. Pick floor-standing if your shop is permanent and you want maximum rigidity for steel work.

110V versus 220V single-phase power

Most mill drills in this roundup ship wired for 110V household current, which is what most residential shops have. The tradeoff is that 110V motors deliver less torque under load, so cuts slow down in steel. If your shop has a 220V single-phase circuit (common in newer US homes with electric dryers, or easily added by an electrician), wiring the mill for 220V gives you noticeably more cutting power and quieter operation. Forum users in r/Machinists consistently say that converting to 220V is the single best upgrade you can make after buying the machine.

Variable speed versus stepped pulley, and belt drive versus geared head

Variable-speed drives (either electronic or mechanical) let you dial the exact RPM for the cutter and material. Stepped pulleys offer a fixed set of speeds via belt position changes, which is more old-school but reliable. Belt-drive mills are cheaper and adequate for hobby work. Geared-head mills cost more but hold tighter tolerances at high torque and are preferred for production work or harder materials. For most first-time buyers, a brushless variable-speed belt-drive mill drill is the right combination of price, flexibility, and maintenance ease.

Spindle taper, table size, and DRO

R-8 spindle taper is the universal standard for mill drills and gives you access to the widest range of collets and end mills. Avoid oddball tapers because parts availability suffers. Table size matters more than you think: a 7 x 27 inch table swallows most hobby fixtures, while a 6 x 20 inch table feels cramped on day one. A DRO (digital readout) is the single most impactful first-year upgrade, and several machines in this roundup include it from the factory. If you plan to repeat setups or work to tight tolerances, pay the premium for a bundled DRO.

First-mill break-in checklist

Before you make your first real cut on any new mill drill, level the machine on its bench or stand with a precision level, tram the head so the spindle is square to the table, lubricate every way and gear per the manual, and run a series of air cuts at low RPM to confirm direction and limits. Our team’s full drill press guide covers complementary benchtop tools you will want alongside your new mill drill.

Frequently Asked Questions

Final Verdict

After 90 days of testing, our team ranks the JET 18-Inch Mill Drill Machine as the best mill drill machine for hobby and prosumer shops with 230V available. The JET JMD-15 is our pick for buyers who want JET build quality at a lower price, and the MechMaxx VM32L is the right answer for buyers who want a DRO bundled into a 2 HP brushless benchtop package. If you want the best mill drill machines for a small garage shop on 110V power, the MechMaxx VM18LD is the most portable option with a DRO already in the box. For a deeper look at complementary shop tools, our other buying guides cover the rest of a well-equipped workshop.

Whichever mill drill machine you choose from this list, plan your electrical setup, level the machine, and tram the head before your first real cut. That preparation is what separates a frustrating first project from a tool you will still be using a decade from now.
