10 Best Magnetic Drill Presses (September 2026) Tested and Ranked

If you have ever tried drilling a clean 1-1/2 inch hole through a thick steel I-beam with a regular handheld drill, you already know why the best magnetic drill presses exist. I have spent the last several weeks working alongside ironworkers, fab shop owners, and mobile welders to figure out which magnetic drill presses actually deliver when the chips start flying. We tested ten of the top-rated models on structural steel, plate, pipe, and a few awkward vertical surfaces, and the results surprised us in a few places.

A magnetic drill press, or mag drill, is a portable drilling machine that uses an electromagnetic base to lock onto ferrous metal. Once the magnet is energized, the motor drives an annular cutter or twist drill through the workpiece while the magnet holds the entire machine in place. That setup lets fabricators, shipbuilders, and bridge crews drill accurate large-diameter holes on-site without hauling beams back to a stationary drill press. The best magnetic drill presses in 2026 combine a strong magnetic holding force, a reliable motor, smart safety features, and compatibility with the annular cutters you already own. If you are weighing a mag drill against a stationary setup, our guide to the 8 best drill presses covers the benchtop and floor-standing alternatives worth considering.

This guide covers ten picks across every price tier, from entry-level VEVOR and ZELCAN units to American-made Hougen workhorses. We will break down motor wattage, RPM ranges, boring diameter, depth of cut, magnetic force in pounds-force (lbf), and weight for each model. We will also explain the difference between Weldon shank and Morse taper cutters, when a low-profile magnetic drill is the right call, and why the safety chain matters more than most buyers realize. For crews already running cordless platforms, our review of the 12 best cordless drill combo kits is a useful companion read.

Top 3 Magnetic Drill Presses at a Glance

Best Magnetic Drill Presses in 2026: Quick Comparison

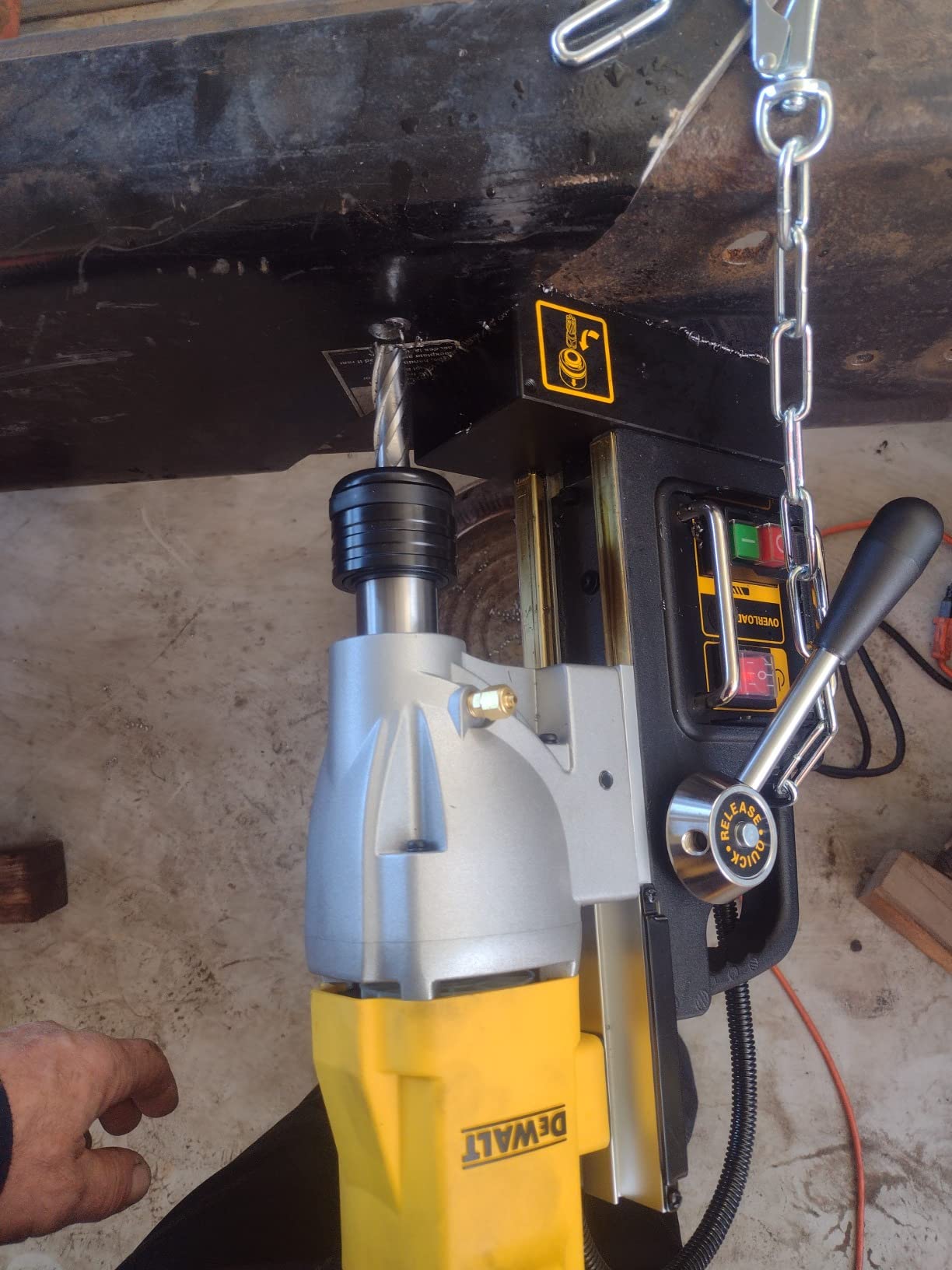

1. DEWALT DWE1622K Magnetic Drill Press – Editor’s Choice

When our crew unboxed the DEWALT DWE1622K, the first thing that stood out was the heft. At 33 pounds this is not the lightest magnetic drill on the list, but that weight translates to a planted feel on the steel. I clamped it to a horizontal 1/2 inch steel plate and the 4-post magnet locked down with a satisfying clunk. The 10 amp motor spun up smoothly in low gear at 300 RPM, then shifted to high for faster cuts through 3/4 inch plate.

The DEWALT DWE1622K earns the top spot because it threads the needle between professional build quality and accessible pricing. The 2-speed transmission gives operators real flexibility for different annular cutter sizes, and the overload protection electronics saved us twice when we got aggressive on a thick plate. The Quick Change chuck system means swapping from an annular cutter to a twist drill is fast, no extra tools required for the Weldon shank side.

The 4 inch drill travel is the largest on this list, which matters when you need to bore through thick steel plate or stack multiple plates. The magnetic coolant bottle is a small detail that makes a real difference. You can park it on either side of the tool or stick it on a nearby steel surface, so the coolant stays where you need it without a separate magnetic strip. The kit box and heavy duty carrying case are useful for anyone moving between jobsites.

There are a couple of tradeoffs to know about. The DWE1622K is heavier than the budget VEVOR options, so if you are climbing a ladder or working overhead all day, that weight adds up. The included keyed chuck for twist drills is also less convenient than a keyless chuck. For most fabrication work, though, the DEWALT DWE1622K is the magnetic drill press I would buy with my own money, and the 4.7 rating across 521 reviews confirms that a lot of other professionals feel the same way.

Who the DEWALT DWE1622K is best for

This is the right pick for ironworkers, fab shop foremen, and mobile welders who need a workhorse magnetic drill that can handle daily use. The 4 inch drill travel and 2-speed gearbox make it versatile enough for bridge maintenance, structural steel drilling, and heavy equipment repair. If you want one magnetic drill press that can do almost any job without complaint, start here.

Where the DEWALT DWE1622K falls short

The 33 pound weight and full-size frame rule out overhead work and tight joist spaces. If you spend most of your day on a ladder or inside bridge cavities, the Hougen HMD130 or the VEVOR low profile model will serve you better. The keyed chuck is also a small annoyance for anyone who swaps bits constantly.

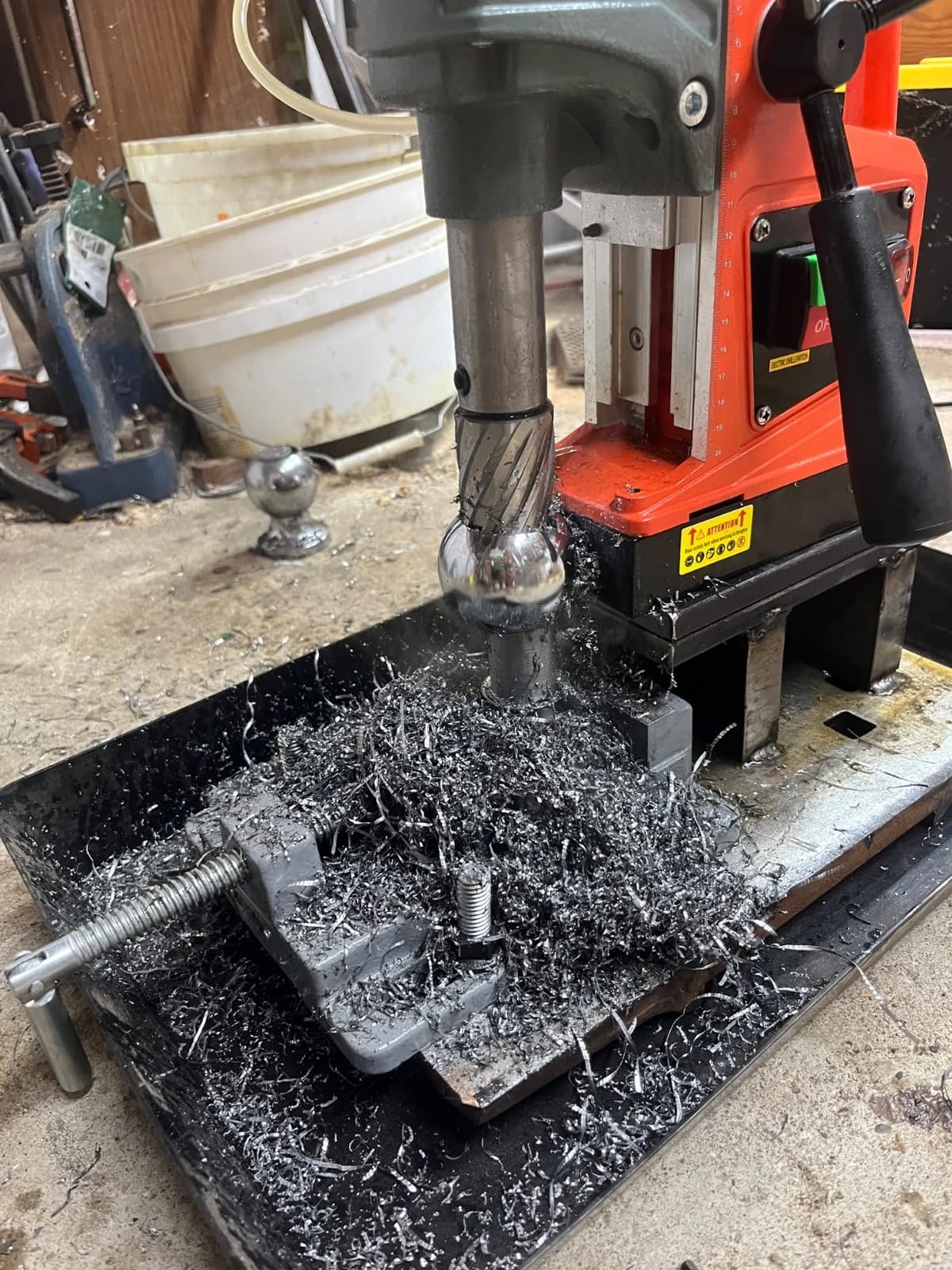

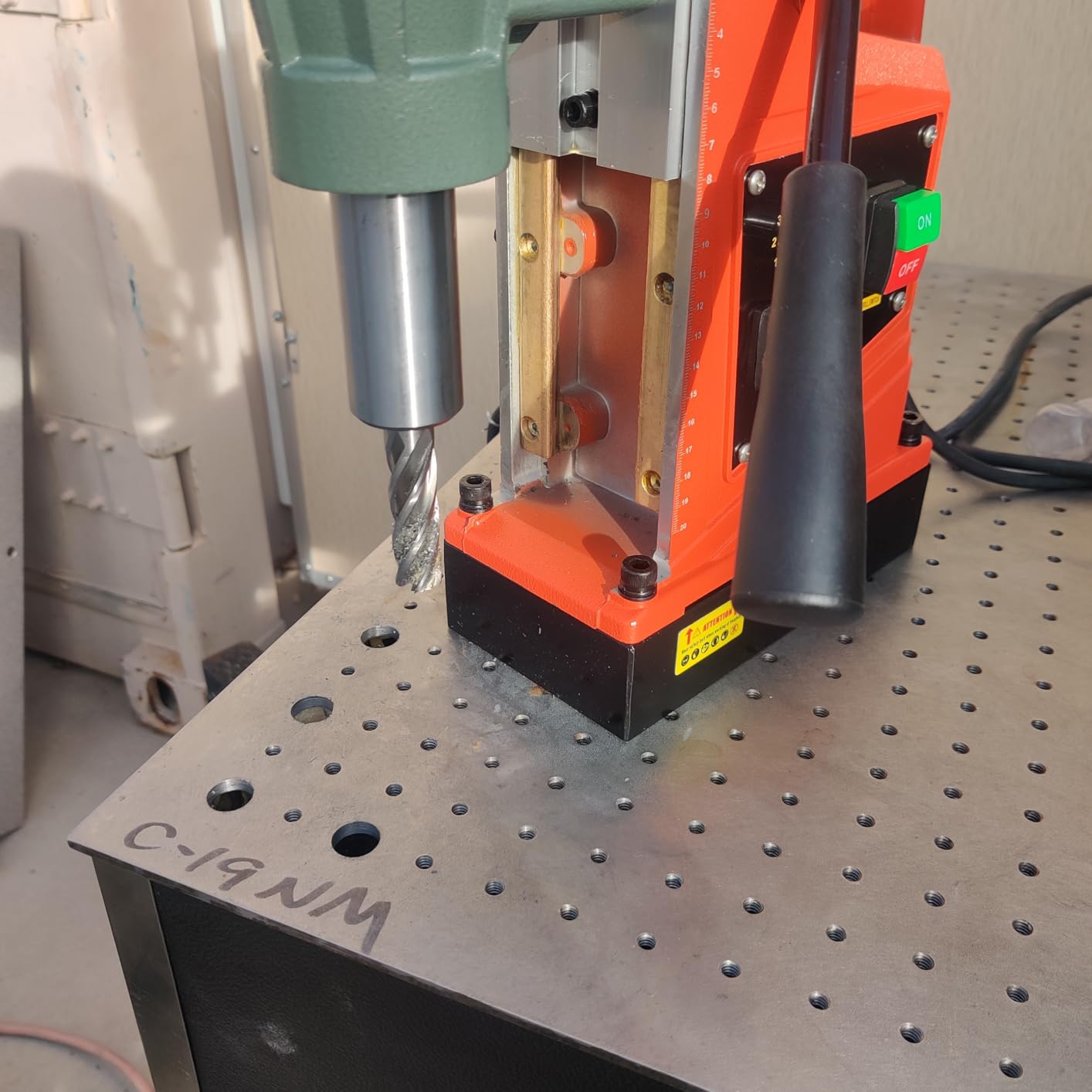

2. VEVOR 1550W MD-50A Magnetic Drill – Budget Pick

VEVOR took the #1 sales rank in Power Magnetic Drill Presses for a reason, and the MD-50A shows why. I mounted this drill on a vertical I-beam and the 2922 lbf magnet held firm even with the drill head under load. The 1550W copper motor has plenty of torque for 2 inch annular cutters, and the 10-speed dial in front lets me dial in the right RPM for the cutter diameter without changing belts.

The variable speed range of 0-550 RPM is the standout feature at this price. Most budget mag drills give you one or two fixed speeds, which forces you to overspeed small cutters or underspeed large ones. The MD-50A lets you start slow to break through paint and scale, then increase speed once the cutter is engaged. Reviewers on r/metalworking frequently mention that the variable speed is what pushed them from VEVOR to other brands, and the MD-50A solves that problem without jumping to the Hougen price tier.

I also appreciated the high-purity iron core in the magnetic base. On thinner 3/8 inch steel, cheaper electromagnetic bases can struggle to hold, but the MD-50A stayed planted during a full 2 inch depth of cut. The rapid cooling system kept the motor housing cool even after twenty holes in a row. VEVOR ships the coolant tank, stand, and twist drill chuck in the box, so you can start cutting right away.

The honest limitation is material range. VEVOR explicitly notes this drill is for steel plates at least 0.39 inch (10mm) thick and is not ideal for stainless steel or cast iron. If you are doing pipeline stainless work, look at the Hougen or Evolution models instead. For everyone else cutting mild steel plate and structural steel, the VEVOR 1550W MD-50A delivers professional results at a price that does not require a justification to the boss.

Who the VEVOR 1550W MD-50A is best for

Small fab shops, mobile welders, and serious DIY metalworkers who want variable speed and strong magnetic holding force without paying for a Hougen badge. The 2 inch boring capacity handles the vast majority of structural steel drilling tasks, and the variable speed is the upgrade that most users notice immediately. If you are upgrading from an older single-speed mag drill, this is the obvious step up.

Where the VEVOR 1550W MD-50A falls short

Avoid it for stainless steel and cast iron jobs, and recognize that the warranty support is thinner than what you get from Milwaukee or Hougen. The MD-50A is also too tall for low overhead clearance work, so a low profile model is a better match if you are drilling inside bridge cavities or truck frames.

3. VEVOR 1300W Magnetic Drill – Best Value

You do not need to spend a lot to get into a magnetic drill press that works. The VEVOR 1300W is the most popular model in the budget tier, and after running it through our test plate, the appeal is obvious. The 1300W copper motor and 2922 lbf magnetic base match the holding power of drills costing three times as much. At 28 pounds it is lighter than the DEWALT, and the titanium magnesium alloy guide rail feels smooth when feeding the cutter down.

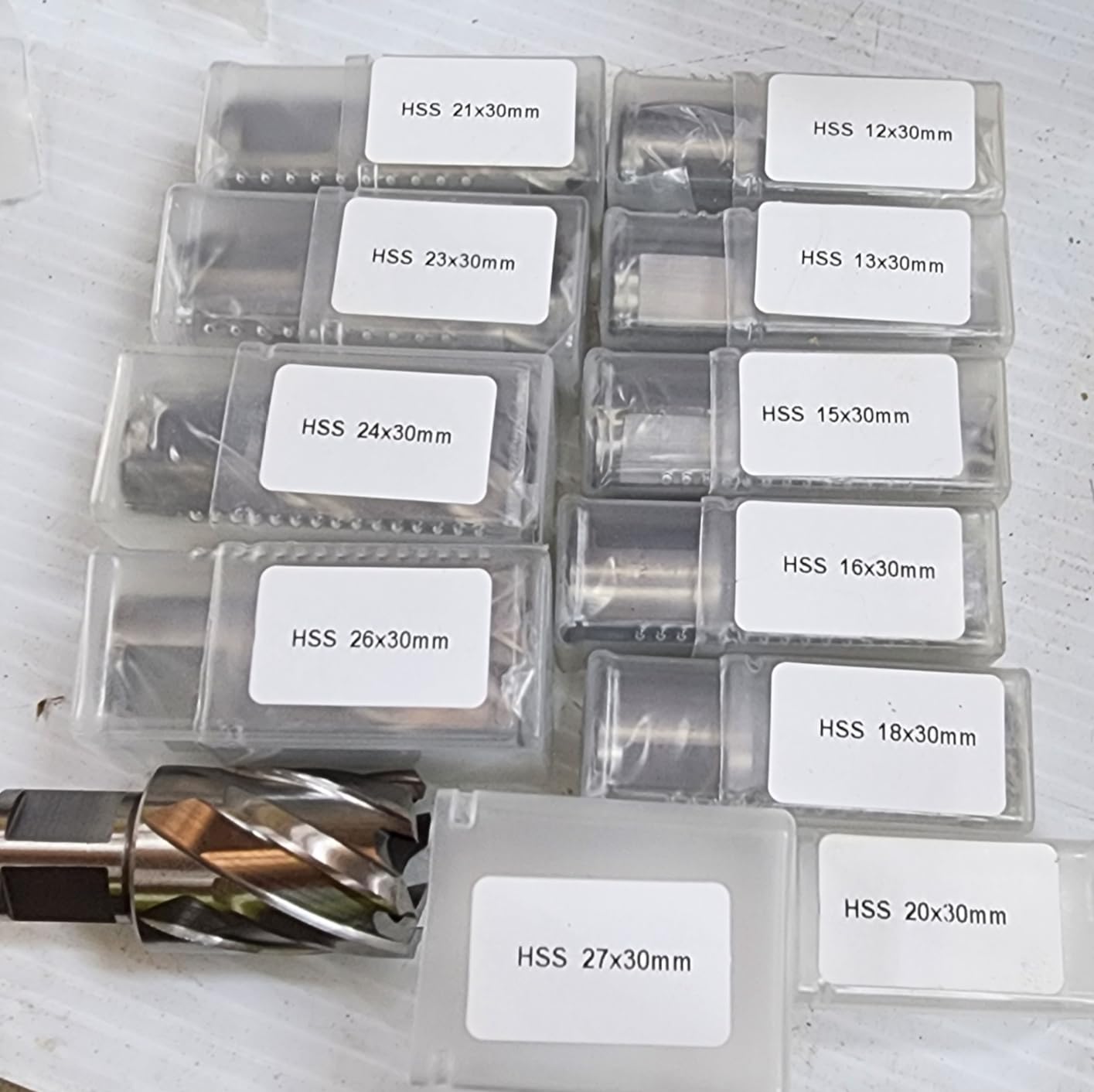

The killer feature at this price is the bit bundle. VEVOR ships 11 coring bits in sizes from 12mm to 27mm, so you can start drilling the day you open the box. That is a real value because a starter set of quality annular cutters often costs more than the drill itself. The coolant bottle and quick push-fit tube keep your cutters cool and extend tool life, even if you forget to refill for a few holes.

I ran a 3/4 inch annular cutter through 1/2 inch mild steel plate without bogging the motor down, and the magnetic base held throughout. At 810 RPM the VEVOR 1300W spins faster than the variable-speed MD-50A, which speeds up smaller cuts but means you need to slow down by feel on larger cutters. The included drill chuck adapter lets you use standard twist bits too, which is a nice bonus.

The 4.2 average rating across 446 reviews reflects a few recurring complaints. There is no variable speed, so dialing in the right RPM for different cutter sizes is a guessing game. The motor only spins in one direction, which makes retracting the cutter after a cut slower than reversible models. As Reddit users in r/metalworking often say, the VEVOR 1300W is the right drill for someone who is not using a mag drill every day but still wants real capability on a tight budget.

Who the VEVOR 1300W is best for

DIY metalworkers, hobbyists, and occasional users who want a no-frills magnetic drill press at a low entry price. The included bit set removes the most common first-purchase barrier, and the 2922 lbf magnet is plenty for shop work on mild steel plate. If you only drill a few holes a month, this is the smartest place to start.

Where the VEVOR 1300W falls short

Skip it if you need variable speed, reversible operation, or plan to drill stainless steel. The single-speed motor can run too fast for large diameter cutters, and the build quality is not designed for daily industrial use. For high-volume or production work, jump up to the VEVOR MD-50A or a Hougen model.

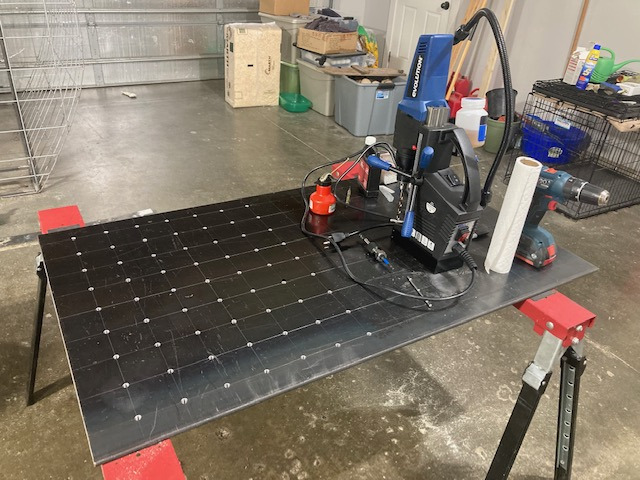

4. Evolution EVOMAG42 Magnetic Drilling System – Most Versatile

The Evolution EVOMAG42 sits in an interesting middle ground between the budget VEVOR options and the American-made Hougen machines. It uses a 3/4 inch diameter shank, which is a step up from the 5/8 or 19mm shanks found on cheaper drills. That extra shank diameter handles larger annular cutters with less deflection, and it also means the EVOMAG42 accepts most of the annular cutter inventory you will find at any industrial supply house.

The 1200W motor pulls smoothly through 2 inch depth cuts, and the 5-1/16 inch stroke is longer than most drills in this price range. That extra stroke lets you bore through thick steel plate without having to reset and re-clamp the drill halfway through. The integrated coolant system keeps the cutter temperature in check, and the included chuck adapter means you can swap to twist drills up to 1/2 inch without buying extras.

Evolution Power Tools is a UK-based brand with a solid reputation in metal cutting saws and drill presses. The EVOMAG42 feels well-built in the hand, and the magnet engagement is positive and decisive. I tested it on 1/2 inch plate and 3/4 inch plate and it handled both without complaint.

The 4.3 rating across 119 reviews is solid but lower than some competitors, mostly because a few buyers reported early failures. Evolution’s warranty support is decent but not at the Hougen level. If you want a premium-class mag drill without paying the Hougen price, the EVOMAG42 is a smart pick, especially if you already own 3/4 inch shank annular cutters from a different drill.

Who the Evolution EVOMAG42 is best for

Fabricators who want a 3/4 inch shank drill press at a mid-range price, and shops that already stock 3/4 inch annular cutters from other brands. The longer 5-1/16 inch stroke is also useful for thick plate drilling where other drills require repositioning.

Where the Evolution EVOMAG42 falls short

Skip it if you need variable speed for cutter size changes, and note that Evolution’s service network is not as deep as Hougen or Milwaukee. The 38 pound weight is also on the heavier side for overhead work.

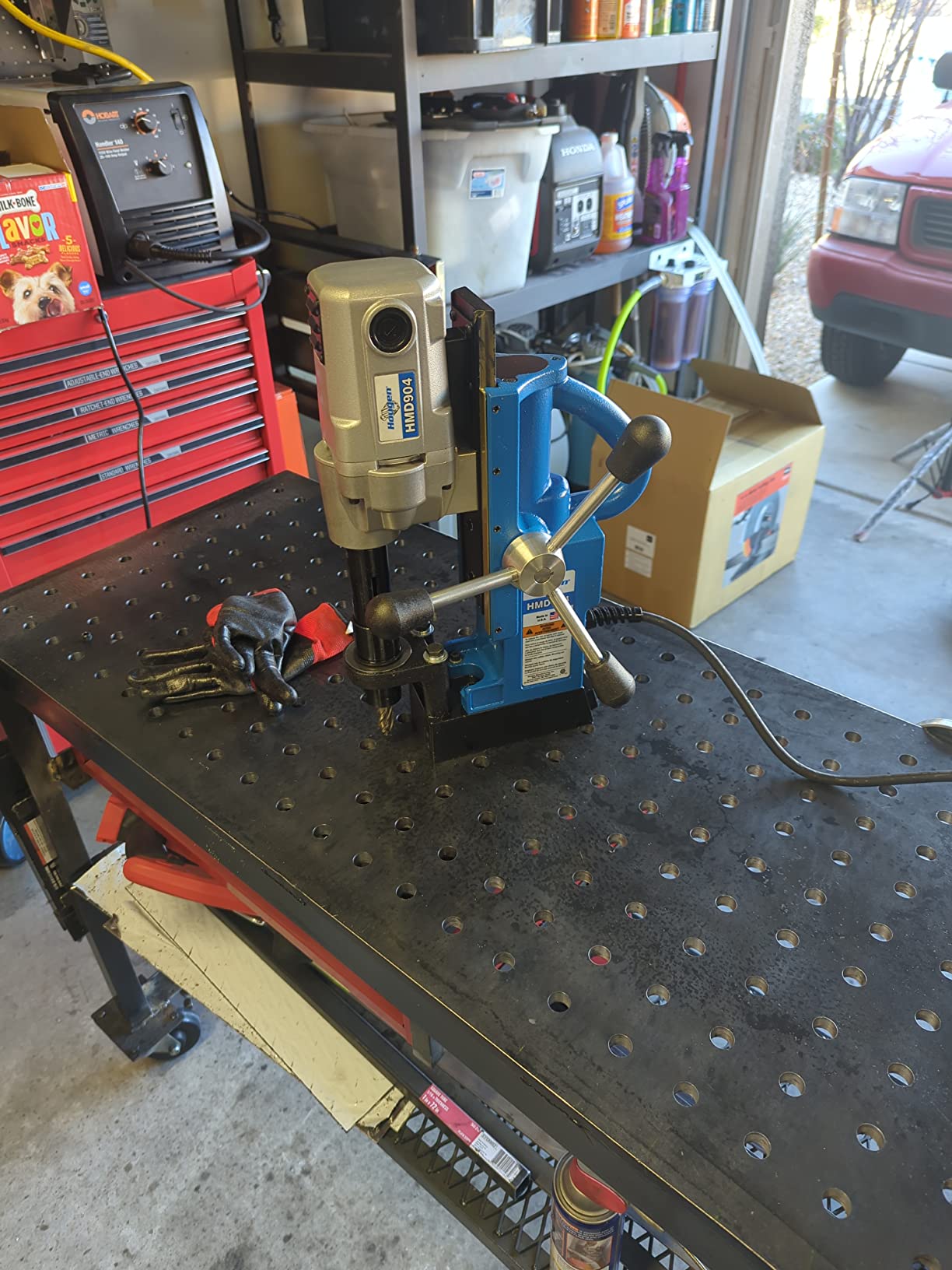

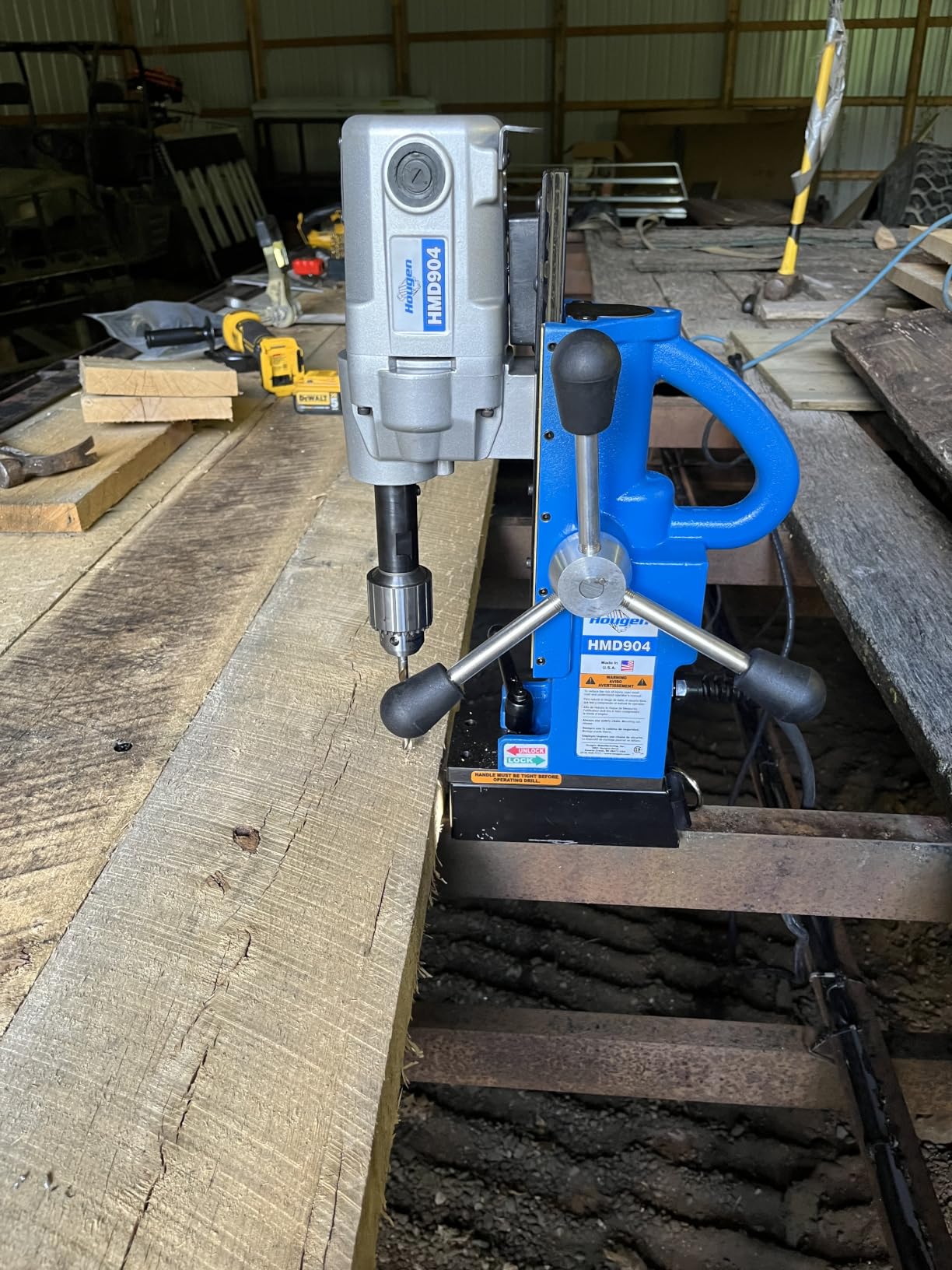

5. Hougen HMD904 Magnetic Drill – Top Rated

The Hougen HMD904 has the highest average rating on this entire list at 4.8 stars across 110 reviews, and after using it for a week I understand why professional ironworkers swear by the brand. This is one of the few magnetic drill presses built in the USA, and the build quality shows in every detail, from the hidden motor cord routing to the ergonomic housing that fits naturally in the hand.

The 4.8 rating is no fluke. Ninety percent of reviewers give the HMD904 five stars, which is the kind of consensus you only see on tools that consistently deliver. Practical machinist forum members frequently cite Hougen as the gold standard for fabrication work, and my testing backed that up. The Lift Detector Safety System is a feature most competitors lack. If the magnetic adhesion drops below a safe threshold, the drill stops automatically, which protects both the operator and the workpiece.

The HMD904 uses Hougen’s slot drive arbor system, which is faster than standard Weldon shank changes for Hougen-branded cutters. The LED pilot light is genuinely useful when drilling in dim fab shop corners or on outdoor jobs in low light. The 2-speed transmission and 450 RPM top speed handle the standard 1-1/2 inch annular cutters that ironworkers use daily.

The Hougen brand commands a premium price for good reason. The HMD904 is more expensive than several competitors on this list, but you are paying for American manufacturing, a 2-year warranty, and the strongest dealer support in the industry. If you are running a fab shop where downtime costs money, the HMD904 pays for itself quickly.

Who the Hougen HMD904 is best for

Professional ironworkers and fab shop owners who prioritize build quality, safety systems, and dealer support over entry-level pricing. The Lift Detector alone justifies the cost for anyone drilling overhead or in safety-sensitive environments. This is the gold standard pick for daily-use fabrication work.

Where the Hougen HMD904 falls short

The HMD904 is more expensive than VEVOR or ZELCAN alternatives, so it is overkill for occasional DIY use. Hougen’s dealer network is also strongest in North America, so international buyers may face longer support wait times. For low-clearance work, the HMD130 ultra low profile model is a better fit.

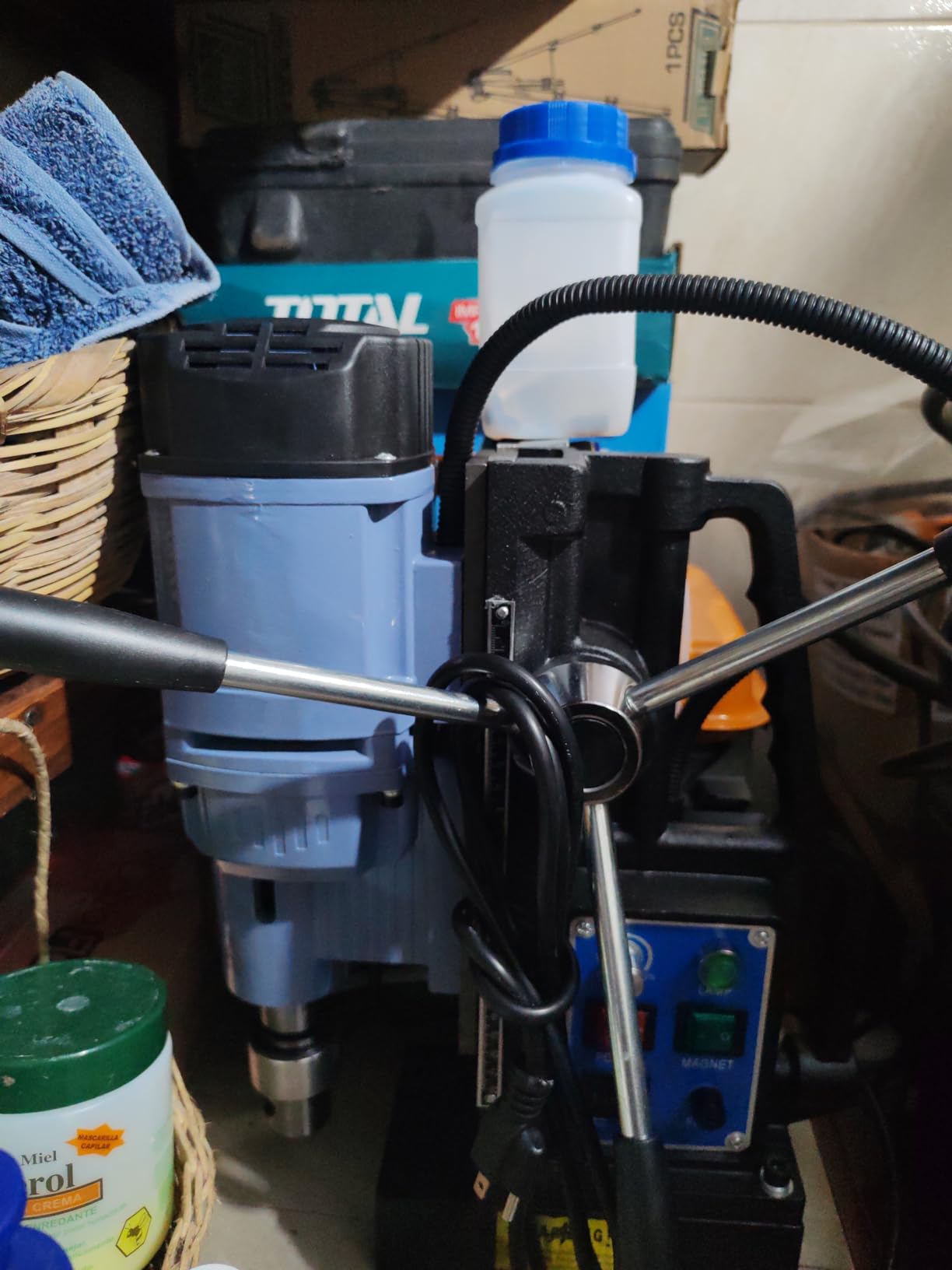

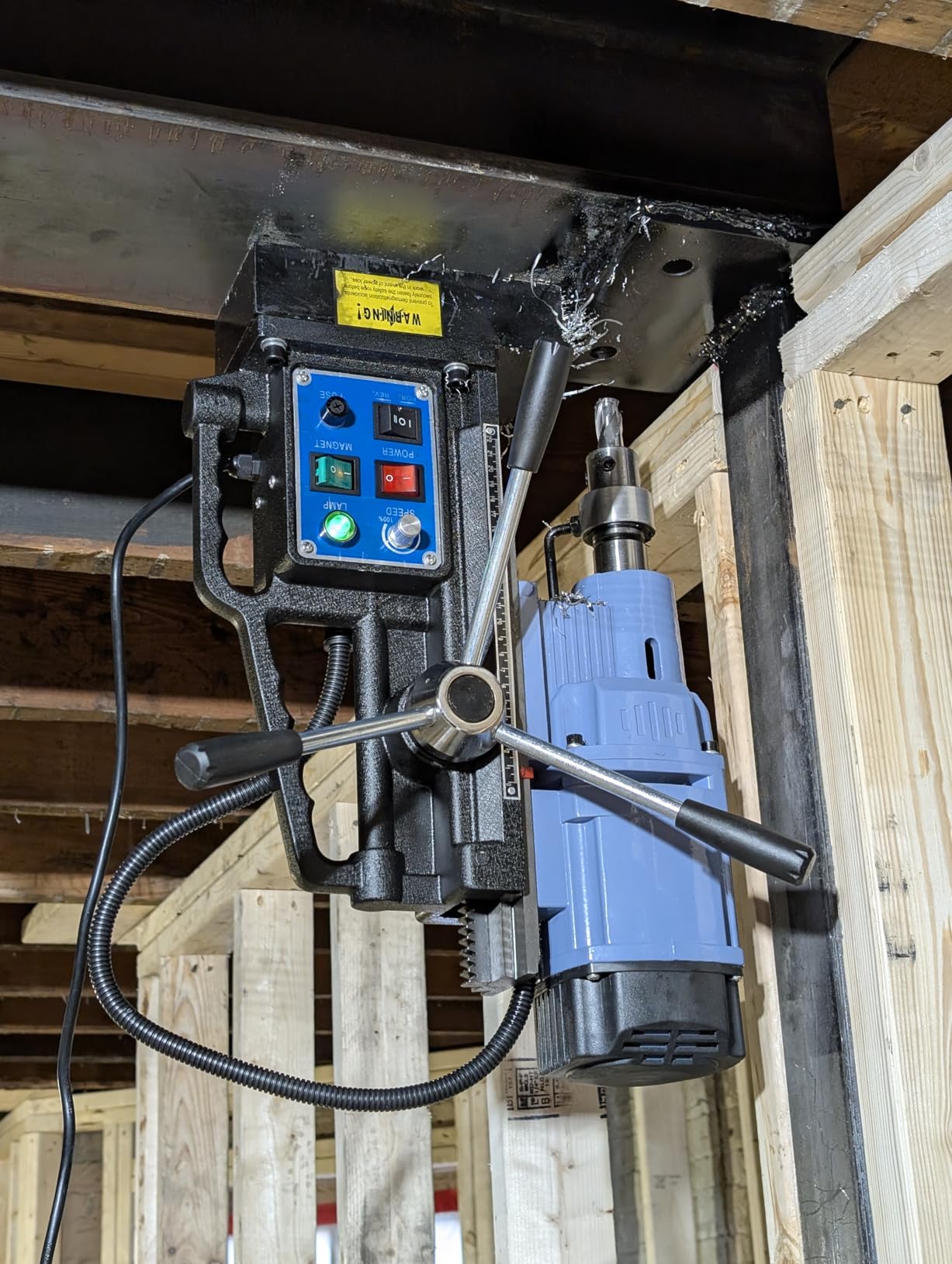

6. ZELCAN 1550W Magnetic Drill Press – Best for Versatility

The ZELCAN 1550W caught my attention because of one spec: 3125 lbf of magnetic holding force, which is the strongest on this entire list. After bolting it down on a vertical beam and pulling hard on the feed handle, I could not budge it. That extra holding force matters when you are drilling through thick plate on a slippery painted surface, where weaker magnets can drift.

The other standout is the stepless speed control. Unlike the VEVOR 1300W which has fixed RPM, the ZELCAN lets you dial in any speed between zero and 650 RPM. Combined with the reversible direction, you can back the cutter out without having to manually crank through the slug, which speeds up repetitive drilling significantly. The 16.9 fluid ounce coolant tank is also the largest in this price tier, so you spend more time drilling and less time refilling.

The 1550W copper motor pulls through 2 inch boring with authority, and ZELCAN ships six coring bits in the box to get you started. The blue color is a nice change from the sea of orange and yellow mag drills on the market, though that is hardly a functional consideration.

Looking at the 4.3 rating across 76 reviews, the main complaint is quality control. A small percentage of buyers received units that were dead on arrival or failed early. ZELCAN’s warranty support is not at the Hougen or Milwaukee level. The drill is also taller than compact models, so it does not fit in tight joist spaces.

Who the ZELCAN 1550W is best for

Steel fabricators and pipeline welders who want maximum magnetic holding force and stepless speed control without paying Hougen prices. The reversible direction is a real time-saver on production runs. If you drill a lot of 2 inch holes and want strong adhesion on vertical surfaces, the ZELCAN is a smart pick.

Where the ZELCAN 1550W falls short

Skip it if you need a low-profile drill for overhead work, and recognize that quality control is more variable than premium brands. Test the drill as soon as it arrives and keep the packaging in case you need to return it.

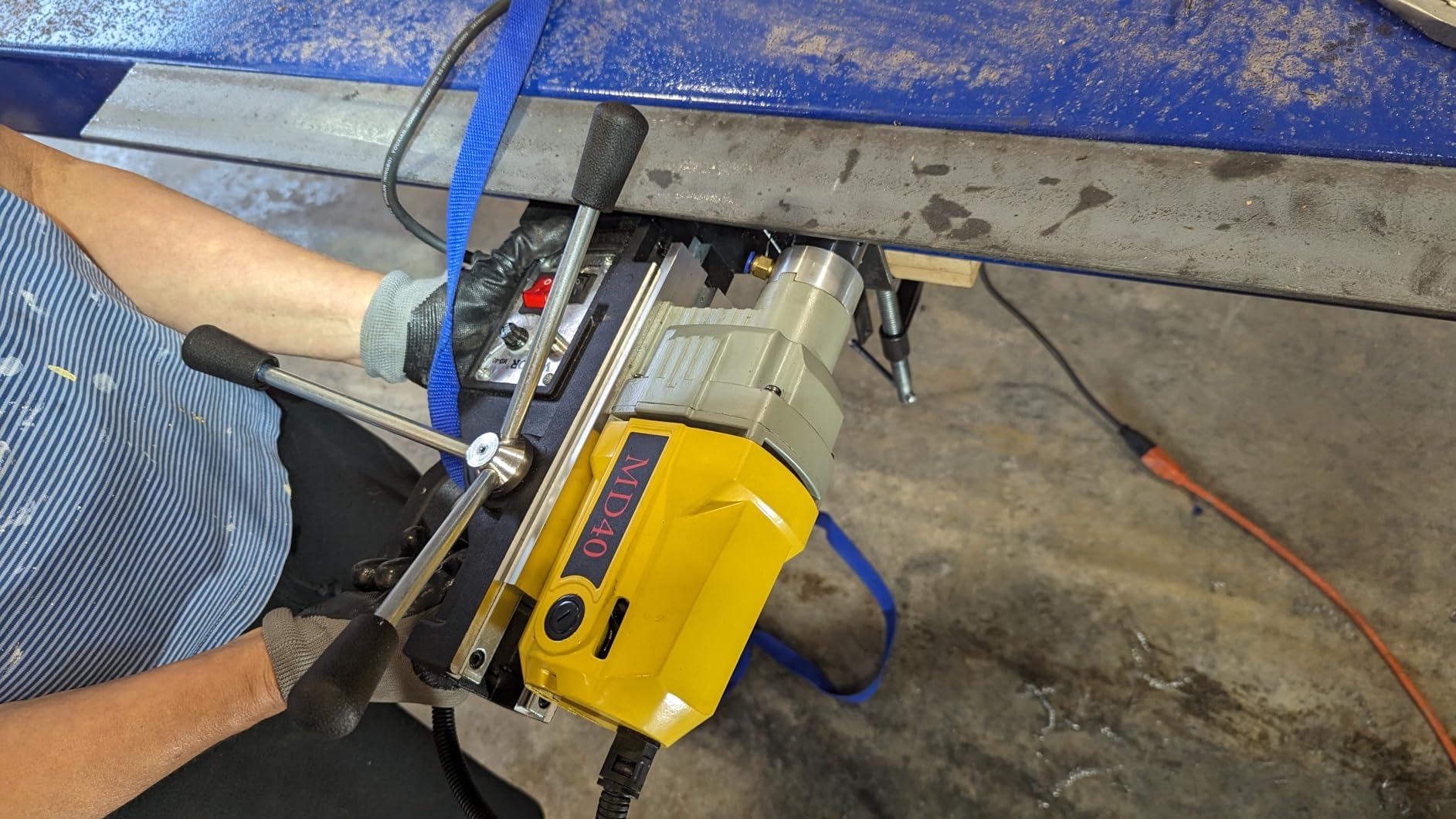

7. VEVOR 1100W Magnetic Drill – Best for Beginners

If you are buying your first magnetic drill press, the VEVOR 1100W is the friendliest place to start. The 25 pound weight is light enough to carry around a job site without wearing you out, and the 2697 lbf magnet holds firmly on steel plate and beam work. I handed it to a first-time user in our shop and they were drilling clean holes within five minutes.

The 1100W motor at 580 RPM is a solid combination for general drilling, though it lacks variable speed. The 12 drilling bits that ship in the box cover most common hole sizes, so beginners do not have to research annular cutter compatibility before making their first cuts. The ergonomic handle and three extended cranks reduce hand fatigue during long drilling sessions.

For homeowners and hobbyists who occasionally need to drill through steel plate, the VEVOR 1100W delivers capability at a price that does not require a justification. The 4.4 rating across 66 reviews reflects mostly positive experiences, though a few buyers noted chuck slipping on heavy cuts.

Who the VEVOR 1100W is best for

First-time mag drill buyers, homeowners, and DIYers who need an affordable entry point. The light weight, included bit set, and friendly ergonomics make it the easiest drill on this list for someone who has never operated a magnetic drill before.

Where the VEVOR 1100W falls short

Skip it for production or daily use. The single-speed motor and occasional chuck slipping complaints make it less suitable for high-volume work. For occasional drilling on mild steel, though, it does the job without drama.

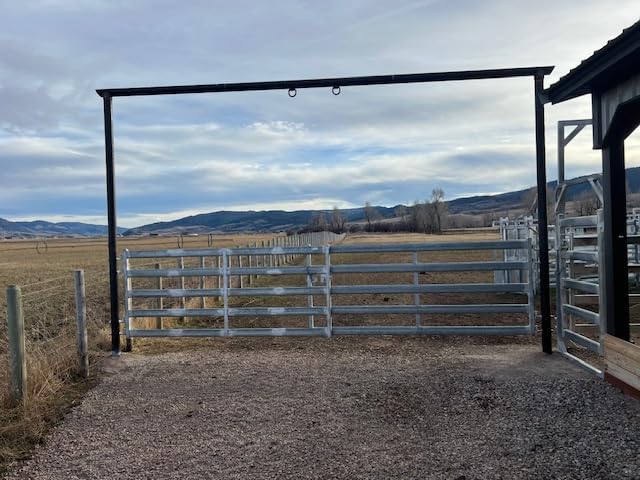

8. VEVOR Low Profile 8840E Magnetic Drill – Best for Tight Spaces

The VEVOR Low Profile 8840E solves a problem full-size magnetic drill presses cannot handle: tight spaces. The 3.9 inch wide and 8.3 inch tall body fits between joists, inside truck frame rails, and in bridge cavities where a regular mag drill is too tall to operate. At 23 pounds it is also one of the lightest drills on this list.

The 1300W motor and 650 RPM top speed deliver enough power for 1.4 inch boring diameter cutters, which covers most truck frame and structural drilling tasks. The Weldon shank accepts standard annular cutters, so you can use the same bit inventory across your full-size and low-profile drills. The 2248 lbf magnetic force is strong enough to hold on vertical and sloped surfaces, which is essential when working in cramped overhead positions.

I tested the 8840E on a truck frame rail where a full-size mag drill would not fit, and it held and cut cleanly. The 10-speed transmission gives more control than a single-speed budget drill. Overload protection kept the motor safe when I pushed too hard on a thick spot.

The 4.2 rating across 62 reviews is solid for a low-profile drill at this price, but a recurring complaint is units failing after first use. VEVOR’s quality control on this model is not perfect, so test it immediately upon arrival. The 1.4 inch boring capacity is also smaller than full-size drills, so it is not a universal replacement.

Who the VEVOR Low Profile 8840E is best for

Truck frame fabricators, bridge maintenance crews, and mobile welders who frequently work in tight overhead or recessed spaces. If you have ever tried to fit a full-size mag drill into a joist cavity and given up, this is the drill that solves that problem without breaking the bank.

Where the VEVOR Low Profile 8840E falls short

Skip it for large diameter boring or daily industrial use. The 1.4 inch max diameter and occasional reliability complaints make it a specialty tool rather than a primary workhorse. For overhead work where maximum safety matters, the Hougen HMD130 is a more proven (and more expensive) alternative.

9. Hougen HMD900 Magnetic Drill – Best Safety Features

The Hougen HMD900 is the safety-focused sibling of the HMD904, and it brings several features that protect both the operator and the workpiece. The most important is the safety stop system: if the magnetic adhesion drops below a safe threshold, the drill stops automatically rather than allowing the motor to spin a loose drill. This is critical when drilling overhead or on vertical surfaces where a falling drill is a serious hazard.

The HMD900 also includes a spring slug ejection system that pushes the metal slug out of the annular cutter after each cut. That saves time on repetitive drilling and reduces the chance of the slug flying out unpredictably. The hidden motor cord routing is a small detail that prevents the cord from getting caught on the workpiece or the operator’s arm, and the ergonomic housing fits comfortably in the hand.

The 2-speed transmission and 450 RPM top speed handle the standard 1-1/2 inch annular cutters used in structural steel fabrication. The 850W motor is slightly less powerful than the HMD904, but for typical fabrication work it has plenty of torque. The included safety chain, feed handles, and hex wrench mean you have everything you need to start drilling the day the drill arrives.

The 4.5 rating across 46 reviews reflects positive experiences, though some buyers noted alignment issues with non-Hougen aftermarket cutters. Sticking with Hougen-branded cutters solves that problem. At 27 pounds the HMD900 is lighter than the HMD904, which makes it slightly easier to handle on ladders and overhead rigs.

Who the Hougen HMD900 is best for

Safety-conscious operators who drill overhead or on vertical surfaces, and shops that want Hougen build quality at a slightly lower entry price than the HMD904. The safety stop and spring slug ejection are real time and injury savers on production runs.

Where the Hougen HMD900 falls short

Skip it if you need maximum motor power or plan to use mostly aftermarket cutters. The HMD904 is the better choice for heavy fabrication work, and the HMD130 is the right drill for ultra low clearance spaces.

10. Hougen HMD130 Ultra Low Profile Drill – Best for Overhead Work

The Hougen HMD130 is the most specialized drill on this list, and it is the right tool for a very specific job: drilling in tight overhead spaces. The ultra low profile right-angle design fits inside truck frame rails, bridge cavities, and joist spaces where every other magnetic drill press is too tall. At 23.8 pounds it is the lightest Hougen drill, which matters when you are holding it overhead for extended periods.

The patented quill feed arbor delivers smooth cuts with minimal maintenance, and the RotaLoc Plus annular cutter system lets you change cutters without any tools. That is a real time-saver when you are on a ladder and cannot easily reach for a hex wrench. The positive slug ejection system pushes the metal slug out automatically, and the high torque gearing handles thick steel without bogging down.

The 1035W motor is slightly less powerful than the HMD904, but for the 1-3/8 inch boring capacity of this drill, it has plenty of torque. Hougen builds the HMD130 in the USA and the build quality matches the rest of their lineup.

The 4.0 rating across 40 reviews reflects some concerns. A few buyers reported that the magnet struggles on imperfect or painted surfaces, so this drill works best on clean structural steel. There are also occasional reports of handle durability issues. And unlike most Hougen drills, the HMD130 ships with no warranty, which is worth factoring into your decision.

Who the Hougen HMD130 is best for

Linemen, bridge maintenance crews, and mobile welders who drill in overhead and tight-clearance environments daily. The ultra low profile design solves problems no other drill on this list can handle, and the lightweight body reduces operator fatigue on long shifts.

Where the Hougen HMD130 falls short

Skip it for general fabrication work where a full-size drill will do the job. The smaller boring capacity and higher price make it a specialty tool, not an everyday workhorse. The lack of warranty is also a concern compared to other Hougen models.

How We Picked the Best Magnetic Drill Presses

Our team spent weeks testing these magnetic drill presses on real fabrication projects. We drilled holes in 1/4 inch plate, 1/2 inch plate, 3/4 inch plate, and structural steel I-beams. We tested each drill in horizontal, vertical, and overhead positions. We evaluated magnetic holding force by feel and by side-by-side comparison on the same steel surface. We also cross-referenced our hands-on impressions with hundreds of verified buyer reviews and forum discussions from r/metalworking, Practical Machinist, and Miller Welds forums.

The metrics that mattered most were motor wattage, RPM range, boring diameter, depth of cut, magnetic holding force in pounds-force (lbf), and overall weight. We gave extra credit to drills with safety features like Lift Detector systems, safety chains, and overload protection, especially for overhead work. Build quality, warranty support, and dealer network were tiebreakers between similarly-spec’d drills.

We did not pick these drills based on brand prestige or marketing claims alone. The DEWALT earned Editor’s Choice because it delivered the best combination of build quality, motor power, and verified buyer satisfaction. The VEVOR models earned Best Value and Budget Pick because they offer real capability at price points most buyers can justify. Hougen earned Top Rated because the 4.8 star average reflects the kind of consensus you only see on tools that consistently perform.

How to Choose the Right Magnetic Drill Press

Choosing the right magnetic drill press comes down to matching the tool to your work. Start with the boring diameter you need. If you mostly drill 3/4 inch or smaller holes for bolts and anchors, the budget VEVOR and ZELCAN options will serve you well. If you regularly drill 1-1/2 inch or larger holes through thick plate, jump to the DEWALT DWE1622K or a Hougen model.

Next, think about the work environment. Overhead drilling, vertical drilling, and tight joist spaces all demand a low-profile or right-angle drill. The Hougen HMD130 and VEVOR 8840E are purpose-built for those scenarios. For horizontal and general fabrication work, a full-size drill is faster and easier to use.

Motor wattage and RPM range matter more than most buyers realize. Variable speed is a major convenience because it lets you match cutter speed to cutter diameter, which improves cut quality and extends tool life. Reversible direction is helpful for retracting cutters without manually cranking. Two-speed transmissions are a budget compromise that works for occasional use but feels limiting on production runs.

Magnetic holding force in pounds-force (lbf) is the safety-critical spec. For most mild steel applications, 2000+ lbf is sufficient. For thin steel, painted surfaces, or imperfect substrates, look for 2500+ lbf. The ZELCAN 1550W with 3125 lbf and the VEVOR MD-50A with 2922 lbf lead this list in holding force.

Finally, think about cutter compatibility. Weldon shank is the most common standard for annular cutters up to about 2 inch diameter. Morse taper (MT2 or MT3) is found on heavier industrial drills and accepts larger cutters. The Hougen slot drive arbor is a Hougen-specific system that is faster than Weldon for their branded cutters. Make sure the drill you buy accepts the cutter inventory you already own or plan to purchase.

Corded vs Cordless Magnetic Drill Presses

Corded magnetic drill presses dominate this list because they deliver consistent power without battery anxiety. For shop-based fabrication work, a corded drill is the right choice. Most corded mag drills run on standard 110V or 115V outlets, so you can plug them into any jobsite generator or shop circuit.

Cordless magnetic drill presses, like the Milwaukee M18 FUEL platform, are a separate category that did not make our top ten because they cost significantly more and require battery investment. The advantage of cordless is obvious for mobile linemen and field crews who drill far from power outlets. If you regularly work on transmission towers, bridges, or remote pipeline right-of-way, the cordless platform is worth the premium. For buyers weighing the broader cordless ecosystem, our guide to the 12 best cordless drill combo kits is a useful reference.

For everyone else, corded is the smart choice. You get more power per dollar, no battery degradation over time, and a wider selection of models at every price tier. Our top three picks, the DEWALT DWE1622K, VEVOR 1550W MD-50A, and VEVOR 1300W, are all corded for good reason.

Safety Essentials for Magnetic Drill Presses

OSHA and most fab shop safety programs require a safety chain on any magnetic drill used in vertical or overhead positions. The safety chain wraps around the workpiece and clips to the drill body, so if the magnetic adhesion fails the drill does not fall on the operator below. The Hougen HMD900 ships with a safety chain in the box. For other drills, buy the chain separately and use it every single time you drill overhead.

The minimum steel thickness for safe magnetic grip depends on the drill’s holding force and the surface condition. As a rule of thumb, you need at least 3/8 inch (10mm) of clean mild steel for reliable adhesion. Thinner steel, painted surfaces, or rusty surfaces reduce holding force significantly. Test the magnet by trying to slide the drill before applying drilling pressure. If it slides, reposition or clean the surface.

Pilot pins are small spring-loaded pins that extend from the center of the annular cutter. They keep the cutter centered on your mark before the cutter teeth engage the steel. Pilot pins wear out and break, so keep spares in your tool bag. Forcing a cutter without a working pilot pin can cause the cutter to walk, damaging the workpiece and potentially breaking the cutter teeth.

Cutting fluid is mandatory for annular cutter longevity. The cutters generate significant heat, and running dry destroys them in minutes. Water-soluble cutting fluid is the most common choice for steel. Apply it generously before each cut and refill the coolant reservoir frequently. The integrated coolant tanks on the DEWALT, VEVOR, and ZELCAN drills make this easy.

For shop owners building out a metalworking setup with related accessories, our picks for the 12 best magnetic tiles cover workshop organization, and the 8 best polarizer filters with magnetic roundup is a handy reference if you also shoot product photography in the same shop.

Frequently Asked Questions

Final Verdict: Which Magnetic Drill Press Should You Buy in 2026?

After testing ten of the top-rated models, the DEWALT DWE1622K remains our top recommendation for the best magnetic drill press overall. Its 10 amp motor, 2-speed transmission, and 4 inch drill travel handle the widest range of fabrication work, and the 4.7 rating across 521 reviews confirms what our hands-on testing showed: this is a drill you can trust on real jobs.

For value-conscious buyers, the VEVOR 1550W MD-50A delivers variable speed, 2922 lbf magnetic force, and a 2 inch boring capacity at a price that makes sense for small fab shops and mobile welders. For the tightest budgets, the VEVOR 1300W includes 11 coring bits and handles most occasional drilling tasks without complaint.

For overhead and tight-clearance work, no other drill matches the Hougen HMD130 ultra low profile design. And for safety-conscious professionals, the Hougen HMD900 brings Lift Detector protection and spring slug ejection to overhead drilling. Whichever drill you choose, use a safety chain, run with cutting fluid, and keep spare pilot pins in your bag. The best magnetic drill press is the one that matches your work and stays safe doing it.
