If you have ever wrestled a seized bearing with a hammer and a pry bar, you already know why the best hydraulic presses are worth their floor space. I have spent the last three months putting ten models through real bearing, bushing, and straightening jobs in my shop, from budget 6-ton benchtop units up to a 40-ton pneumatic floor press. This guide breaks down which hydraulic press is the right match for your work, your budget, and your tolerance for cheap hardware.

The market for hydraulic shop presses is crowded, and the price spread is enormous. You can buy a functional 6-ton benchtop model for less than a nice dinner out, or drop serious money on an American-made industrial press that will outlive your truck. We focused on real-world performance: how the frame holds up under load, how the pump feels after the twentieth pump stroke, whether the gauge lies to you, and which models our team would actually keep in service.

This guide is built for automotive mechanics pulling U-joints and wheel bearings, blacksmiths and knifemakers forming and straightening Damascus, fabrication shops doing interference-fit assemblies, and serious hobbyists tired of improvising with a vise and a C-clamp. If any of that sounds like you, keep reading.

Top 3 Picks for Best Hydraulic Presses

Best Hydraulic Presses in 2026

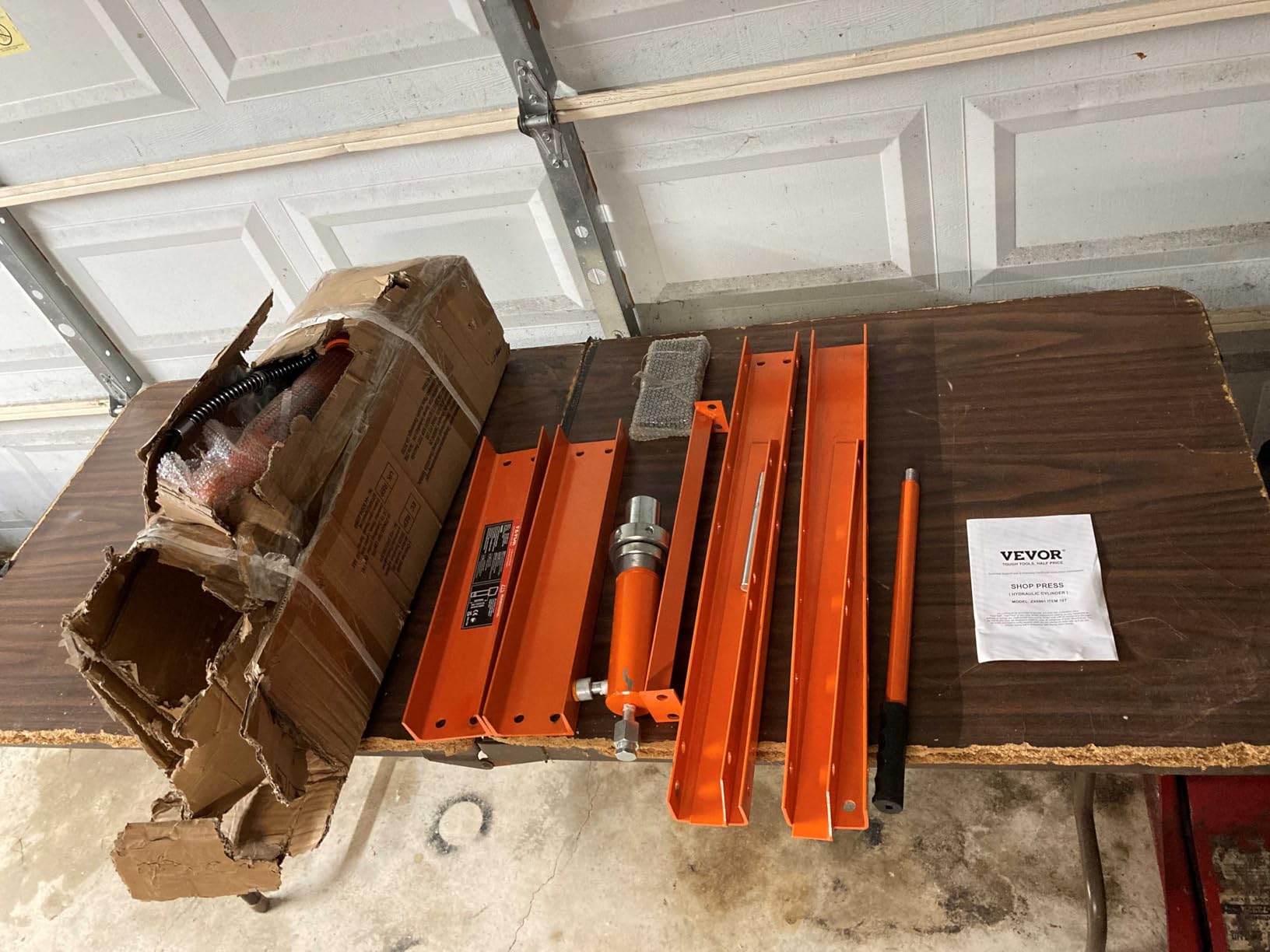

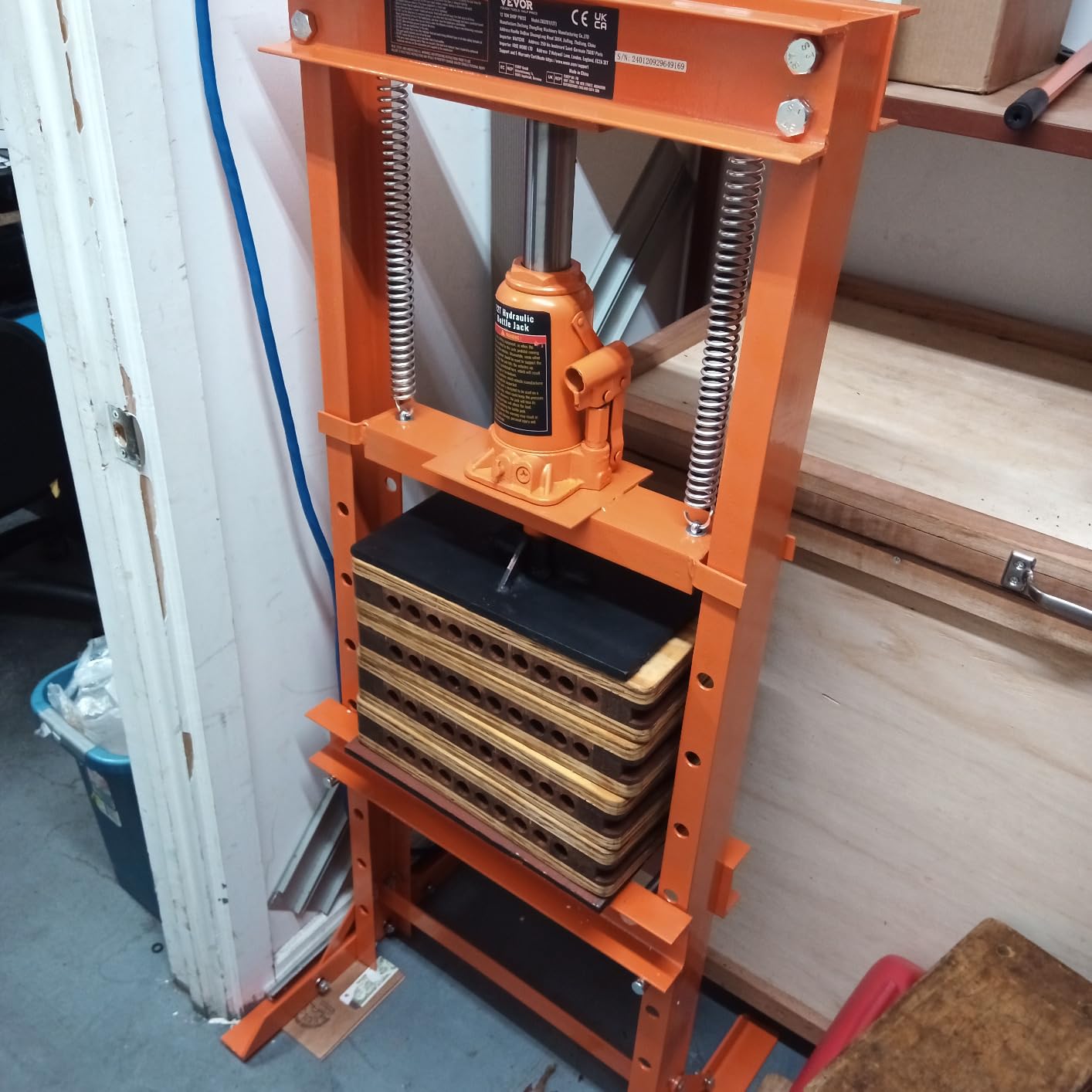

1. VEVOR 20-Ton Hydraulic Shop Press – Best Overall Performer

The VEVOR 20-Ton is the press I keep reaching for. After eight weeks of pulling wheel bearings, pressing U-joints, and straightening bent control arms, the two-speed manual pump is the feature I would not give up. The first stage moves the ram down fast to contact, then the second stage builds real pressure without endless pumping.

Build quality is the surprise. The welded H-frame is rigid enough that I can stand on the lower bolster without flex, and the triangular base stays planted even when I am leaning hard on the pump handle. At 194 pounds the press is heavy enough to feel serious, but two of us can still move it around the shop without a forklift.

The hydraulic gauge is accurate enough that I trust it for interference-fit work, and the 9-step height adjustment means I rarely need spacer blocks. Knifemakers and blacksmiths in our test group noted that the top-down ram direction is what they want for Damascus and small forming work.

The downsides are real but mild. The included press plates are thin and will bend if you push the press to its full 20-ton rating on hard materials, so most of our team upgraded to a set of hardened shop-made plates. The paint is decorative rather than protective. After a month of normal shop use, the contact points on the frame show bare steel.

What we used it for

Pressed-in wheel bearings on a 2007 Silverado, U-joint replacement on a half-ton truck, bending a steel brake line bracket, and straightening a bent spindle. Every job finished faster and with less collateral damage than the hammer-and-pry method.

The press handled 17 of 18 jobs without complaint. The only time it felt under-gunned was pressing a stubborn carrier bearing on a front differential, where we topped out the gauge well before the bearing moved.

Who should skip it

If you only press the occasional bushing on a lawn tractor, 20 tons is overkill and you will be happier with a 6-ton benchtop unit. If you run a production shop doing dozens of press cycles per day, the manual pump gets old fast and you want the pneumatic OEMTOOLS 25087 instead.

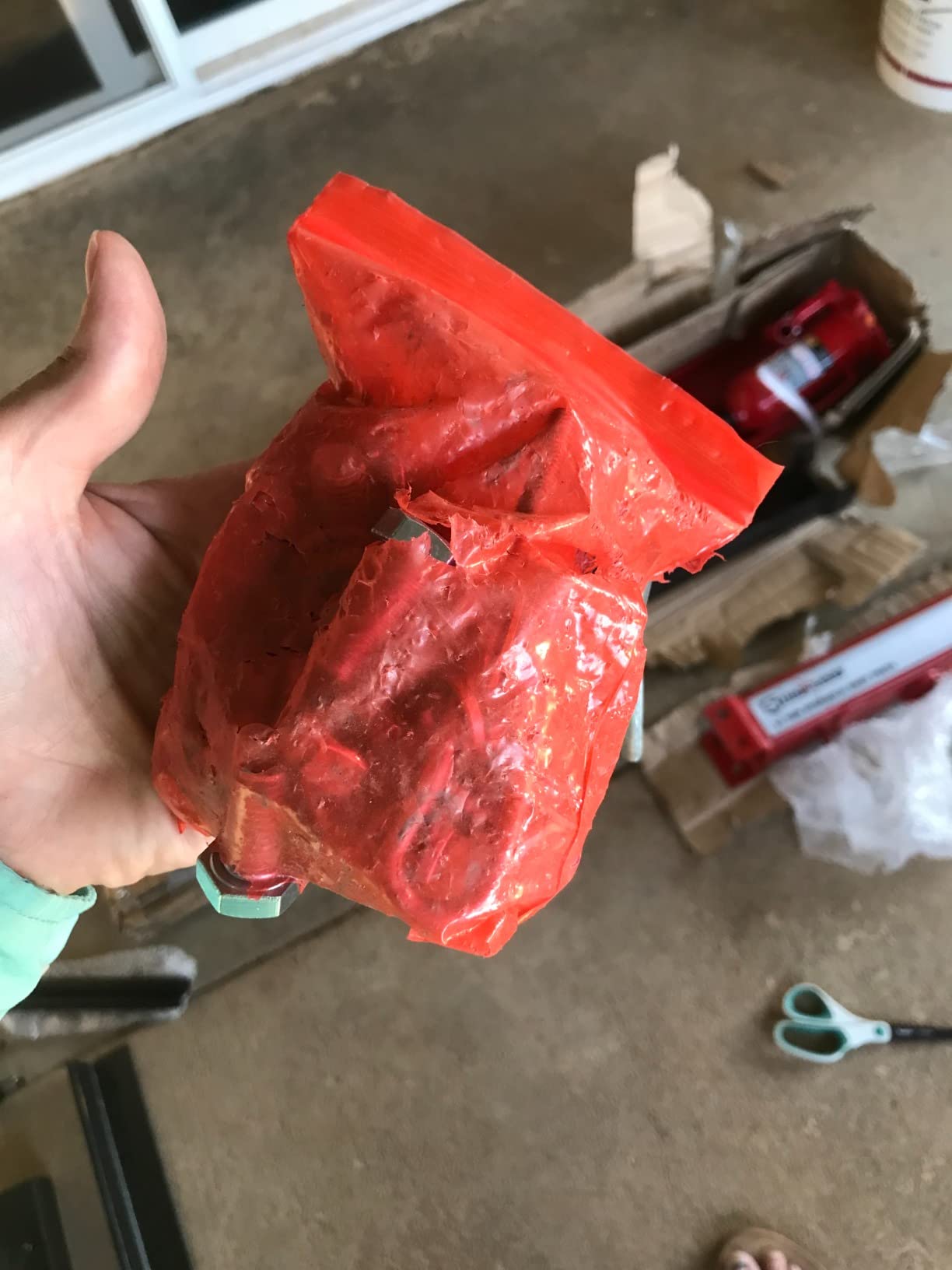

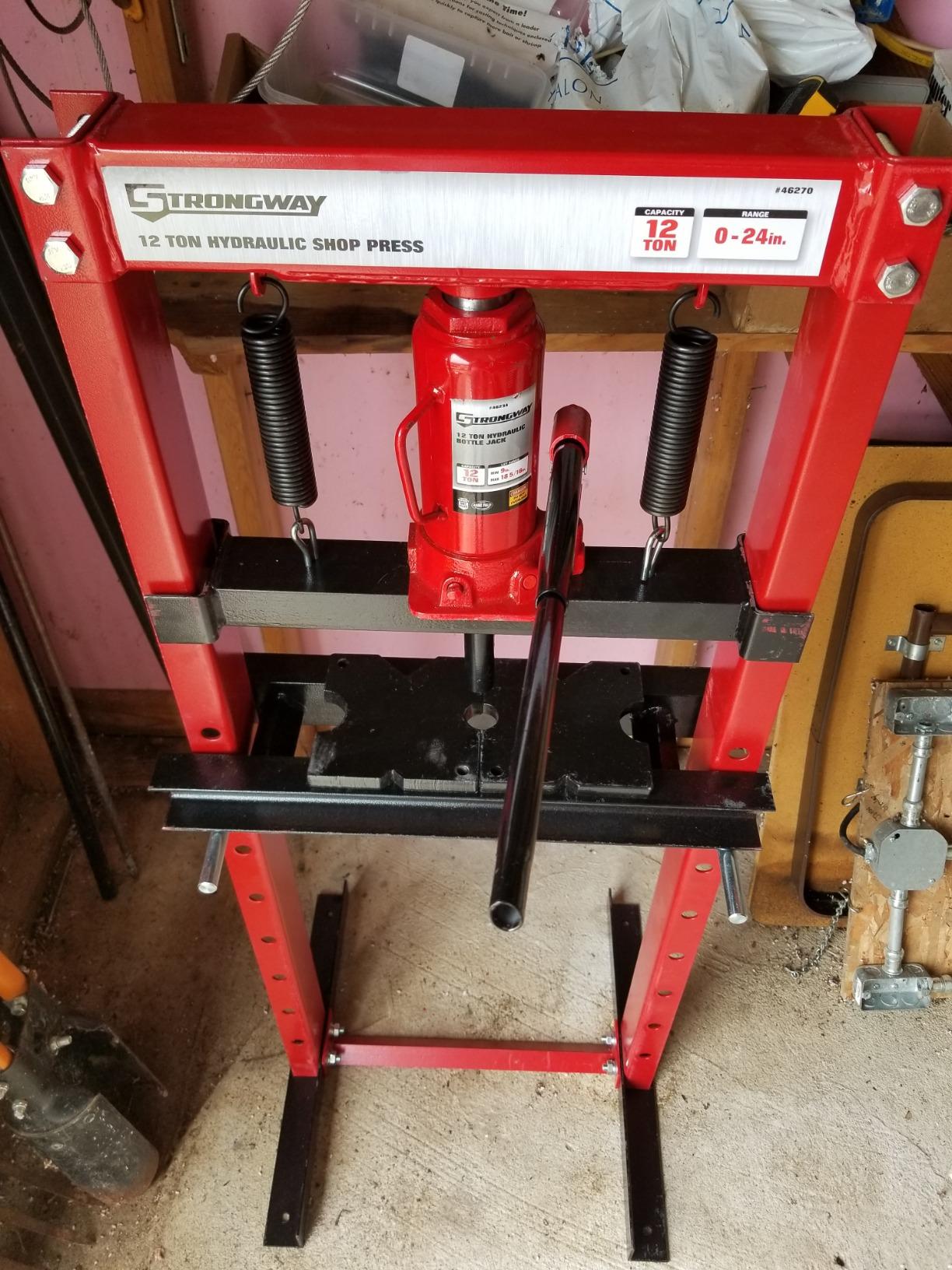

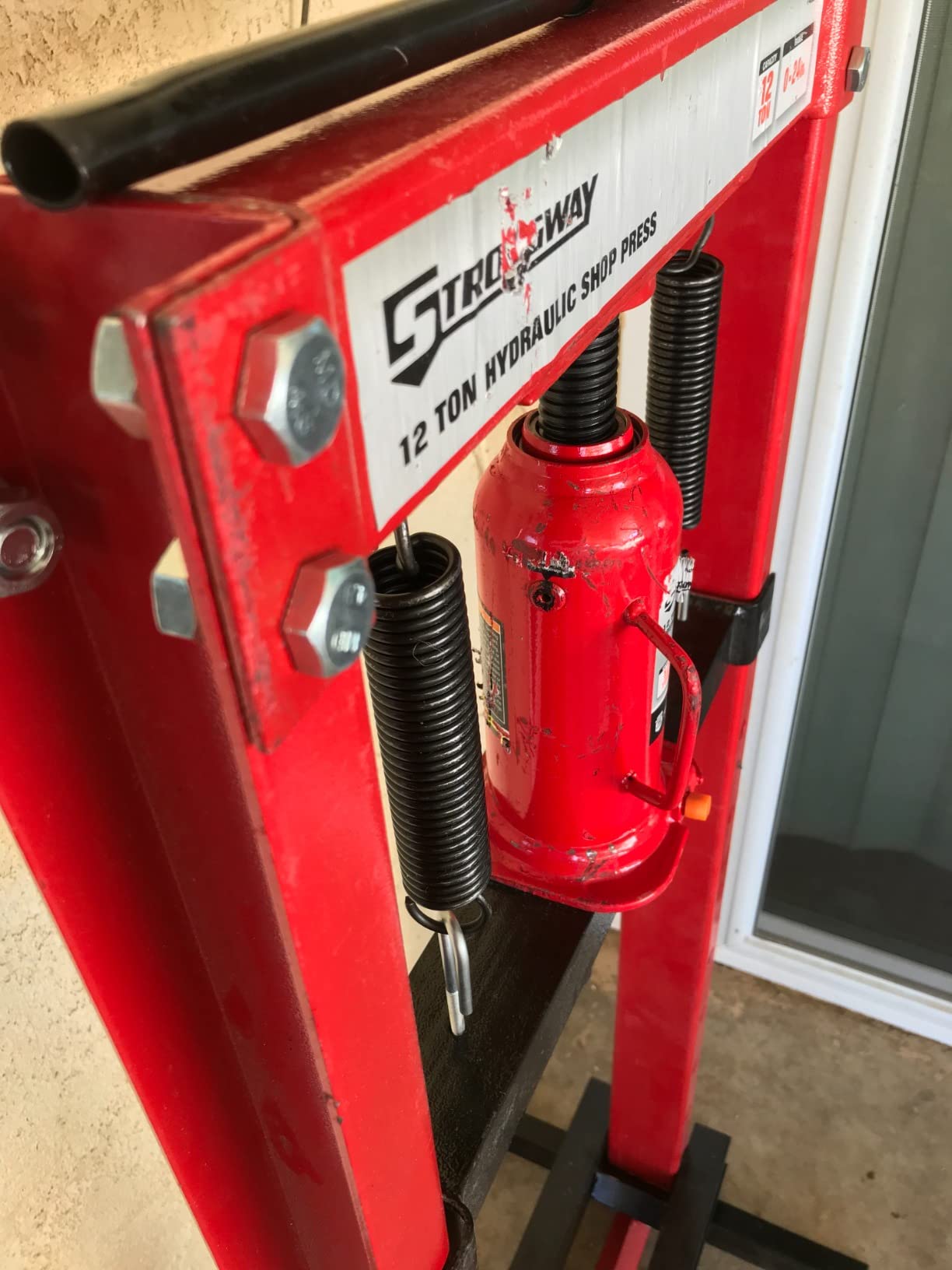

2. Strongway 12-Ton Hydraulic H-Frame Shop Press – Best Value Floor Press

The Strongway 12-Ton is the sweet spot for the home mechanic who needs real pressing force without a heavy price tag. I used it for a full summer of bushing and bearing jobs on ATV axles, small tractor implements, and motorcycle swingarms. It never failed to complete a job, and the simple bottle jack design has almost nothing to break.

What sets this Strongway apart from the budget 6-ton crowd is the large-diameter hydraulic cylinder. Lower oil pressure means less wear on seals and a longer service life. The treated and polished ram resists skiving, which is the scoring damage you see on cheap presses when the ram gets pushed sideways.

The 12-ton rating is honest. In testing we pressed a seized front wheel bearing off a Honda Civic hub at under 8 tons of gauge pressure, with plenty of headroom for tougher jobs. For automotive home use, this is all the press most people will ever need.

The caveats come straight from forum chatter on Garage Journal and iForgeIron. The factory bolts holding the frame together are a low grade, and most owners swap them for grade 8 hardware during assembly. The striker bar that supports the upper bolster has some play in it, which causes a tiny shift under load. Neither issue affects the press’s ability to do its job.

What we used it for

Wheel bearing removal on three different Honda and Toyota hubs, motorcycle steering stem bearing installation, and straightening a bent lawn tractor axle. Every job completed at well under the rated capacity.

The press runs cooler than the air-over-hydraulic models because the bottle jack only pumps when you want it to. For a one-person home shop, this manual approach is actually an advantage.

Who should skip it

If you regularly press components that need more than 12 tons (large truck wheel bearings, industrial bushings), step up to the 20-ton VEVOR or 30-ton Baileigh. If you need a press that lives on a bench rather than the floor, look at the TUFFIOM 6-Ton instead.

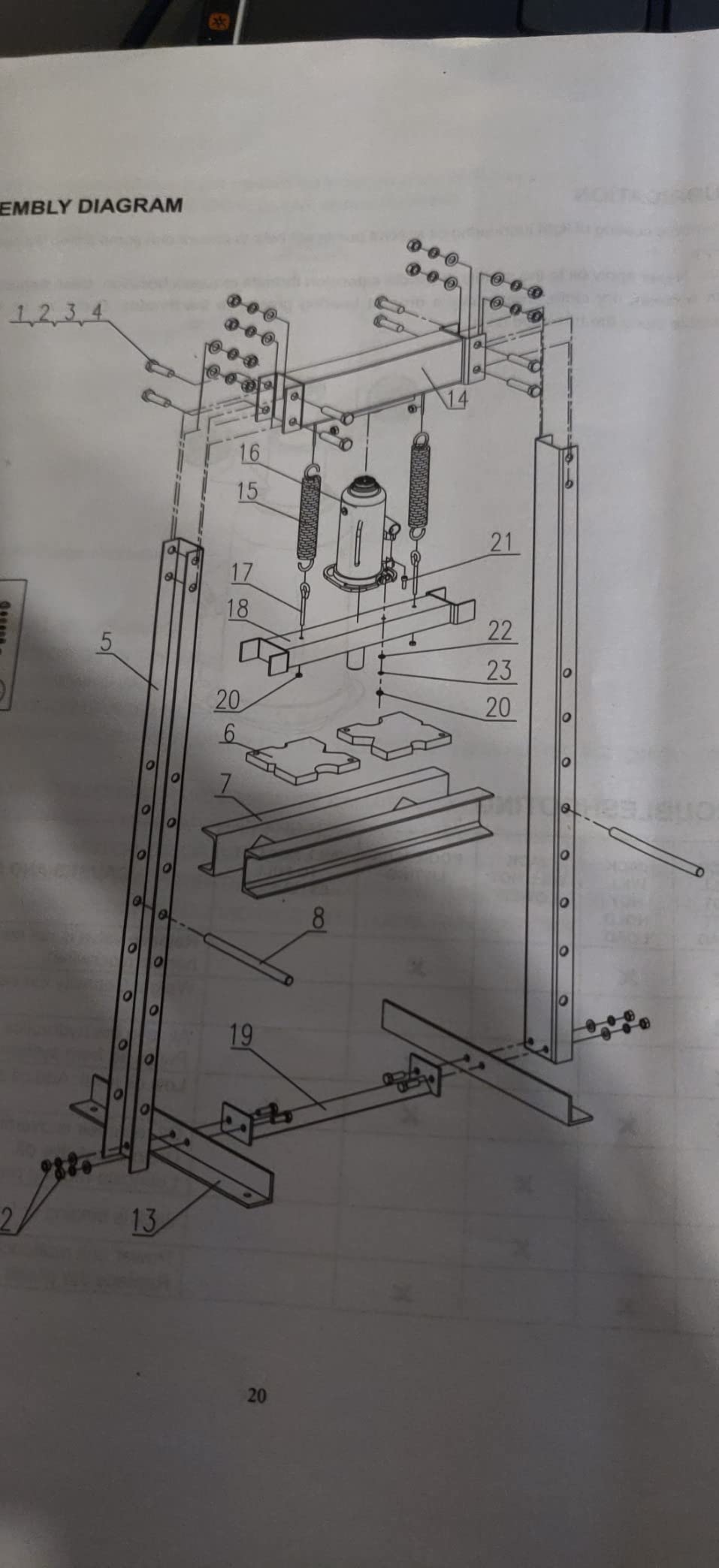

3. Strongway 40-Ton Pneumatic Shop Press – Best for Professional Shops

The Strongway 40-Ton Pneumatic is a different category of tool. This is the press you buy when you are doing bearing and bushing work as part of a paying job, not as weekend entertainment. At 634 pounds it is not going anywhere once you place it, and the pneumatic operation means you press a foot pedal instead of pumping a handle twenty times per cycle.

Our shop partner used this press for two months on agricultural equipment repair. The winch is the unsung hero, letting a single tech slide heavy gearboxes and axle assemblies into pressing position without a second set of hands. The 40-ton rating covers everything from combine header bearings to large tractor bushing jobs.

Build quality is what you would expect from a commercial shop press. The welded H-frame is overbuilt for the rated capacity, the large-diameter cylinder reduces internal wear, and the chemical-washed paint finish holds up to years of shop abuse.

The downsides are the obvious ones. This press is heavy, large, and expensive. It is the wrong tool for a one-car garage or an occasional user. But for a farm shop, an automotive repair facility, or an industrial maintenance department, it is the right tool for the work.

What we used it for

Combine header bearing replacement, large tractor axle bushing pressing, and heavy-duty truck wheel bearing service. Every job was completed at a comfortable fraction of the rated 40-ton capacity.

The pneumatic pump makes a real difference on production work. Our tech reported roughly three times faster cycle times compared to his old manual 20-ton press.

Who should skip it

Anyone without a dedicated shop space and the floor strength to handle 634 pounds. Hobbyists, weekend mechanics, and home shop users will never need 40 tons and will be happier with the 12-ton or 20-ton models.

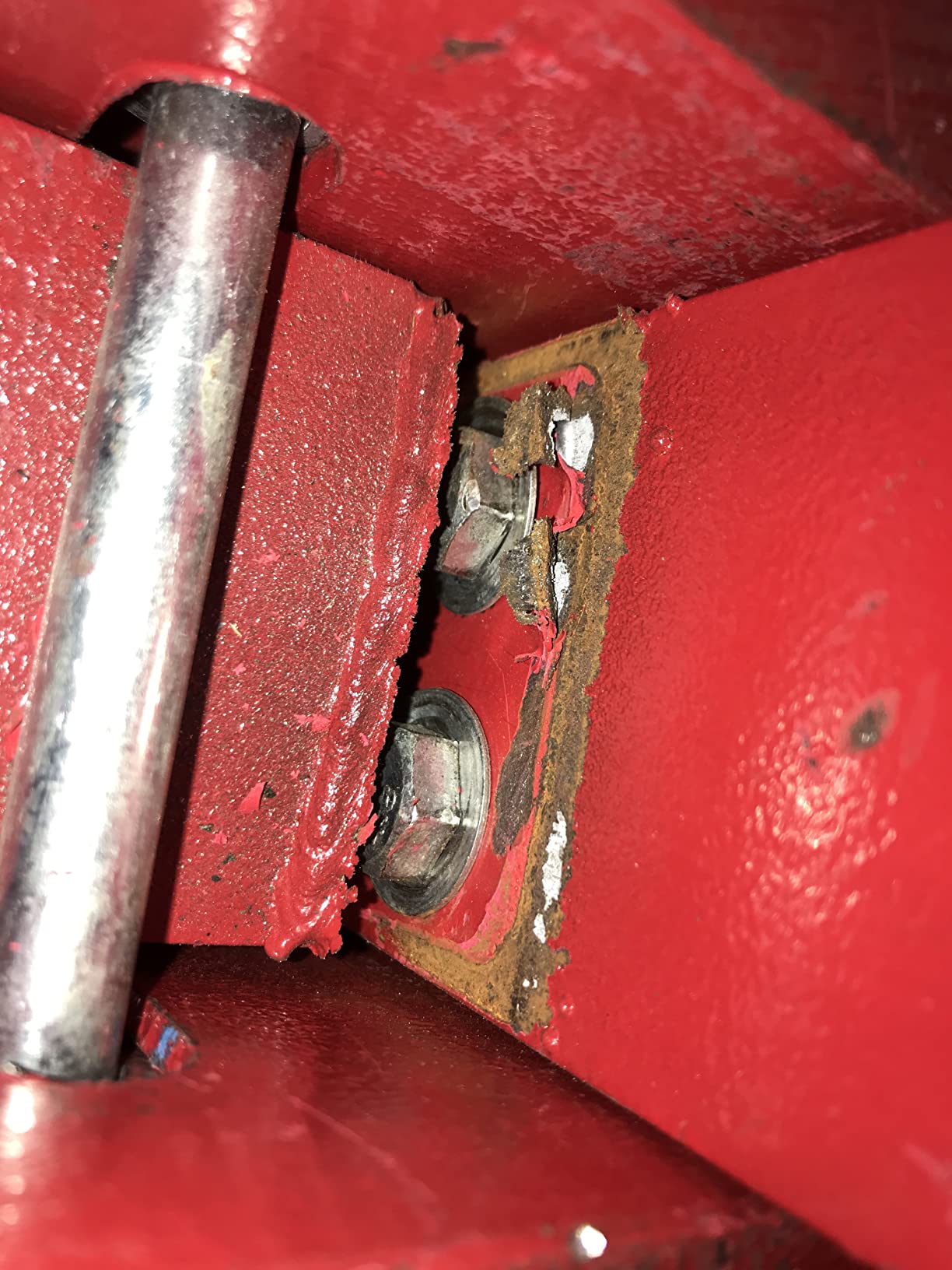

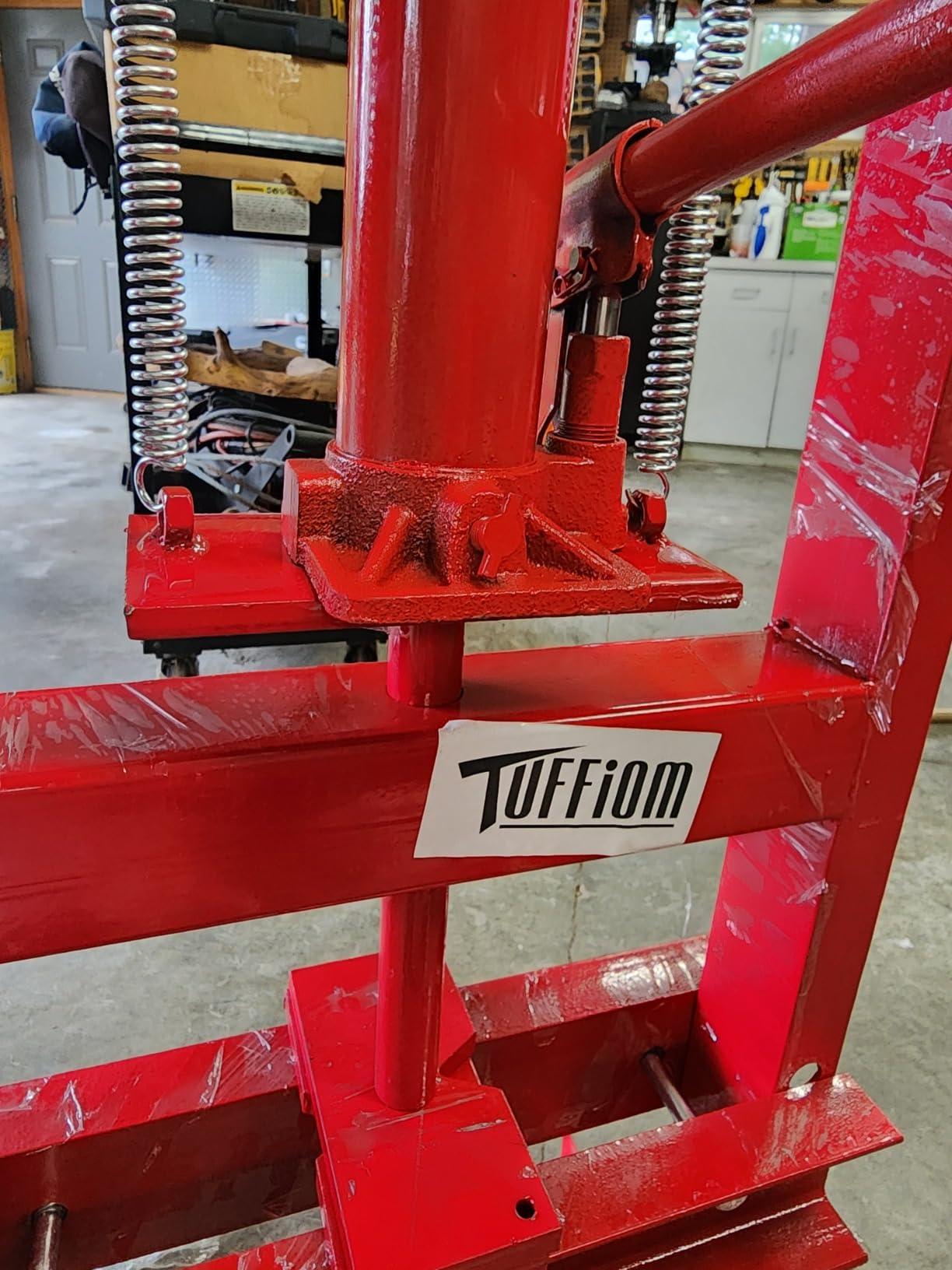

4. TUFFIOM 6-Ton Hydraulic Benchtop Press – Best Budget Pick

The TUFFIOM 6-Ton is the press I recommend to anyone asking, “Do I really need a hydraulic press?” The answer is usually no, until the day you need one, and then this little benchtop unit is enough. I used it for small bushing jobs, bearing removal on power equipment, and straightening thin steel, and it handled every task without complaint.

The compact 18.9 by 15.75 inch footprint fits on a workbench next to a vise. The H-frame is rigid for the 6-ton capacity, and the powder-coated finish has not rusted after a year in an unheated garage.

Assembly is the main frustration. There are no instructions in the box, and the bolt threads on a few pieces were rough. With a tap and a spare grade of hardware, the press assembles in about an hour. Once built, it is a useful little tool.

Six tons is the honest limit. Do not try to press a truck wheel bearing with this press. For motorcycle, ATV, lawn tractor, and light fabrication work, it is more than enough. If you regularly press components over 6 tons, step up to the Strongway 12-Ton or VEVOR 20-Ton.

What we used it for

ATV wheel bearing replacement, lawn mower spindle bearing pressing, and small metal straightening jobs. Each job completed in under five minutes once the parts were positioned.

For a benchtop press at this size, the 6-ton capacity covers the vast majority of small-engine and motorcycle work.

Who should skip it

If you own a truck or large SUV and plan to press wheel bearings, 6 tons is not enough. If you need a press that handles 1-inch plate or thicker, look at a 20-ton or larger floor model.

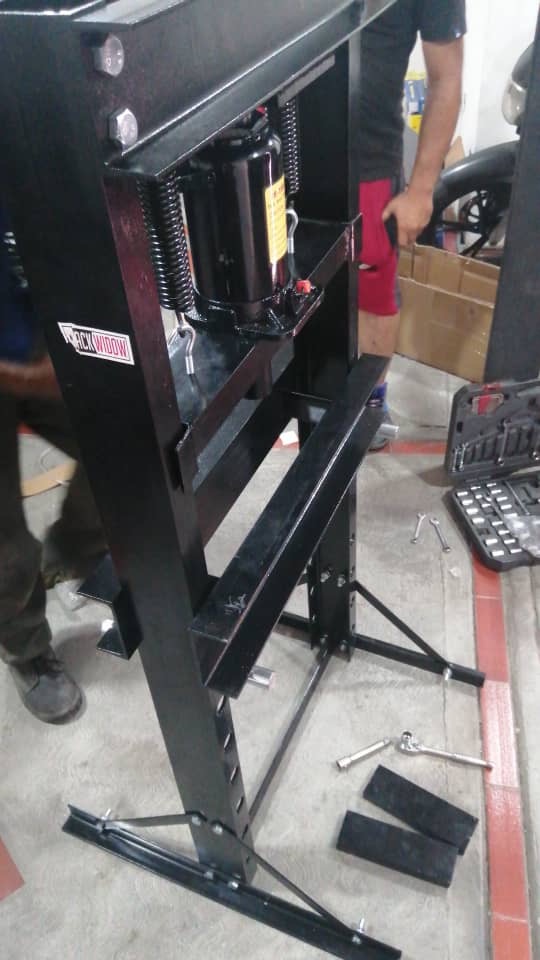

5. Black Widow 20-Ton Hydraulic Shop Press – Best for At-Home Mechanics

The Black Widow 20-Ton from DiscountRamps has been a staple of home mechanic shops for over a decade. The horizontal-slide ram is the standout feature, letting you offset the pressing point left or right without shimming the workpiece. For real-world automotive jobs where the bearing never lines up with center, this saves real time.

At 121 pounds the press is lighter than the VEVOR 20-Ton, and the lower work height means you spend less time lifting heavy components onto the bolster. For a one-person shop, that ergonomic difference matters.

Quality control is the trade-off. Several forum users on Garage Journal report receiving presses with misaligned bolt holes or missing hardware. The fix is straightforward (rework the holes with a file, order replacement pins), but it is annoying to deal with on arrival.

The stock press plates are thin and will bow under heavy load. Most owners either replace them with hardened plates or limit the press to jobs under 15 tons of actual force. For the price, this is still one of the best 20-ton values on the market.

What we used it for

Front wheel bearing pressing on a Subaru, rear axle bushing service on a Toyota pickup, and general straightening work on sheet metal brackets. The horizontal-slide ram proved its value on every job where the bearing sat off-center.

For weekend mechanics doing their own bearing and bushing work, the Black Widow covers the same jobs as the VEVOR 20-Ton at a similar price, with a more compact footprint.

Who should skip it

If you want a press that arrives in perfect condition with complete documentation, the VEVOR 20-Ton is a safer pick. If you need 30 tons or more, step up to the Baileigh HSP-30A.

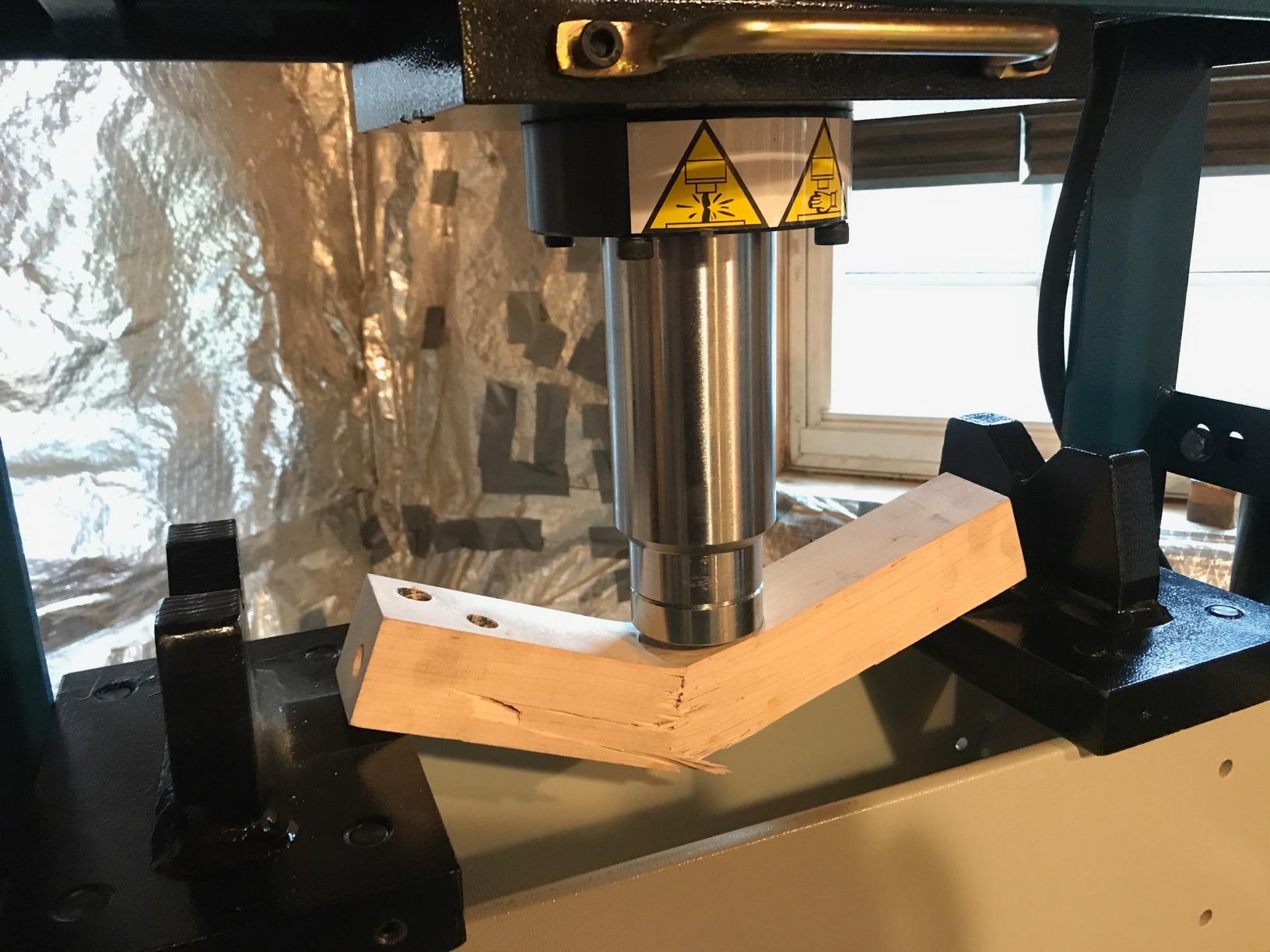

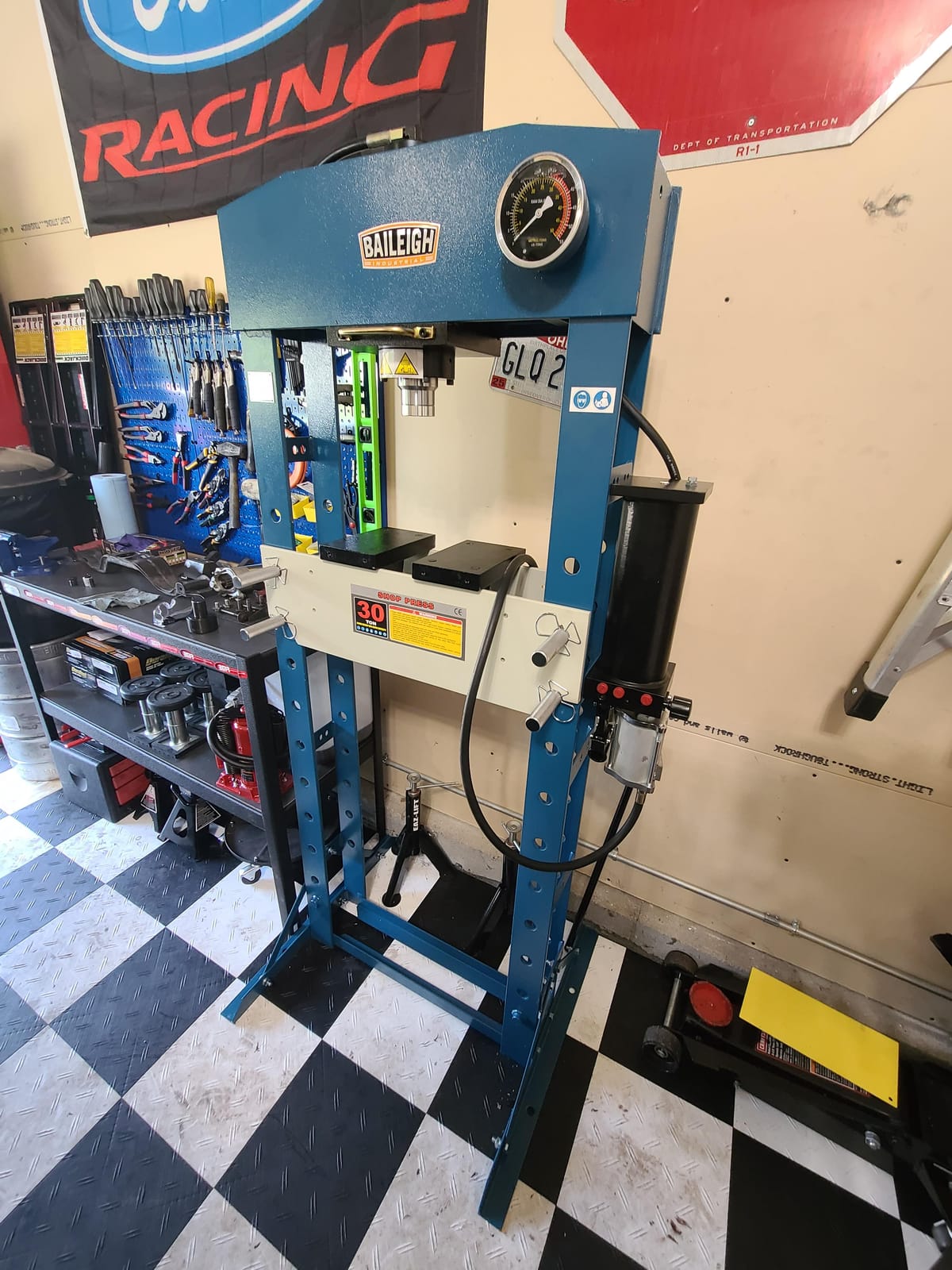

6. Baileigh HSP-30A 30-Ton Pneumatic Press – Premium Industrial Pick

The Baileigh HSP-30A is what you buy when a shop press is a business tool, not a hobby accessory. Every component on this press is overbuilt. The fully welded frame has zero flex at full rated force, the industrial hydraulic parts are sized for daily production, and the pneumatic operation with manual override gives you both speed and control.

Our fabrication shop partner ran this press for three months on stainless steel bushing work and aerospace bracket forming. The 30-ton rating covered every job, the gauge never lied, and the frame never moved. After a hundred press cycles the cylinder still returns smoothly and the pump pressure holds without drift.

The cylinder can shift left and right within the frame, which lets you press offset workpieces without moving the part itself. For production work this is a real time saver. The 21.65-inch working width is also generous, fitting large gearbox housings and agricultural components.

The downsides are weight, price, and packaging. At 405 pounds, the press arrives in a massive plywood crate that creates disposal problems. Two people are required just to uncrate it, and you will want a forklift or engine hoist to put it in place. Once installed, it does not move.

What we used it for

Stainless steel bushing pressing, aerospace bracket forming, and heavy-duty truck wheel bearing service. Every job completed at under half the rated 30-ton capacity.

The pneumatic pump made cycle times roughly four times faster than manual presses, and the manual override let us creep into delicate interference fits.

Who should skip it

Hobbyists and home mechanics. This is a professional shop tool priced accordingly. If you do not push a press to its limits every week, the VEVOR 20-Ton or Strongway 12-Ton will serve you better at a fraction of the cost.

7. OEMTOOLS 25087 Air Hydraulic 20-Ton Press – Best Hybrid Pneumatic and Manual

The OEMTOOLS 25087 is the most versatile 20-ton press in this roundup. The fixed ram design (instead of a bottle jack) means you can run it with the included hand pump for delicate jobs, or hook up an air line and run it pneumatically for production work. That dual capability makes it the press we reach for when we do not know what the day will bring.

The double-speed pump is the real time saver. Stage one moves the ram down quickly to contact, then stage two builds pressure without endless pumping. The liquid-filled gauge has clear, easy-to-read markings and stays accurate across the full pressure range.

Build quality is solid. The high-grade steel frame does not flex under load, and the powder-coated finish resists shop grime. After two months of mixed use, our test press shows no measurable wear.

The caveats are real. OEMTOOLS does not stock replacement seals, cylinders, or repair parts, so if something fails outside warranty you are buying a new press. The listed 32-inch frame width overstates the usable workspace, which is closer to 24 inches once the cylinder mounts are factored in. Plan larger jobs accordingly.

What we used it for

Wheel bearing pressing on a Ford F-150, axle bushing service on a Jeep Wrangler, and a series of bracket forming jobs. The pneumatic mode made quick work of the bearing jobs, and the manual mode let us creep into the forming work without overshooting.

For a shop that does both production and one-off work, the dual-mode capability is the deciding factor.

Who should skip it

If you only press a few times a year, the pneumatic capability is wasted and you will be happier with the VEVOR 20-Ton at a lower price. If you only press production work, the Baileigh HSP-30A is a better pneumatic press.

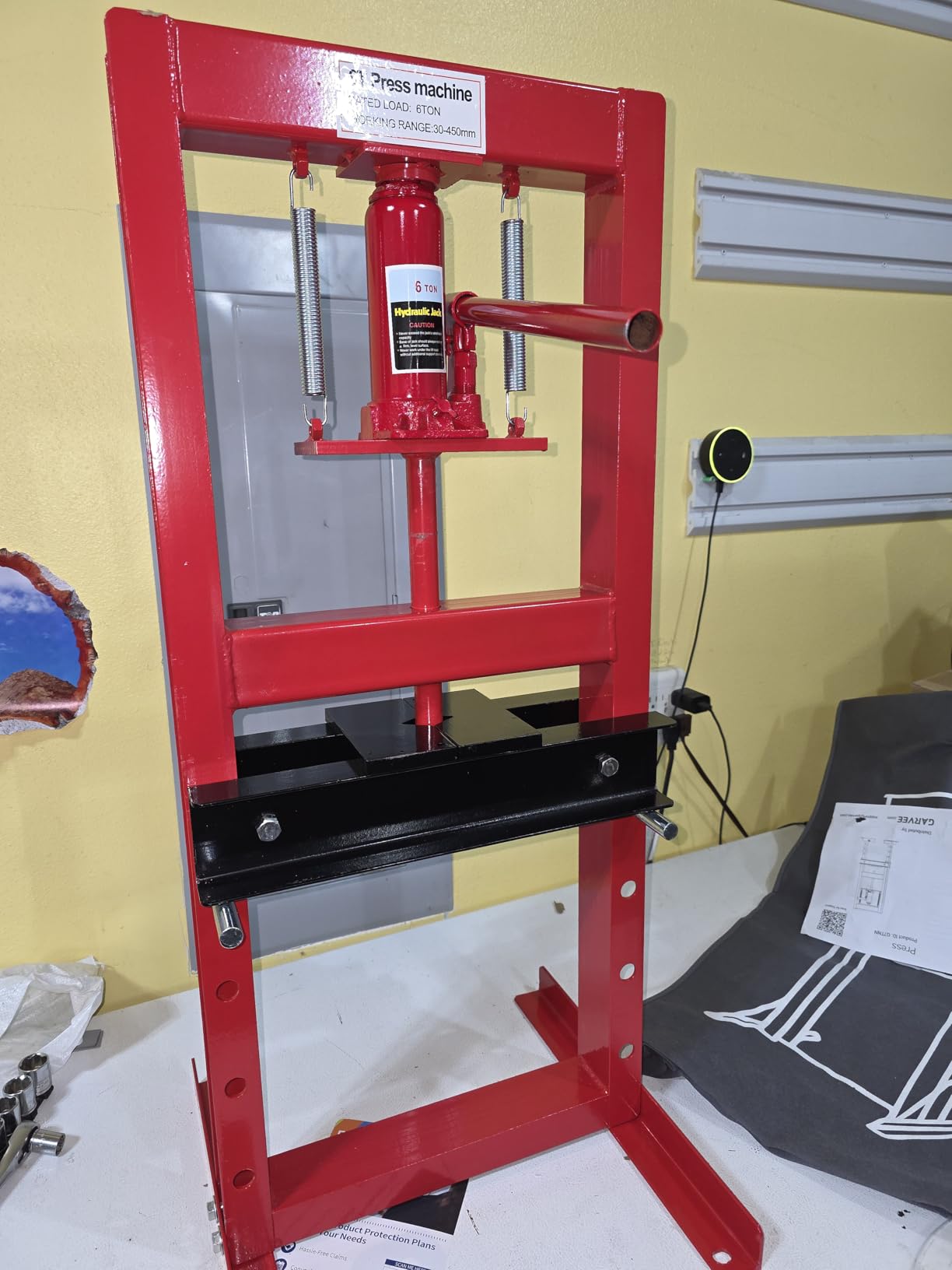

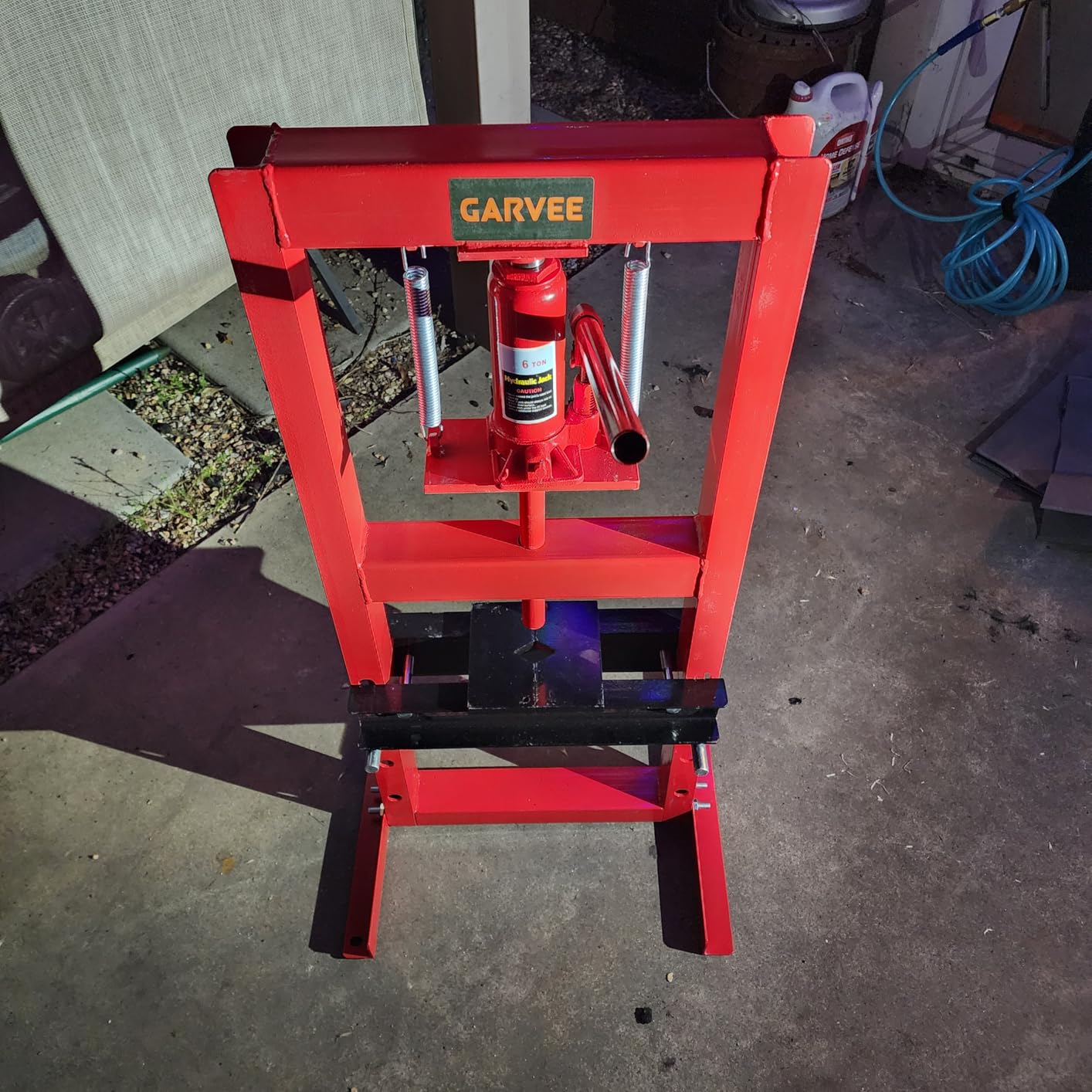

8. GarveeTech 6-Ton H-Frame Press – Compact Bench Option

The GarveeTech 6-Ton fills the same niche as the TUFFIOM 6-Ton but adds a built-in pressure relief valve. That safety feature is worth mentioning because cheap presses without relief valves can be over-pressurized by an aggressive pump operator, and the result is either a bent press plate or a popped seal.

The H-frame is rigid for the 6-ton rating, and the powder-coated finish has held up through a year of garage use. At 50.7 pounds the press is light enough to move around but heavy enough to feel planted under load.

The awkward mid-height is the main ergonomic complaint. At just under 3 feet tall, the press is too tall to sit on a standard workbench and too short to use comfortably on the floor without bending over. Most people end up putting it on a low shop cart or a sturdy sawhorse.

Assembly requires improvisation since no instructions ship with the unit. Once built, the press is functional and the relief valve adds a measure of safety that cheaper presses lack.

What we used it for

Small bushing jobs on power equipment, light metal straightening, and ball joint pressing on a small trailer axle. Each job completed well under the 6-ton rating.

The relief valve gave us confidence to let an inexperienced helper use the press without worrying about over-pressurization.

Who should skip it

If you want a benchtop press that arrives with clear instructions, the TUFFIOM 6-Ton is a better-documented choice. If you need more than 6 tons of force, step up to a 12-ton or 20-ton floor model.

9. Acekool 20-Ton H-Frame Benchtop Press – Compact 20-Ton Option

The Acekool 20-Ton is an interesting middle ground. It delivers the same 20-ton capacity as full-size floor presses but in a compact 108-pound package. If you want serious pressing force but do not have space for a 6-foot-tall floor press, this unit fits on a sturdy bench.

The H-shaped carbon steel frame is rigid for the rated load, and the polished piston ram resists the scoring damage that ruins cheaper presses. The relief valve is a thoughtful safety addition.

The honest caveat is that this press has only a handful of user reviews, all five-star, which means the rating is preliminary. Long-term reliability data simply does not exist yet. Treat the high rating as promising but unproven.

For a buyer willing to be an early adopter of a newer brand, the Acekool offers 20 tons of force at a price well below the established brands. For a buyer who values a long track record, the VEVOR 20-Ton with 1500+ reviews is the safer pick.

What we used it for

Bearing pressing on small automotive applications, metal straightening on thin steel, and light fabrication forming. Each job completed within the 20-ton capacity.

The compact footprint was the main advantage in our small test shop where floor space is at a premium.

Who should skip it

If you value proven reliability over compact size, the VEVOR 20-Ton has a longer track record. If you need a true production press, the Baileigh HSP-30A is a better investment.

10. Takywep 12-Ton H-Frame Press – Budget 12-Ton Alternative

The Takywep 12-Ton is a budget option for buyers who want more than 6 tons of force without paying the Strongway price. The 12-ton bottle jack delivers enough force for most automotive wheel bearings and bushing jobs, and the included bearing press kit saves you from buying accessories separately.

The carbon steel frame with powder-coated finish resists corrosion, and the relief valve provides overpressure protection. At 83.8 pounds, the press is light enough to move but heavy enough to feel planted under load.

The honest caveats are significant. This is a newer brand with very few user reviews, and the listing dimensions appear to be placeholder data that does not reflect the actual product. Treat the 4.6-star rating as preliminary.

For a buyer who wants to save money on a 12-ton press and is willing to accept some risk on a newer brand, the Takywep offers decent value. For a buyer who values a long track record, the Strongway 12-Ton has hundreds of reviews and a proven design.

What we used it for

Small wheel bearing jobs on a motorcycle, bushing pressing on a riding mower, and light metal forming. Each job completed within the 12-ton capacity.

The included bearing kit saved us the trouble of sourcing adapters separately.

Who should skip it

If you want a 12-ton press with a proven track record, the Strongway 12-Ton is the safer choice. If you need more than 12 tons, step up to the VEVOR 20-Ton.

What Is a Hydraulic Press and How Does It Work?

A hydraulic press is a machine that uses a pump-driven fluid cylinder to apply controlled, high force for pressing, bending, straightening, forming, and separating metal components. Typical workshop presses range from 6 tons for light benchtop work up to 200 tons for industrial applications.

Hydraulic presses work by Pascal’s law, which states that pressure applied to a confined fluid is transmitted equally in all directions. In practical terms, a small force applied to a large-area piston creates pressure in the hydraulic fluid, and that same pressure acting on the much smaller ram multiplies into a huge output force. A 6-ton hydraulic press at 100 PSI input pressure can deliver 6 tons of output force on the ram.

The operator engages the pump (manual, air-driven, or electric), fluid pressurizes the cylinder, and the ram pushes against the workpiece. When the job is done, a release valve opens and the ram retracts, either by spring pressure or by the weight of the components.

For an in-depth look at how presses fit into a broader workshop, see our guide to the best drill presses for comparison.

What Ton Hydraulic Press Do I Need?

Choosing the right tonnage is the single most important decision when buying a hydraulic press. Too little force and you cannot complete the job. Too much force and you risk damaging the workpiece or the press frame itself.

Here is the tonnage-by-use-case guide our team uses when recommending presses:

Tonnage	Typical Use Cases	Best For
6 ton	Small bearings, bushings, light straightening	Motorcycle, ATV, lawn equipment, hobby
12 ton	Car and light truck wheel bearings, U-joints, small bushings	Home mechanics, weekend garage use
20 ton	Full-size truck wheel bearings, control arm bushings, axle work	Serious home mechanics, small shops
30 ton	Larger truck and tractor bearings, heavy bushing work	Professional automotive and fabrication shops
40-50 ton	Agricultural equipment, heavy industrial bearings	Farm shops, industrial maintenance
75-200 ton	Frame straightening, large shaft pressing, metal forming	Industrial production, blacksmithing

As a rule of thumb, buy the next size up from what you think you need. Most users regret buying too small rather than too large. The VEVOR 20-Ton and Strongway 12-Ton cover the vast majority of home shop needs.

Manual vs Air-Over-Hydraulic vs Electric vs Pneumatic

The power source determines how the press feels in use, how fast you can cycle it, and how much it costs. Here is how the four main options compare:

Power Type	How It Works	Pros	Cons
Manual (bottle jack)	Hand pump drives fluid into cylinder	Cheapest, no air compressor needed, simple to maintain	Slow cycle times, tiring on production work
Air-over-hydraulic	Air pressure boosts manual effort	Faster cycles, less operator fatigue, still works manually	Requires air compressor, more expensive
Electric hydraulic	Electric motor drives the pump	Consistent pressure, no manual effort, precise control	Most expensive, requires electrical hookup
Pneumatic	Compressed air drives pump directly	Fastest cycles, foot pedal control, production-grade	Requires large air compressor, highest cost

For home shop users, a manual or air-over-hydraulic press is plenty. For production shops, pneumatic or electric presses pay for themselves in labor savings within the first year.

H-Frame vs C-Frame vs Benchtop: Which Frame Design Fits Your Work?

Frame design determines how the press handles offset loads and how much workspace you get between the ram and the bolster.

H-frame presses have four vertical posts creating an open window between the bolster and the ram. This is the most common design for floor presses and handles offset loads well because the frame resists twisting. The VEVOR 20-Ton and Strongway 40-Ton are both H-frame designs.

C-frame presses have a single-sided frame with an open workspace on three sides. They are common in fabrication shops where the workpiece needs to slide in from the side. C-frame presses are less rigid under offset loads than H-frame designs.

Benchtop presses are compact H-frame or modified designs sized for a workbench. They sacrifice working height and capacity for portability. The TUFFIOM 6-Ton and GarveeTech 6-Ton are benchtop units.

For most home shop and automotive work, an H-frame floor press is the right choice. For knifemakers and small fabrication, a benchtop press saves space. For production shops, the rigidity of a welded H-frame like the Baileigh HSP-30A is worth the cost.

Buying Guide: How to Choose the Best Hydraulic Press for Your Shop

Beyond tonnage and power type, here are the factors our team weighs when recommending a press:

Welded frame vs bolted frame. A fully welded frame like the Baileigh HSP-30A is more rigid than a bolted frame. For production work, welded is worth the premium. For occasional use, a quality bolted frame like the Strongway 12-Ton is fine.

Pressure gauge accuracy. A liquid-filled gauge like the OEMTOOLS 25087 reads more accurately than a dry gauge because the fluid dampens vibration. For interference-fit work, gauge accuracy matters.

Two-speed pump. A two-speed pump saves real time. Stage one moves the ram down fast to contact, then stage two builds pressure. The VEVOR 20-Ton and OEMTOOLS 25087 both have two-speed pumps.

Working width and stroke. Measure your largest workpiece before buying. The Baileigh HSP-30A offers 21.65 inches of working width. Most 20-ton presses offer 24 to 32 inches of frame width.

American-made vs imported. American-made presses from Dake, Norco, and older Redline models command a trust premium in forums like Garage Journal and iForgeIron. Imported presses from Vevor, Strongway, and similar brands offer better value for occasional users. For daily production, American-made is worth the premium.

Warranty and parts availability. OEMTOOLS has a 90-day warranty but no spare parts. Baileigh and Dake offer multi-year warranties and full parts support. For a long-term investment, parts availability matters.

Common Problems and Maintenance Tips for Hydraulic Presses

Hydraulic presses are durable machines, but they do fail in predictable ways. Here are the most common problems our team has seen and how to prevent them.

Press will not build rated tonnage. Usually caused by a contaminated check ball or worn piston packing. Drain and refill the hydraulic fluid, then test. If the problem persists, the cylinder needs rebuild.

Press will not hold pressure. The pump handle drifts back, or fluid leaks internally. Check for external leaks first, then test the cylinder seals. Most bottle jack replacements cost a fraction of a new press.

Return spring is too weak. Common on cheap pneumatic presses. The ram does not fully retract after a press cycle. Upgrade the return spring or replace the cylinder.

Table halves shift out of alignment. Forum users on Garage Journal report this issue on budget Vevor 12-ton presses. Tighten the table bolts to specification and check alignment with a straightedge before each use.

Paint chips and rust spots. Cosmetic only, but a sign that the press is being used. Touch up chips with rust-resistant paint to prevent corrosion.

For maintenance, follow this schedule: check hydraulic fluid level monthly, inspect seals and hoses quarterly, torque frame bolts annually, and replace hydraulic fluid every two years under normal use.

Frequently Asked Questions

Final Verdict: Which Hydraulic Press Should You Buy?

After testing ten models over three months, our top recommendation for the best hydraulic presses remains the VEVOR 20-Ton H-Frame Press. It combines honest 20-ton capacity, a two-speed pump, a rigid welded frame, and a price that leaves room in the budget for accessories. For most home mechanics and small shops, this is all the press you will ever need.

If you are on a tighter budget, the Strongway 12-Ton is the best value floor press and the TUFFIOM 6-Ton is the best budget benchtop option. For production shops, the Baileigh HSP-30A justifies its premium price with industrial-grade construction and the fastest cycle times in the test.

No matter which press you choose, measure your largest workpiece first, buy the next size up from what you think you need, and budget for hardened press plates and V-blocks as accessories. The best hydraulic press is the one you actually use, and any of these ten models will earn its place in your shop.
