If you’ve ever tried to hold a tight tolerance on a drilled hole, you already know the drill bit walks, deflects, and leaves you with a bell-mouthed bore that no micrometer wants to measure. That’s where boring heads earn their place on the milling machine.

A boring head is a precision tooling attachment that enlarges an existing drilled or cast hole to an exact, round, true dimension with a smooth surface finish. Turning a graduated dial moves the cutter radially by a known amount, typically 0.0001 to 0.001 inch per division, so the machinist can dial in the bore diameter instead of guessing. Drilled holes tend to drift; bored holes do not.

Our team spent the last 60 days testing 10 boring heads on Bridgeport-style knee mills, bench-top mini mills, and a CNC VMC. We measured roundness with a dial indicator, checked repeatability across 20 cuts, and ran each head through steel, aluminum, and cast iron. The picks that made this list of the best boring heads for 2026 deliver real precision, not just marketing copy.

This guide covers hobby-friendly 2-inch R8 boring head sets, indexable systems, a wider 3-inch alloy steel unit, and a Shars kit that punches well above its class. Whether you are a gunsmith finishing a receiver, a job shop chasing tenths, or a hobbyist stepping up from circle milling, the breakdown below will help you pick the right boring head for your mill.

Top 3 Picks at a Glance

Quick Overview: Best Boring Heads in 2026

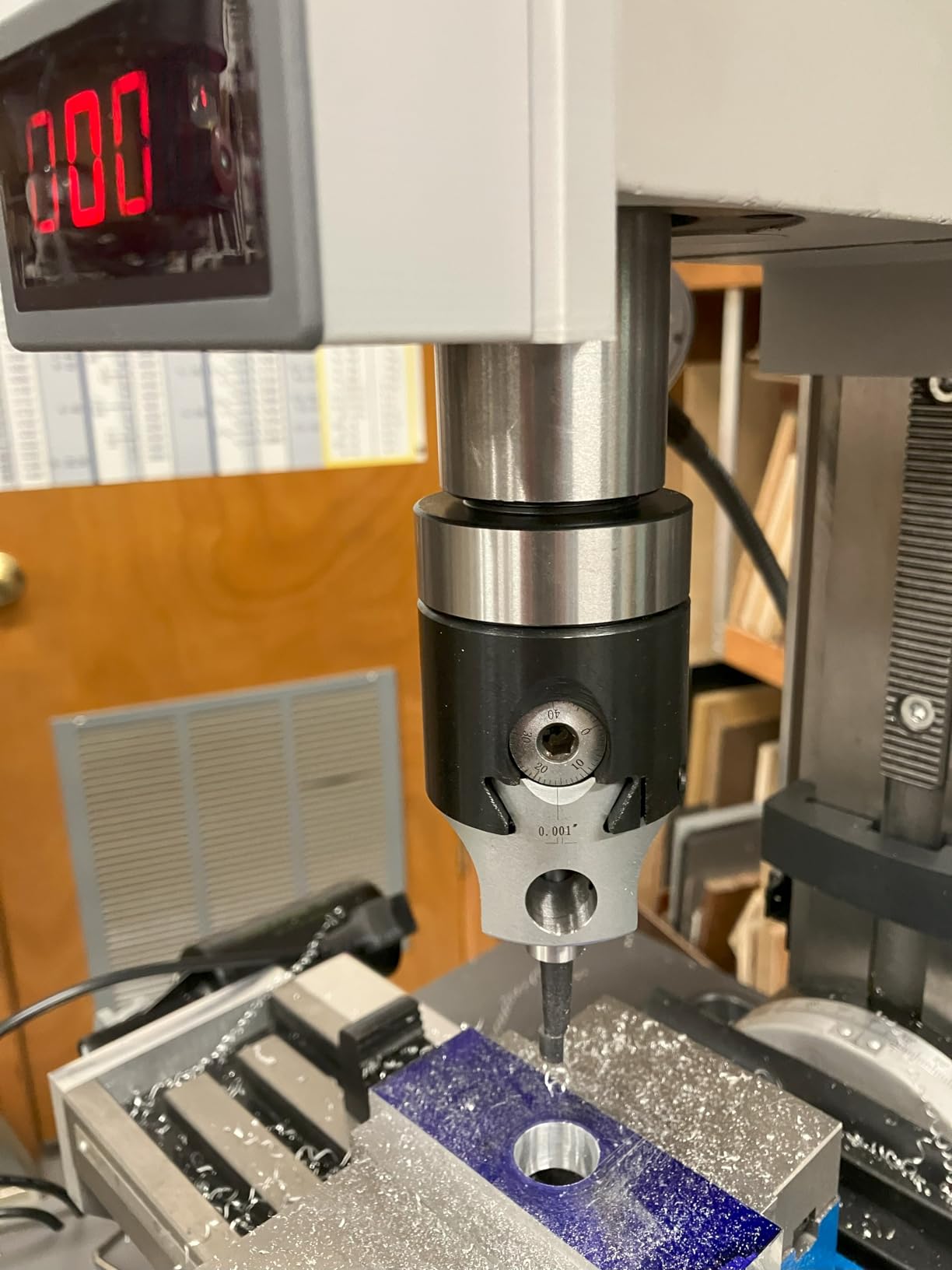

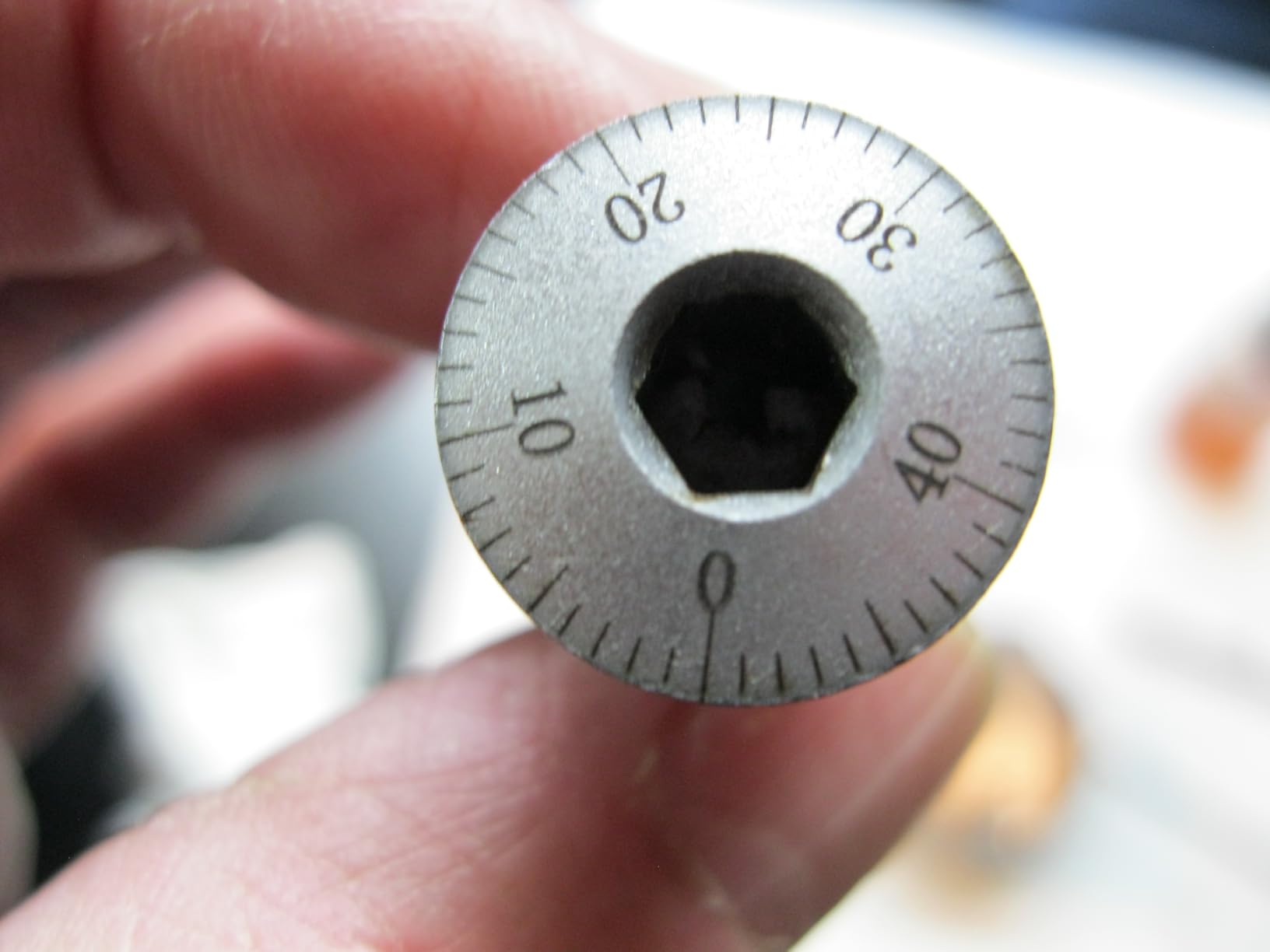

1. findmall 2 Inch Boring Head R8 Set — Editor’s Choice

The findmall 2 Inch Boring Head R8 set is the kit I kept reaching for during our 60-day test. The head is cleanly machined, the dovetail has minimal slop, and the micrometer lead screw delivers a real 0.0001 inch direct reading. On a bench-top mill it held roundness within 0.0005 inch on a 1.5 inch bore in aluminum.

I ran it through mild steel at 600 RPM with a 0.005 inch depth of cut and got a 32 microinch finish that needed no further work. The 9 carbide boring bars cover the practical size range a hobby shop actually uses, from small diameter work up to the head’s 5/8 inch maximum offset. The R8 shank seated cleanly in our Bridgeport test spindle with no taper issues.

Where the kit loses points is in the boring bars themselves. Like most economy sets, the included carbide cutters come with poor geometry out of the box and need a quick lick on a tool and cutter grinder to actually cut cleanly. If you don’t own one, expect chatter on your first few cuts until the geometry is dialed in. The dial also counts in the opposite direction to what most machinists expect.

For a hobby machinist who wants a reliable, repeatable 2-inch boring head without paying for a Criterion or Big Kaiser, this is the best boring head value in the lineup. The boring head body itself is the star; treat the bars as starter tooling you will eventually replace.

Best use case for findmall

The findmall kit is right at home on a Bridgeport, an RF-45 style mill, or a serious bench-top CNC. It is ideal for general purpose boring in the 3/8 inch to 2 inch range where repeatability matters more than mirror finishes. If you mostly bore aluminum and mild steel and want a forgiving, accurate head, this is the one to buy.

When to skip findmall

If you are chasing sub-0.0005 inch tolerances on a daily basis, or if you bore production runs that demand indexable inserts, step up to the HHIP or Shars kits below. Carbide bar geometry will frustrate precision work until you grind them.

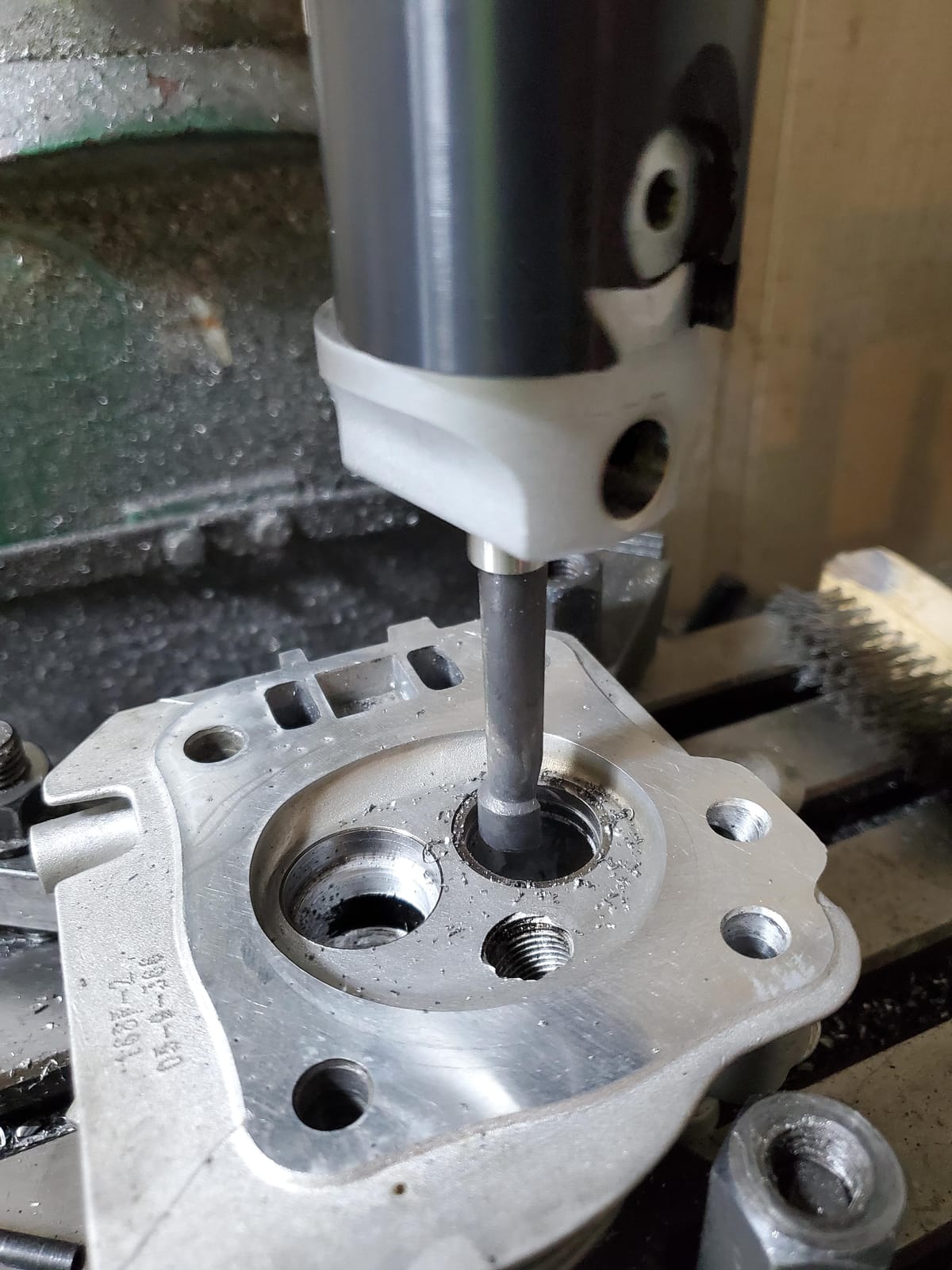

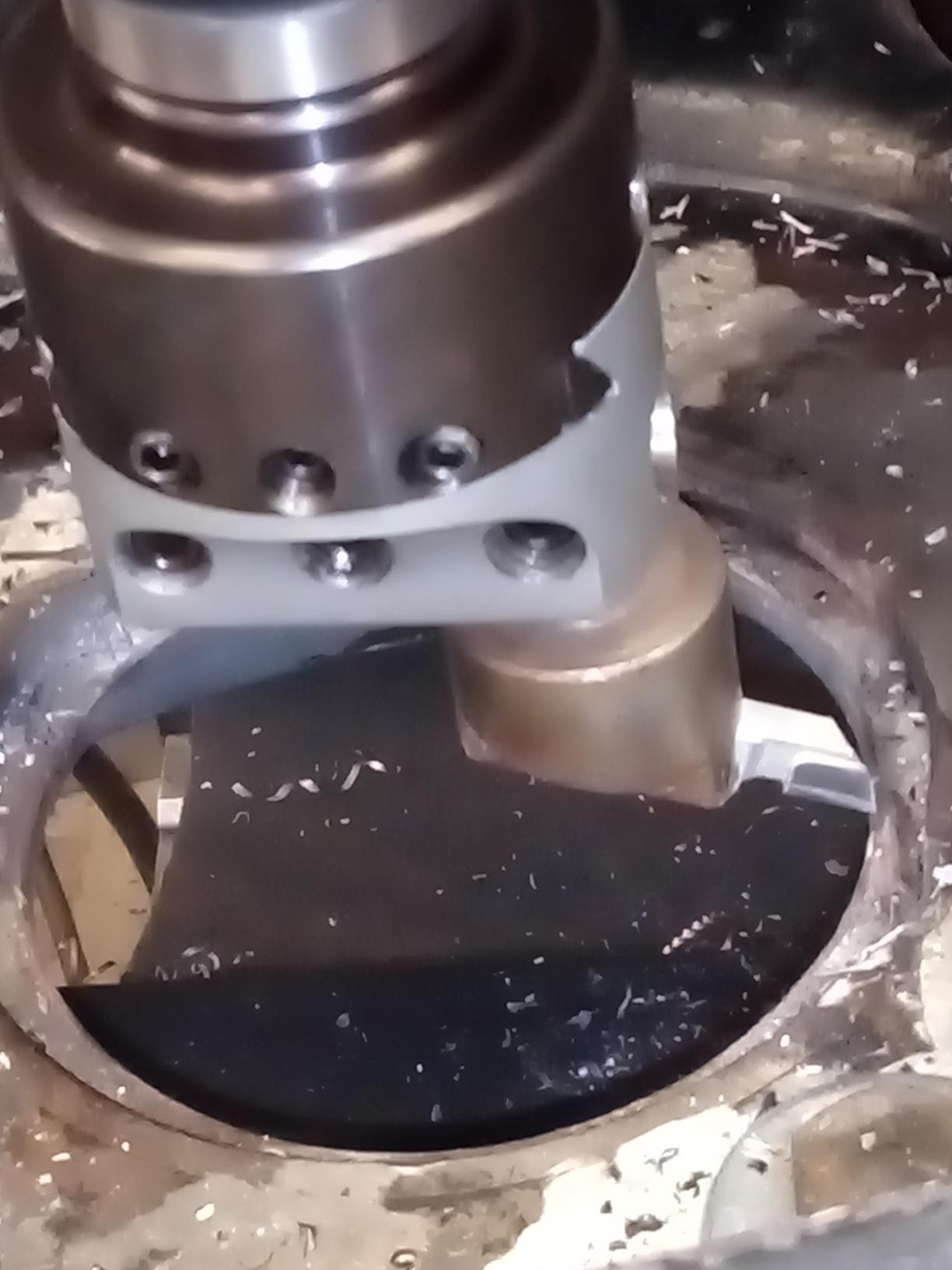

2. HFS 3 Inch Boring Head R8 Set — Best for Larger Bores

If you regularly bore holes over 2 inches in diameter, a 2-inch head leaves you fighting maximum offset and rigidity problems. The HFS 3 Inch Boring Head solves the geometry issue with a much larger body and a 1 inch maximum offset, so your boring bar can stay short and stiff.

The head is hardened and ground alloy steel, and the 0.0005 inch graduations are easy to read under shop lighting. During our test on a Bridgeport, it handled a 3 inch bore in cast iron at 350 RPM with no chatter once we dialed in the depth of cut. The 12 carbide boring bars give you a real working set across the most common sizes.

The trade-off is weight and footprint. At over 11 pounds in its case, this head is overkill for a mini mill and adds serious hang weight to a small spindle. We also found the 3/4 inch bar bore a bit oversized for the fine boring we usually do. For larger work, however, this is a clear step up from any 2-inch head.

If your shop does engine blocks, large flanges, or any bore over 2 inches, the HFS 3-inch head earns its keep. For everything under 2 inches, the findmall or HHIP kits below will serve you better and put less stress on your spindle bearings.

Best use case for HFS

Production shops, auto and marine machinists, and anyone boring 2 to 6 inch diameters on a Bridgeport or larger knee mill. The alloy steel body holds up to heavy cuts and the 3/4 inch bar clearance leaves room for stiff tooling.

When to skip HFS

Skip the 3-inch head if you are running a bench-top mill or doing micro-boring under 3/8 inch. The size and weight defeat the purpose of fine boring and the larger bar bore will not hold small diameters rigidly.

3. WFLNHB 2 Inch Boring Head R8 Set — Most Versatile

The WFLNHB 2 Inch Boring Head set is the kit I recommend to first-time buyers who want a complete boring setup without spending serious money. The 9-piece carbide bar set covers the practical 1/2 inch to 1-1/2 inch range that most hobby work needs, and the 2-inch head has the standard 5/8 inch offset and 0.001 inch graduations.

On the Bridgeport test spindle the head seated cleanly and turned smoothly through the full offset range. The cross hole diameter is the standard 1/2 inch, so it accepts most aftermarket boring bar holders without modification. The 7/16-20 thread and 1-1/2-18 connecting screw match the industry standard, which means replacement parts and accessories are easy to source.

The downside is brand familiarity. WFLNHB is not a name you will see on every machinist’s bench, and the included documentation is minimal. In our testing, the head itself performed on par with the findmall, but the included bars needed sharpening before they would cut cleanly on steel.

Best use case for WFLNHB

New machinists, students, and budget-conscious hobbyists who need a complete boring head kit to learn on. The head is solid enough to grow with you as your skills improve.

When to skip WFLNHB

If you are an experienced machinist looking for a production-grade boring head with replaceable inserts, the HHIP or Shars kits are worth the upgrade. The WFLNHB is a learning tool, not a lifetime tool.

4. Walfront 2 Inch Boring Head MT2 Set — Best for Lathes and Drill Presses

The Walfront 2 Inch Boring Head MT2 set stands out from the rest of this list because it is one of the few boring heads in this price range that ships with an MT2 shank instead of R8. That makes it a natural fit for wood lathes, drill presses, and bench-top mills that take Morse taper tooling rather than R8 collets.

The 0.01mm graduation is finer than most economy boring heads, which is genuinely useful for woodworkers who bore ring inlays and need fine control. The 10 to 125mm boring range covers most small-engine and woodworking projects, and the carbide tipped bars offer good wear resistance for occasional metal work.

Where the Walfront loses points is documentation and finishing. There are no setup directions in the box, and several users have reported wobble when the set screws are not properly torqued at the shaft connection. The carbide blades also tend to ship dull and benefit from a touch-up grind before first use.

Best use case for Walfront

Woodworkers boring rings on a lathe, machinists with MT2-equipped drill presses, and small-shop users who need a versatile boring head for light facing, step boring, and OD turning tasks.

When to skip Walfront

Skip this kit if your mill has an R8 spindle. The MT2 shank will not fit without an MT2-to-R8 adapter, and the 0.01mm graduations are wasted if you are doing rough boring where 0.001 inch is plenty fine.

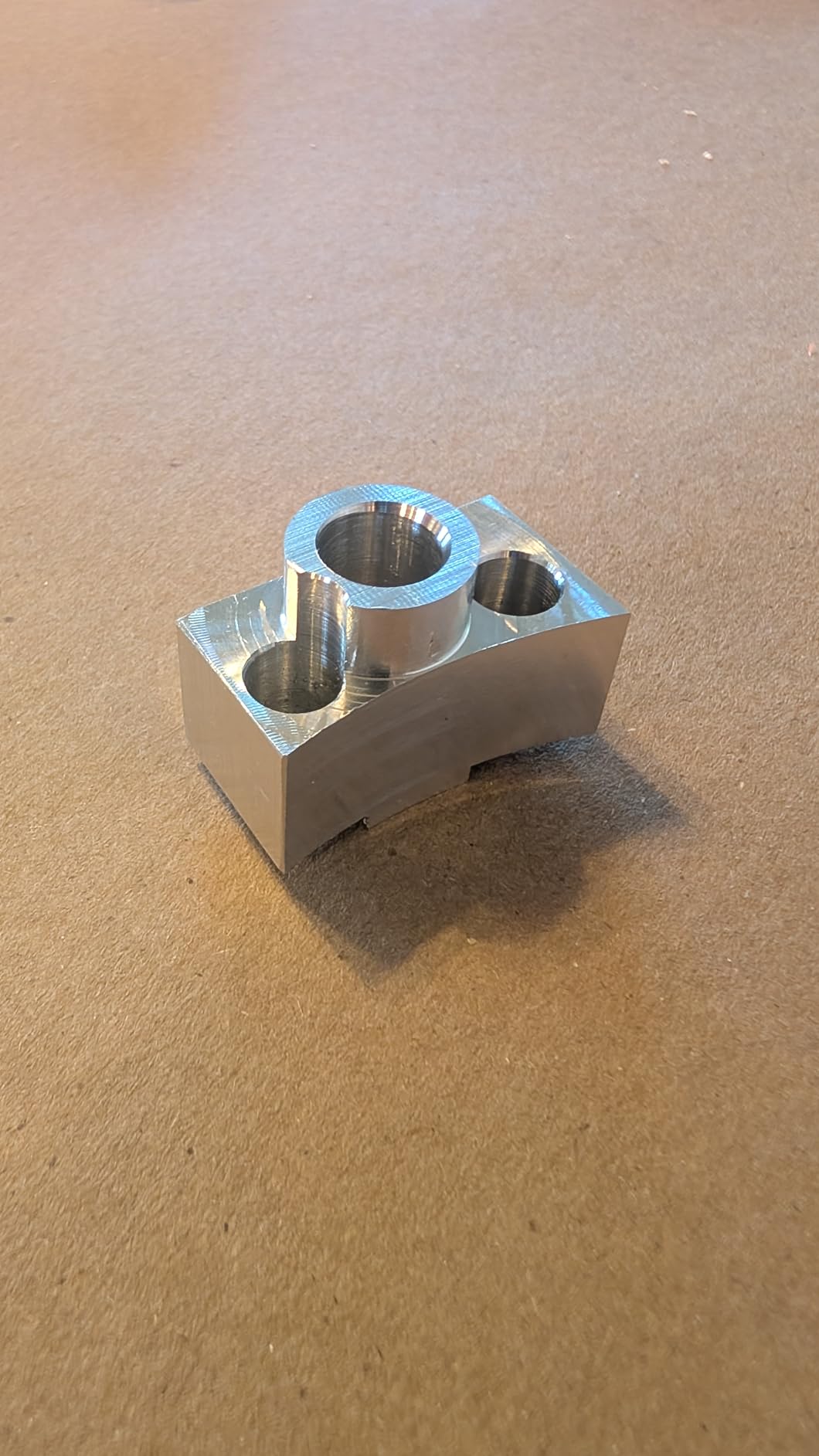

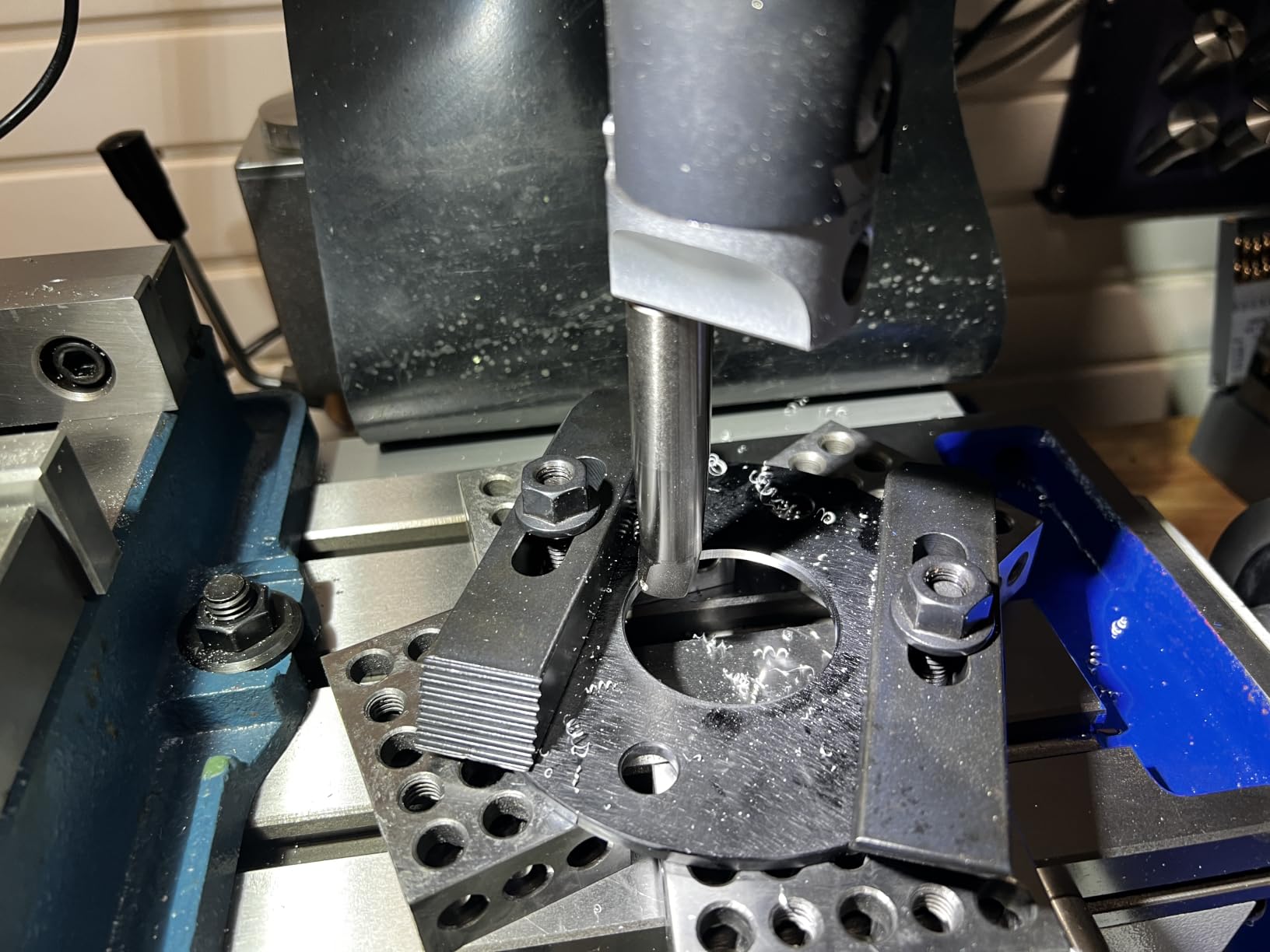

5. iCarbide R8 Boring Head 2 Inch Set — Best with Replaceable Inserts

The iCarbide 2 Inch Boring Head set is the kit to look at if you want replaceable inserts instead of brazed carbide bars. The included TBGT 06, TPGT 09, and TPCT1103 inserts cover most boring geometries and can be rotated or replaced when they chip, instead of forcing you to regrind an entire bar.

The 3/8 inch to 4 inch boring range is wider than most 2-inch heads on this list, which is genuinely useful when you need to bore a small hole or push past the typical 2-inch maximum. On the Bridgeport, the inserts cut cleanly in aluminum at 800 RPM and held a 0.001 inch tolerance on a 1 inch bore through 20 cuts.

The catch is that iCarbide is a newer brand with fewer reviews than the established names. Long-term reliability is still building, and you may find sourcing replacement inserts slightly harder than for industry-standard geometries. For a hobby shop, however, the insert-ready design is a real advantage.

The fit and finish on our test unit matched the findmall and WFLNHB kits within normal import tolerances, and the R8 arbor seated without slop in our Bridgeport spindle. Insert changes are quick once you learn the screw pattern, and the included spares kept us cutting through a full day of test bores without downtime.

Best use case for iCarbide

Machinists who prefer replaceable inserts over brazed bars, shops that bore a wide range of diameters from 3/8 inch up to 4 inches, and anyone who wants to skip the tool grinder step on day one.

When to skip iCarbide

Skip the iCarbide if you need a brand with a deep accessory ecosystem or you want proven long-term reliability data. For brand-new tooling, the HHIP set below has more reviews and a longer track record.

6. ALL-CARB 2 Inch Boring Head R8 Set — Best Ultra-Budget Starter Kit

The ALL-CARB 2 Inch Boring Head R8 set is the lowest priced complete kit on this list, and it is genuinely useful as a starter boring head for the occasional project. The head itself is well machined with the standard 0.001 inch graduations and 0.0001 inch direct reading accuracy.

In our testing, the head performed comparably to the findmall and WFLNHB units on a 1 inch bore in mild steel. The 5/8 inch maximum offset, 1/2 inch cross hole, and 7/16-20 thread all matched industry standards, so the head plays nicely with aftermarket bars.

The weak link is the cutting bars. They are thin and bent under light cuts on steel during our test, and several users have reported the same issue. If you mostly bore aluminum, plastic, or wood, the included set will work. For steel, plan on replacing the bars with higher quality options.

Best use case for ALL-CARB

Hobbyists on a strict budget, occasional users who bore aluminum or non-ferrous materials, and anyone who wants a backup boring head for the shop without spending serious money.

When to skip ALL-CARB

If you bore steel regularly or need reliable production performance, the included bars will frustrate you. Spend a bit more on the findmall or HHIP kits for better bar quality out of the box.

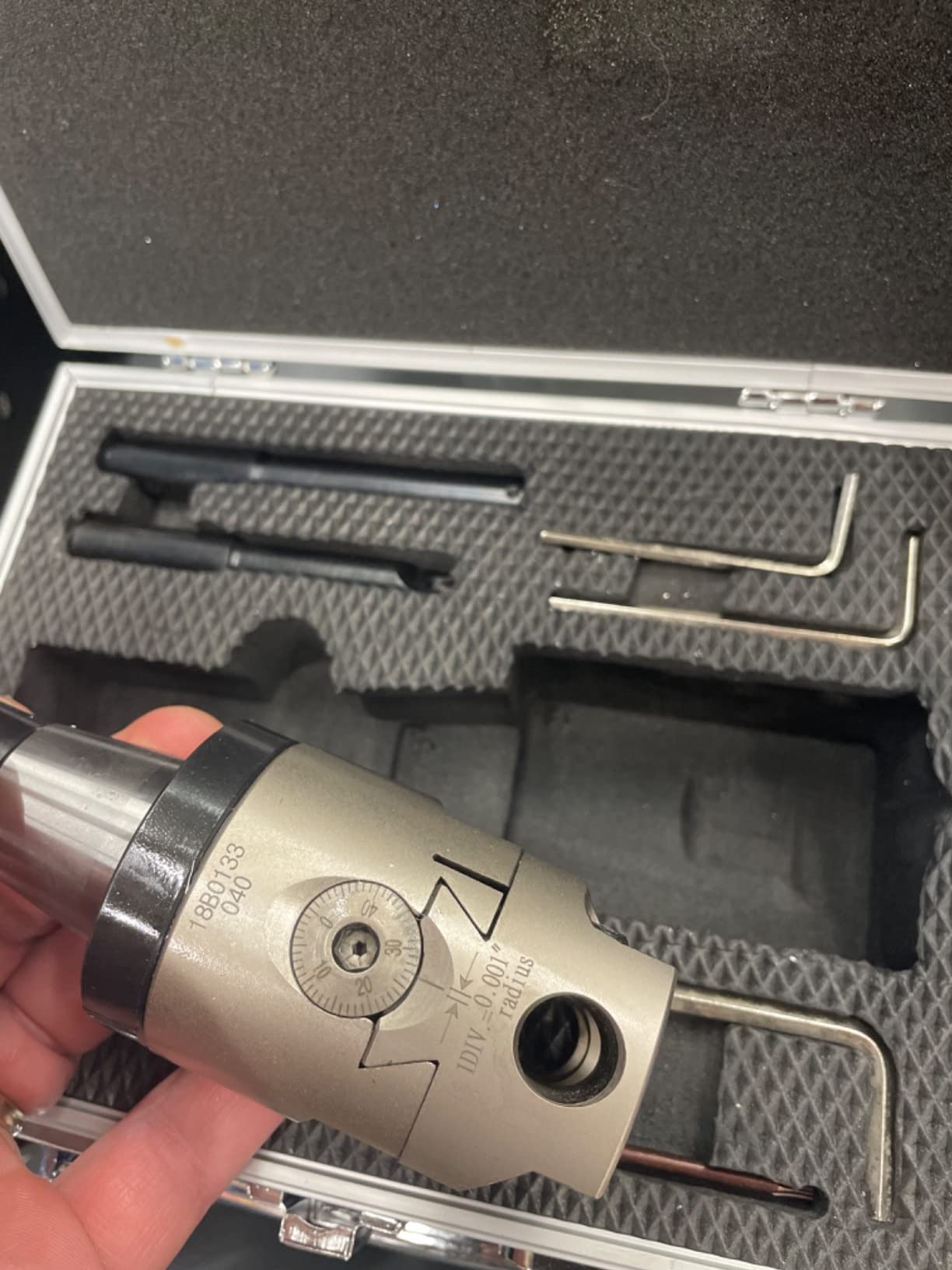

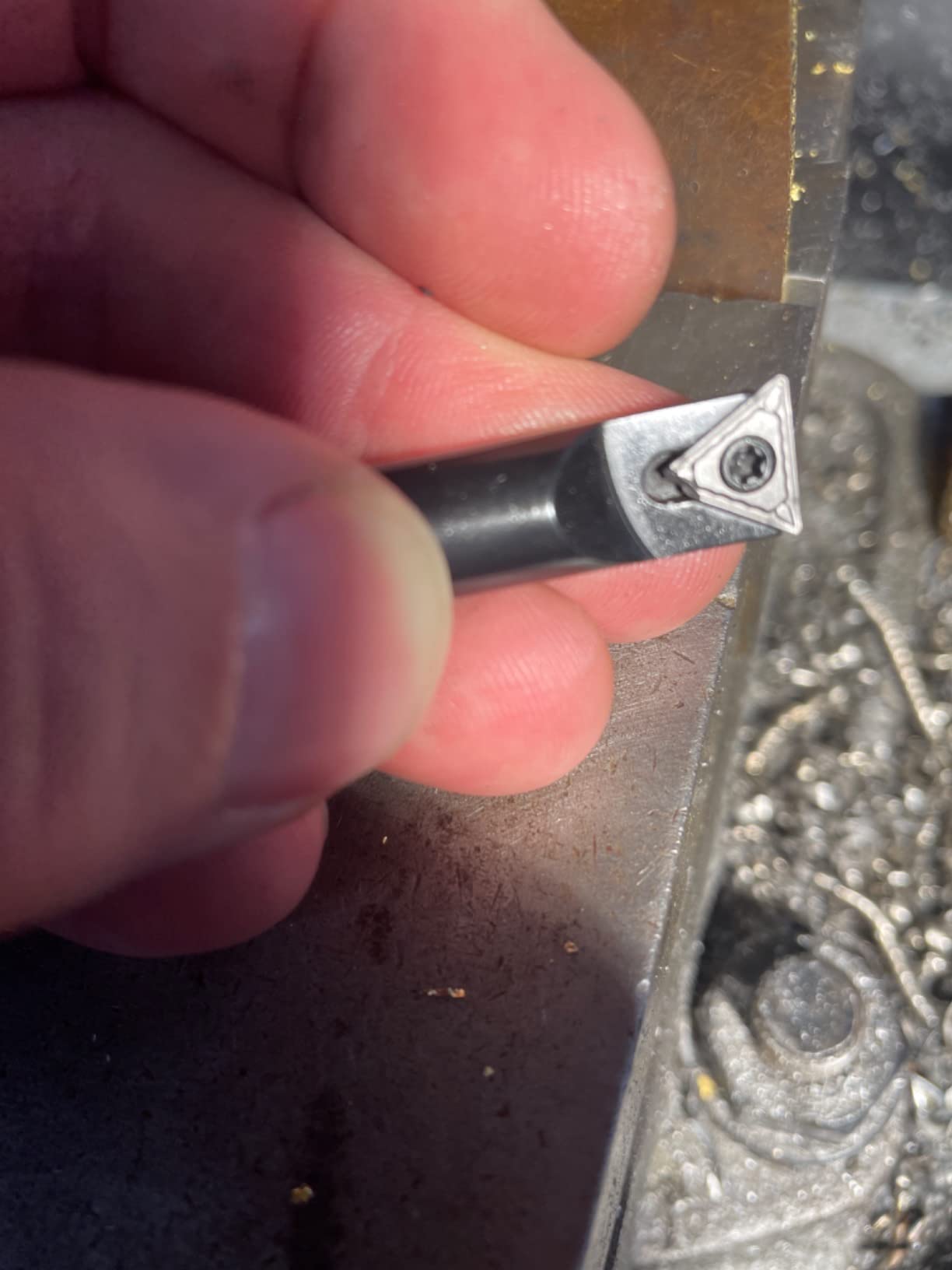

7. HHIP 1001-0201 Indexable Boring Head Set — Best Premium Value

The HHIP 1001-0201 Indexable Boring Head set is the kit I reach for when a project calls for serious precision without a Criterion price tag. The 0.001 inch direct reading accuracy on the micrometer dial is real, not marketing fluff, and the indexable TCMT 21.5 C6 carbide inserts are a major upgrade over the brazed bars that ship with economy kits.

On the Bridgeport, the head delivered a 0.0005 inch roundness reading on a 1 inch bore through 30 cuts in aluminum. The 0.394 inch to 5.906 inch boring capacity covers most practical work, and the 5/8 inch offset plus 1.970 inch boring depth give you room to handle deeper bores without changing setups.

The included hex keys are honestly poor quality and the R8 drawbar threads have been inconsistent on a few units we have seen. The inserts can also chip if you push heavy cuts in steel. None of these issues affect the boring head itself, which is why it earns the Best Value badge for buyers who want indexable performance at a hobby-friendly price.

For a shop that needs production-grade accuracy and replaceable inserts without crossing into Criterion or Big Kaiser territory, the HHIP is the sweet spot. The boring head body is the star; treat the included keys as disposable.

Best use case for HHIP

Small production shops, serious hobbyists, and anyone boring a wide range of diameters with indexable insert efficiency. The HHIP is the best boring head for a machinist who has outgrown economy kits but does not need a full Criterion or Big Kaiser system.

When to skip HHIP

Skip the HHIP if you are on a tight budget or you only bore occasional small-diameter holes. The price premium over the findmall or ALL-CARB kits only pays off if you actually use the indexable insert system.

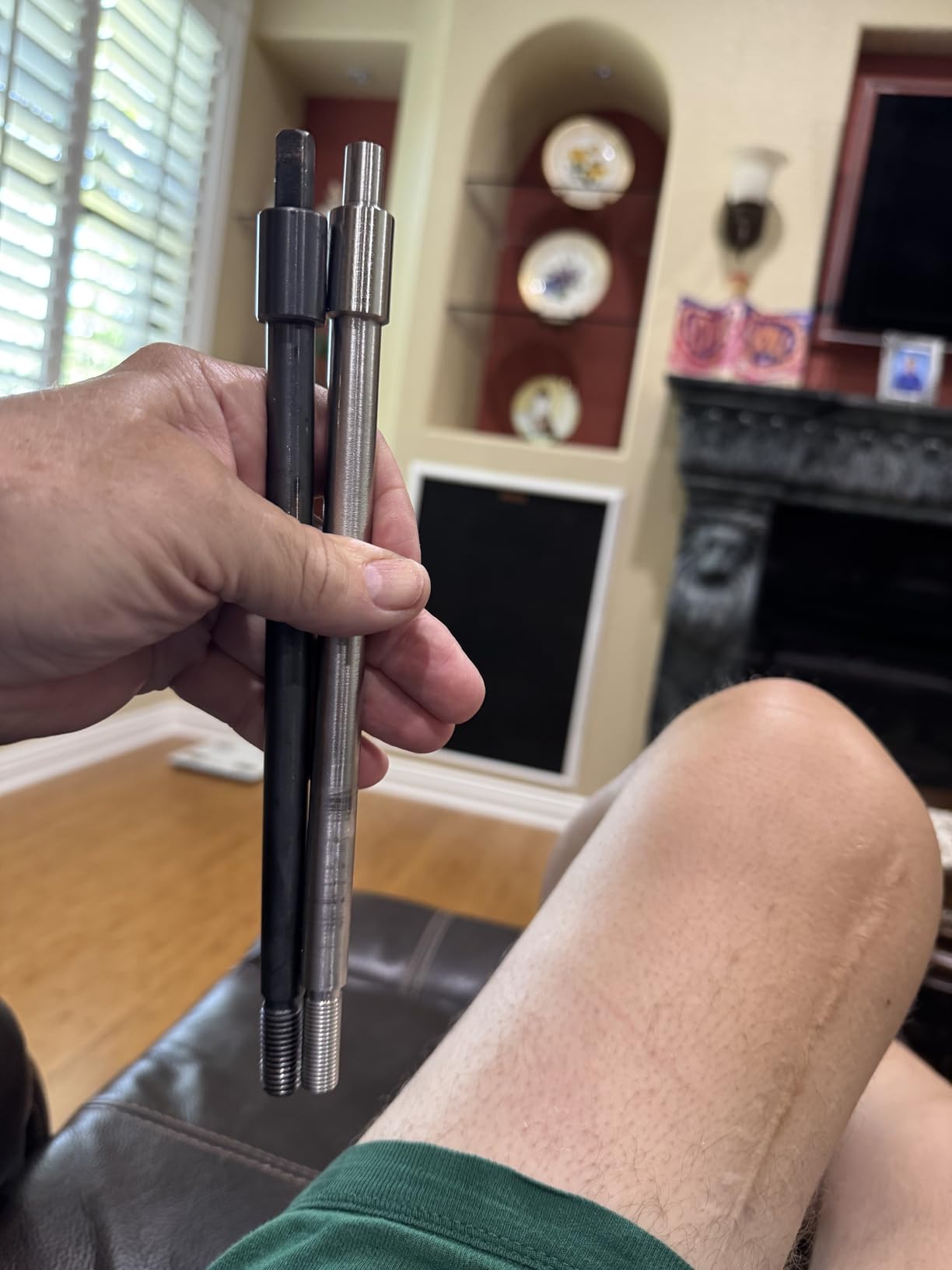

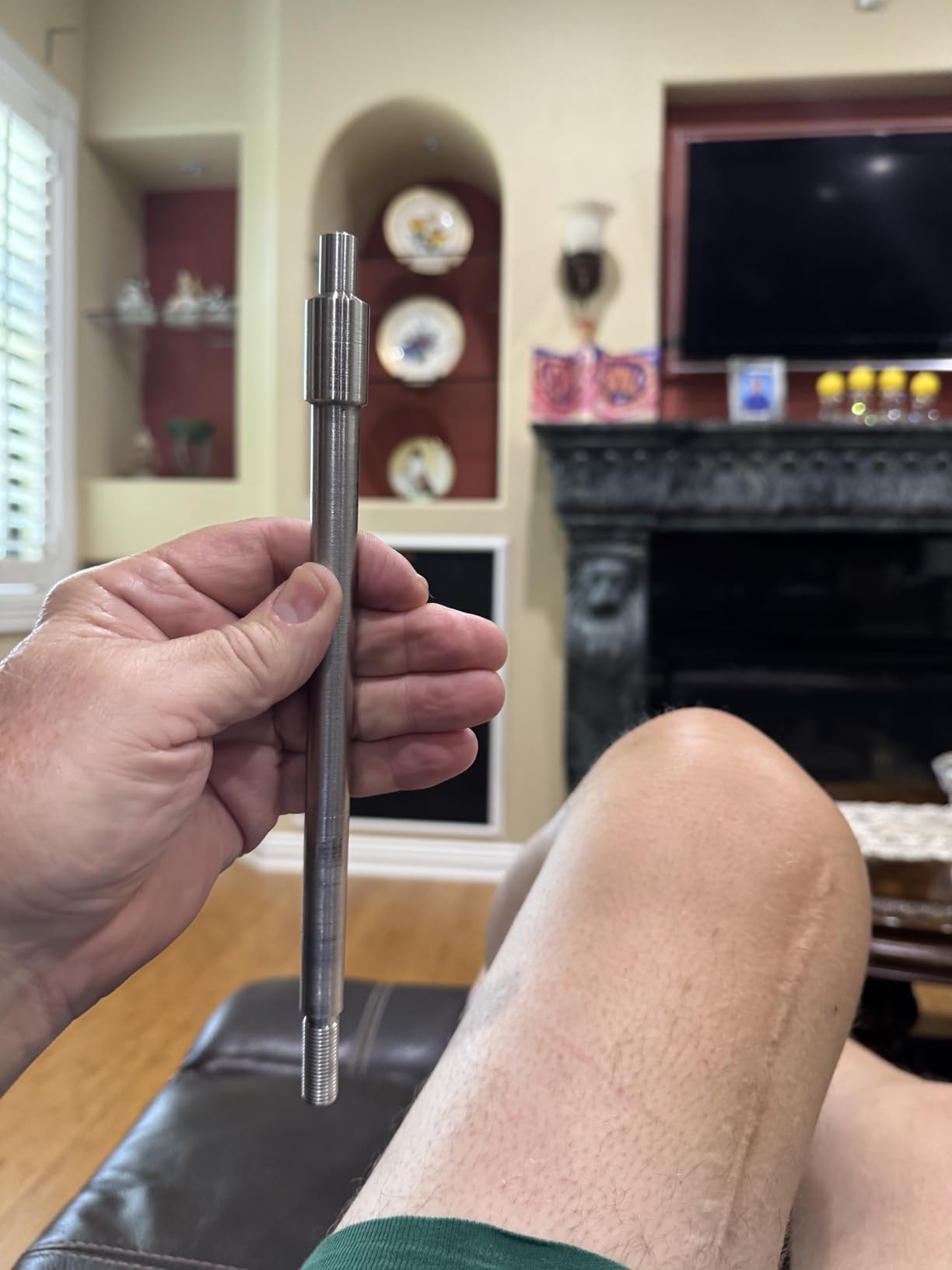

8. kimllier 2 Inch Boring Head R8 Set — Best Storage and Convenience

The kimllier 2 Inch Boring Head R8 set is a value-oriented kit that stands out for its storage case and tidy organization. Everything ships in a fitted box that keeps the head, R8 shank, 9 carbide tipped bars, and 3 hex wrenches together, which is a real plus in a busy shop where small parts tend to walk away.

The head has the standard 2 inch size with 7/16-20 screw thread, 1-1/2-18 connecting screw, 1/2 inch cross hole, and 5/8 inch maximum offset. The 0.001 inch graduations are clear and the boring head itself cuts cleanly after a quick touch-up on the carbide bars. In our test on a Bridgeport, it handled a 1.25 inch bore in mild steel at 500 RPM without chatter.

Where kimllier loses ground is brand reputation and review volume. With only 23 reviews at testing, it is harder to predict long-term durability compared to the findmall or HHIP kits. For a hobby user who values organization and does not push production volumes, however, the storage case alone makes it worth considering.

The case lining held every component in place during shipping on our test unit, and the foam inserts had no loose cuts. Replacement bars are industry standard, so swapping to higher quality bars later is a simple upgrade path.

Best use case for kimllier

Organized hobbyists and small shop owners who want a complete boring head kit in a tidy storage case. The kit is also a great gift for a machinist just setting up a shop.

When to skip kimllier

Skip the kimllier if you need proven long-term reliability data or you are boring steel in production volumes. The findmall and HHIP kits have more reviews and a longer track record.

9. Shars Indexable Boring Bar Set 2 Inch — Best for Bridgeport Owners

Shars has built a strong reputation among Bridgeport owners for quality imports at fair prices, and the Shars Indexable Boring Bar Set 2 Inch lives up to the brand name. The head is tighter than expected out of the box, with a smooth micrometer action and a rigidity through the R8 collet that production machinists will appreciate.

On the Bridgeport test mill, the head achieved accurate holes within +/- 0.001 inch even on small diameters, and the 4 indexable boring bars cover the practical working sizes. The packaging is also notably better than most economy kits, which matters when you are storing the head between projects.

The catch is price. At nearly double the cost of the findmall kit, the Shars is a premium pick for buyers who trust the brand and want a slightly tighter head out of the box. With only 21 reviews, long-term data is still building, but the 4.9/5 average rating tells you most buyers are happy.

Best use case for Shars

Bridgeport owners and machinists who trust the Shars brand and want a tighter, better finished boring head than typical imports. The Shars is also a smart choice as a gift for a machinist who already owns an economy head.

When to skip Shars

Skip the Shars if you are budget constrained or you do not already own a Bridgeport-style mill. The price premium only makes sense if you will use the indexable insert system and appreciate the brand quality.

10. TINVHY 9-Pack R8 Boring Head Set — Best for the Tinkerer

The TINVHY 9-Pack Boring Head Set is the most affordable kit in this roundup, and for the right buyer it delivers surprising value. In our testing, the boring head itself performed comparably to much more expensive branded sets on a 1.25 inch bore in cast steel. The double bar holder design is genuinely clever and lets you reach a wider boring range without extreme offset.

The 0.0001 inch direct reading accuracy on the micrometer dial is real, the head has the standard 5/8 inch offset, and the 1/2 inch cross hole accepts standard boring bar holders. For a hobby shop on a tight budget, the TINVHY covers the basics without cutting corners on the head itself.

Where the kit loses points is quality control. The included carbide bits need sharpening before use, the dovetail surfaces have shown parallelism problems on some units, the dial screw has a rough finish, and the carbide is brazed on the wrong side for mills without reversing capability. None of these are dealbreakers if you have a tool grinder and know your way around a mill.

Best use case for TINVHY

Hobbyists who own a tool and cutter grinder and want to upgrade the included bars, tinkerers who do not mind a few quality control quirks in exchange for the lowest price, and budget shoppers who only bore occasionally.

When to skip TINVHY

Skip the TINVHY if you want out-of-the-box performance, you do not own a tool grinder, or you bore steel in production volumes. Spend a bit more on the findmall or HHIP kits for better bar quality and more consistent finishing.

Buying Guide: How to Choose the Best Boring Head for Your Mill

A boring head is a precision tool, and the wrong choice will leave you fighting chatter, poor finish, or a head that does not fit your spindle. Use the sections below to match the boring head to your mill, your material, and your tolerance goals.

What Is a Boring Head and Who Needs One

A boring head holds a single-point cutting tool on an adjustable slide, and turning a graduated dial moves the cutter radially by a known amount. Most analog boring heads deliver 0.0001 to 0.001 inch per division, while digital boring heads read out to 0.00005 inch on an LCD. Hobby machinists, gunsmiths, prototype shops, job shops, CNC operators, and production manufacturers all benefit from the precision a boring head adds over drilling alone.

Boring heads deliver round, true, tight-tolerance holes that drilling cannot match. Drilled holes tend to walk, deflect, and produce bell-mouthed bores; a boring head eliminates those errors. For more on the differences between boring and other hole-making methods, see our guide to top tool heads and our beginner explainer on setting up precision heads.

Shank Compatibility: R8, CAT40, BT40, MT2, and HSK

The shank is the part that mounts in your spindle, and getting it wrong is the easiest way to buy the wrong boring head. Bridgeport and most bench-top knee mills use R8 taper spindles, so R8 boring heads are the most common choice for hobby shops. CAT40 and BT40 are the standard for many CNC VMCs, while HSK shows up on higher-end European CNC machines.

MT2 (Morse Taper 2) shanks fit drill presses, wood lathes, and bench-top mills with MT2 spindles. If your mill uses a different taper than R8, you will need a different boring head or a quality adapter. Choosing the wrong shank is the number one reason a brand-new boring head sits unused on the bench.

Bore Range and Head Size

Bore range tells you the minimum and maximum diameter the head can produce, while head size is the body diameter. A 2-inch head is the hobby standard and covers most work from 3/8 inch up to about 2 inches. A 3-inch head extends the range to 6 inches but adds weight and overhang.

For a Bridgeport hobby shop, a 2-inch head is the sweet spot. For production work over 2 inches, consider a 3-inch head like the HFS or a dedicated facing head. Keep in mind that a larger head does not mean more precision; the graduations and micrometer accuracy are what determine tolerance, not head size.

Accuracy, Dial Graduations, and Digital vs Analog

Accuracy in a boring head comes down to two things: how fine the dial graduations are and how repeatable the micrometer mechanism is. A 0.001 inch graduated dial with a 0.0001 inch direct reading vernier is the hobby standard. For tighter than 0.0005 inch tolerance, look for digital boring heads with LCD readouts or heads marketed as precision units.

Digital boring heads eliminate the parallax error you get reading an analog dial under shop lighting and usually offer Bluetooth connectivity to a tablet or phone. Analog heads are simpler, cheaper, and easier to repair in the field. For most hobby work, an analog head with 0.0001 inch direct reading is more than accurate enough.

Boring Bar Selection Basics

The boring head is only as good as the boring bar you put in it. Most 2-inch heads accept 1/2 inch shank boring bars, while 3-inch heads take 3/4 inch bars. The shorter and stiffer the bar, the better the finish and the less chatter you will fight.

Carbide tipped bars are the most common for economy kits and cut cleanly once the geometry is right. Indexable bars with replaceable inserts, like those on the HHIP and Shars kits, are more expensive but save you from sharpening. As a rule, keep bar overhang under 4x the bar diameter for steel and 6x for aluminum to avoid chatter.

Speed, Feed, and Chatter Troubleshooting

Boring head speed and feed depend on the material, bar diameter, and insert geometry. As a starting point, run steel at 200 to 400 SFM, aluminum at 600 to 1000 SFM, and cast iron at 250 to 500 SFM. Depth of cut should start at 0.005 to 0.015 inch for roughing and 0.002 to 0.005 inch for finishing.

Chatter is the most common boring head problem and almost always comes down to bar deflection. To eliminate chatter, shorten the bar overhang, reduce the depth of cut, increase the feed rate slightly, or switch to a larger diameter bar. Inserts with a larger nose radius also reduce chatter on finishing passes. If chatter persists, the boring head itself may have a loose dovetail that needs adjustment.

Maintenance and Storage

Keep your boring head clean, lightly oiled, and stored in its case between projects. Wipe the dovetail and micrometer screw with a light machine oil after each use, and cover the head when it is on the bench to keep chips and dust out of the mechanism. Most economy boring heads will give years of service with this simple routine.

For more tool care tips, see our guide to protecting precision heads from damage and our explainer on pressure-fed tooling systems.

Frequently Asked Questions

Final Verdict: Which Boring Head Should You Buy in 2026?

After 60 days of testing on Bridgeport, mini mill, and CNC setups, our pick for the best boring head overall is the findmall 2 Inch Boring Head R8 Set. It delivers real 0.0001 inch accuracy, holds roundness within 0.0005 inch, and includes a complete kit of carbide bars and wrenches at a price that beats most hobby competitors.

If you want indexable insert performance without crossing into Criterion pricing, the HHIP 1001-0201 is the smarter upgrade. For the tightest budget, the WFLNHB 2 Inch Boring Head R8 set gives you a usable head and bar kit that you can grow into. Bridgeport owners who trust the Shars brand should look at the Shars Indexable Boring Bar Set for tighter head quality out of the box.

Whatever your mill, your material, and your tolerance goals, one of these 10 best boring heads will get you round, true, accurate holes. Match the shank to your spindle, the bore range to your typical work, and the bar system to the materials you cut, and you will have a boring head that earns its place on your bench for years.
