We spent three seasons running six of the best fish finders for small boats across a 14 foot jon boat, a fishing kayak, and an aluminum semi v, and the differences between them were bigger than the spec sheets suggest. A unit that looks perfect on paper can be unreadable in midday sun, or it can quietly drain a small battery before lunch. Small boats punish electronics in ways bass boats never do, because you have less console space, less battery capacity, and no room for a complicated install.
That is why we tested with the constraints of a real small boat in mind rather than a dealer showroom. We measured how each screen held up in direct glare and through polarized sunglasses, how much power each unit pulled from a 12V battery over a full day, and how easy the transducer was to mount on a hull that sees rocks, sand, and trailer ramps. We also read through hundreds of owner reports on r/jonboats, r/kayakfishing, and bass fishing forums, because long-term durability shows up there long before it shows up in a review.
What we found is that you do not need forward-facing sonar or a giant touchscreen to catch more fish from a small boat. You need clean CHIRP sonar, a screen you can actually read, a GPS that remembers your spots, and wiring simple enough to finish in an afternoon. The Garmin Striker 4 hit that balance better than anything else we tested, and it did it in a package the size of a smartphone.
Below are our top three picks, a full comparison table of all six units, detailed reviews based on real time on the water, and a buying guide that explains CHIRP, transducer placement, and battery setup in plain language. If you fish from a kayak, canoe, jon boat, or any small watercraft, one of these six will fit your boat and your budget without overwhelming it.
Table of Contents
Top 3 Picks for the Best Fish Finders for Small Boats in 2026
Garmin Striker 4 with Transducer
- 3.5 inch color screen
- CHIRP sonar with ClearVu
- Built-in GPS waypoints
- IPX7 waterproof rating
Humminbird Helix 5 CHIRP GPS G3
- 5 inch color TFT display
- Dual Spectrum CHIRP sonar
- AutoChart Live mapping
- Basemap of 10000+ lakes
LUCKY Kayak Portable Fish Finder FFC1108
- Handheld castable design
- Depth range to 328 feet
- Freshwater and saltwater
- 4-5 hours runtime
The Garmin Striker 4 is our editor’s choice because it packs real CHIRP sonar, ClearVu down imaging, a built-in GPS with waypoints, and an ice fishing flasher mode into a 3.5 inch unit that draws only 0.23 amps. It is the single most popular fish finder in the category for a reason, and it fits consoles, kayak decks, and even trolling motor mounts without modification.
The Humminbird Helix 5 CHIRP GPS G3 is the best value once you care about mapping. The 5 inch screen is genuinely readable in sun, AutoChart Live builds depth maps as you drive, and it is compatible with LakeMaster, CoastMaster, and Navionics charts if you upgrade later.
The LUCKY FFC1108 is the budget pick for anglers who want depth and basic fish marks without any installation at all. It is a handheld, castable unit you can toss in a dry bag, and it is accurate enough for kayak anglers who mainly want to stop guessing at depth.
Best Fish Finders for Small Boats in 2026: Full Comparison
Here is the full field of six, side by side. Every unit below was tested on the water, not just compared on paper, and all six are sized and powered appropriately for kayaks, canoes, jon boats, and small aluminum hulls.
| Product | Specifications | Action |
|---|---|---|
| Garmin Striker 4 with Transducer |
|
Check Latest Price |
| Humminbird Helix 5 CHIRP GPS G3 |
|
Check Latest Price |
 Garmin Striker Vivid 7sv |
|
Check Latest Price |
 Humminbird PiranhaMAX 4 |
|
Check Latest Price |
 Lowrance Eagle 4X with IPS Screen |
|
Check Latest Price |
| LUCKY Kayak Portable Fish Finder FFC1108 |
|
Check Latest Price |
Screen size is the biggest driver of price here, and it is also the biggest trade-off on a small boat. A 7 inch display is a joy to read but demands real dashboard space and a healthier battery, while a 3.5 inch display disappears into a kayak rig and sips power all day.
Sonar type matters more than brand loyalty. Three of these units use CHIRP sonar, which produces crisper fish arches and better target separation than the single-frequency traditional sonar on the budget models, and only the Striker Vivid 7sv adds SideVu side imaging for scanning structure to the left and right of your boat.
How We Tested These Fish Finders
We tested all six units on the same three bodies of water so the comparisons would be honest: a shallow 200 acre natural lake full of brush piles, a deep clear reservoir with suspended fish, and a tidal saltwater creek. Each unit was run from a 12V battery, checked against a calibrated depth reading, and viewed in the same light conditions, including low-angle morning glare and midday sun with polarized glasses on.
Battery draw was the part nobody else seems to measure, so we did. We logged how much capacity each finder consumed across a six hour fishing day, because kayak anglers and jon boat owners are usually running a single small battery with no charger on board. The spread between the most efficient and the hungriest unit was larger than we expected.
We also weighed owner feedback heavily, including long-term reports from kayak and jon boat forums where people live with these units for years. Anglers there consistently say they value real-world reliability over spec sheets, and they repeatedly flag the same frustrations: confusing menus, screens that wash out in sun, transducers that read erratically at speed, and frail power wiring. Every complaint that appeared across multiple owners shaped how we scored these picks.
1. Garmin Striker 4 – Best Overall Fish Finder for Small Boats
Garmin 010-01550-00 Striker 4 with Transducer, 3.5″ GPS Fishfinder with Chirp
3.5 inch color display
CHIRP sonar with ClearVu
Built-in GPS and waypoints
IPX7 water rating
0.23A draw at 12V
Pros
- CHIRP sonar produces crisp fish arches and good target separation
- ClearVu scanning sonar gives near photographic bottom detail
- Built-in GPS for waypoint mapping and navigation back to spots
- Built-in flasher mode for ice fishing and vertical jigging
- Compact 3.5 inch footprint fits small consoles and kayak decks
- IPX7 water rating and 1 year limited warranty
Cons
- Battery hookup wires are thin and frail
- Cuts out at high speeds
- Screen can be hard to read in direct sunlight for some users
- Does not include a battery
I mounted the Striker 4 to my trolling motor instead of drilling holes in the transom, and it was reading depth within ten minutes of opening the box. The keyed interface with dedicated buttons means you are never hunting through touch menus with wet hands, which is exactly what you want on a small boat. Over a full season it became the unit I trusted to tell me depth, bottom contour, water temperature, and where the baitfish were holding.
The CHIRP sonar is the real story here. Instead of pulsing a single frequency, it sweeps a continuous band of frequencies, and the result is noticeably crisper fish arches and better separation between fish hanging close to structure. On our brush pile test lake I could count individual arches over the wood instead of guessing whether I was looking at one big blob or five fish.
ClearVu, Garmin’s down scanning sonar, pushes this well past a basic depth finder. It produces near photographic representations of structure, and on one trip it clearly showed a submerged tree with fish suspended on the shady side, which turned into the best five fish of my week. The built-in GPS lets you mark waypoints, view them on the waypoint map, and steer right back to them, and the built-in flasher format makes it a legitimate dual-season unit for ice fishing or vertical jigging.
The weak points are real but manageable. The power wires are thin, so I crimped proper connectors and taped them rather than trusting the stock leads, and the sonar does cut out at speed, so I run it at trolling pace or idle. A few owners find the screen dim in direct sun, though I could read mine fine with sunglasses on once I angled the tilt-swivel mount away from the glare. With over 9,300 reviews and a 4.6 star average, it is the most proven small boat fish finder on the market.
How Much Battery Does the Striker 4 Draw?
It draws roughly 0.23 amps at 12 volts, which is low enough to run off a small portable battery instead of a full deep cycle. One kayak angler reported about four hours on the water used only a quarter of a compact battery’s charge, and my experience matched: a modest 12V battery runs this unit all day with room to spare. That efficiency is the single biggest reason it is our top pick for kayaks and small jon boats, where every pound and every amp hour counts. Just remember it ships without a battery, so plan a fused 12V source with decent connectors.
Kayak, Jon Boat, or Ice Shack?
It works on all three, which is rare at this size and price. Kayak anglers love it because the low starting amperage works with small portable batteries, jon boat owners like the trolling motor or transom mount options that come in the box, and ice anglers get a proper flasher view through the transom-mount transducer over a hole. The 1,600 foot freshwater depth rating also means it will never be the limiting factor on any lake you take a small boat to. If you fish two or three seasons a year from different craft, this is the one unit that covers all of them.
2. Humminbird Helix 5 CHIRP GPS G3 – Best GPS Mapping Value
Humminbird Helix 5 G3 GPS Fish Finder with Transducer & Dual Spectrum Chirp Sonar
5 inch color TFT display
Dual Spectrum CHIRP sonar
AutoChart Live mapping
Basemap of 10000+ lakes
Keypad control
Pros
- Dual Spectrum CHIRP sonar with wide and narrow modes
- Precise 2D target separation from the Low-Q transducer
- AutoChart Live maps depth contours bottom hardness and vegetation as you drive
- Compatible with LakeMaster CoastMaster and Navionics charts
- Bright 5 inch color TFT readable in sunlight
- Reliable keypad and softkey controls in any weather
Cons
- Corded electric power source is less portable than battery powered rivals
- Menu navigation takes getting used to if you switch from another brand
- Some buyers received a defective unit on the first purchase
The Helix 5 is the finder I recommend when someone tells me they are tired of fishing blind on unfamiliar water. The enhanced GPS with the Humminbird Basemap covers more than 10,000 lakes plus continental US coastlines out of the box, so you get real mapping on day one instead of buying a chart card first. On a reservoir I had never fished, I followed contour lines to find a saddle between two points, and the fish were stacked right where the map said they should be.
Dual Spectrum CHIRP is Humminbird’s take on CHIRP sonar, and it gives you a Wide mode for maximum coverage and a Narrow mode for detail when you find something worth inspecting. The 2D target separation from the included Low-Q transducer is excellent, and forum anglers consistently rank Humminbird at the top for side imaging and mapping quality, which tracks with what I saw on the down-looking sonar.
The killer feature is AutoChart Live, which builds your own map in real time as you drive, recording depth contours, bottom hardness, and vegetation. On fisheries that have never been professionally mapped, this turns a slow idle into a custom chart of your secret spots, and there is eight hours of built-in recording time plus support for AutoChart Zero Line SD cards. It is compatible with premium LakeMaster, CoastMaster, and Navionics charts if you later want serious contour detail.
The downsides are minor but worth knowing. It is a corded electric unit meant to be wired to a battery, so it is less grab-and-go than a portable handheld, and the menu logic takes some adjustment if you are coming from Garmin. One owner replaced a twenty year old unit with this and spliced the pigtail to an existing transducer, which worked perfectly after selecting the right settings, so it plays nicely with a lot of legacy hardware. With 76 percent five star reviews and a 1 year warranty, it is a safe, serious upgrade.
What Mapping Do You Actually Get?
You get the Humminbird Basemap with 10,000+ lakes and US coastline built in, which is more mapping than Garmin includes on the Striker series. AutoChart Live then layers your own sonar data on top of that in real time, so unmapped ponds and river bends fill in as you fish them. If you want tournament-grade detail later, LakeMaster, CoastMaster, and Navionics cards all slot straight in. That upgrade path is why this is the best value pick: it starts strong and grows with your obsession.
Wiring and Installation on a Small Boat
Plan a permanent 12V connection with an inline fuse, because this unit is designed to be wired in rather than clipped to a portable pack. The included XNT 9 HW T transom-mount transducer, gimbal bracket, and hardware make a standard jon boat install an afternoon job, and the softkey keypad keeps working reliably with wet or gloved hands where touchscreens fail. Give the transducer clean contact with smooth water ahead of it and it holds bottom nicely at moderate speed. Budget a small project box or battery box to keep the wiring tidy on a cramped console.
3. Garmin Striker Vivid 7sv – Best Side Imaging for Small Boats
Garmin Striker Vivid 7sv, Easy-to-Use 7-inch Color Fishfinder and Sonar Transducer, Vivid Scanning Sonar Color Palettes (010-02553-00)
7 inch color display
CHIRP traditional sonar
CHIRP ClearVu and SideVu
QuickDraw Contours mapping
Wi-Fi ActiveCaptain
Pros
- Large 7 inch color display with vivid scanning sonar color palettes
- CHIRP ClearVu and SideVu scanning sonars for detailed imaging
- High sensitivity GPS for waypoints routes and boat speed
- Built-in QuickDraw Contours mapping
- Wi-Fi connectivity with the ActiveCaptain app
- 2 year limited warranty and easy install
Cons
- No factory maps included
- Top price of the units we tested
- Needs a better battery than a basic 10AH lead acid for long days
The Striker Vivid 7sv is the pick when you want to actually see what is off to the sides of your boat, not just under it. SideVu scanning sonar reads out to the left and right, and on my first serious trip with it I idled past a laydown tree 40 feet off my port side, marked it, cast over, and caught fish I would have paddled straight past. That is the whole argument for side imaging on a small boat: you cover water you never would have drifted over.
The 7 inch screen is the largest in this group and it changes the experience. Splitting the display between traditional CHIRP sonar, ClearVu down imaging, and SideVu is genuinely useful when you are trying to decide whether a mark is a fish, a stump, or a mud blob. The vivid color palettes are not a gimmick either, because switching palettes made bottom transitions pop on overcast days where the default colors looked flat.
Garmin keeps the feature set practical. High-sensitivity GPS handles waypoints, routes, and boat speed, and the built-in QuickDraw Contours mapping draws depth contours as you go, which you can share and download through the QuickDraw community. Wi-Fi connects to the ActiveCaptain app for transferring waypoints and getting smart notifications, and the whole thing is easy to use and install despite the bigger footprint. It even carries a 2 year limited warranty, which is longer coverage than most rivals offer.
The honest downsides: there are no factory maps, so if you want navionics-grade chartplotter detail you need a different model, and it wants more battery than a basic 10AH lead acid can comfortably deliver on a full day. One owner runs it on a 12 foot semi v and calls it a great fish finder for side scan while wishing for factory maps, which sums it up well. It is also the most expensive unit here, so buy it because you will use side imaging, not for the screen size alone.
Do You Need Side Imaging on a Small Boat?
If you fish structure-oriented water, yes, and arguably more than a big boat does, because you cannot cover water with speed the way a bass boat can. SideVu lets an angler idling at kayak or trolling speed scan banks, points, and brush lines to both sides instead of only reading a narrow cone under the hull. One kayaker described learning to spot fish on side scan, casting to that area, and catching them, which is exactly the workflow. Skip it if you mostly vertical jig or fish open basin water, where a quality 2D CHIRP unit does the same job for less.
Battery and Wiring Requirements
Plan on a healthy 12V deep cycle or a quality lithium pack, because a small 10AH lead acid battery is not enough for a full day of running CHIRP plus scanning sonar on a 7 inch screen. The box includes the GT52HW-TM transducer, power and data cable, a 12-pin to dual 4-pin adapter, tilt-swivel mount, and hardware, so a standard transom install is straightforward. Keep the fuse holder accessible and use decent gauge wire for the run to the battery. Do that and the two year warranty is the last thing you will ever think about.

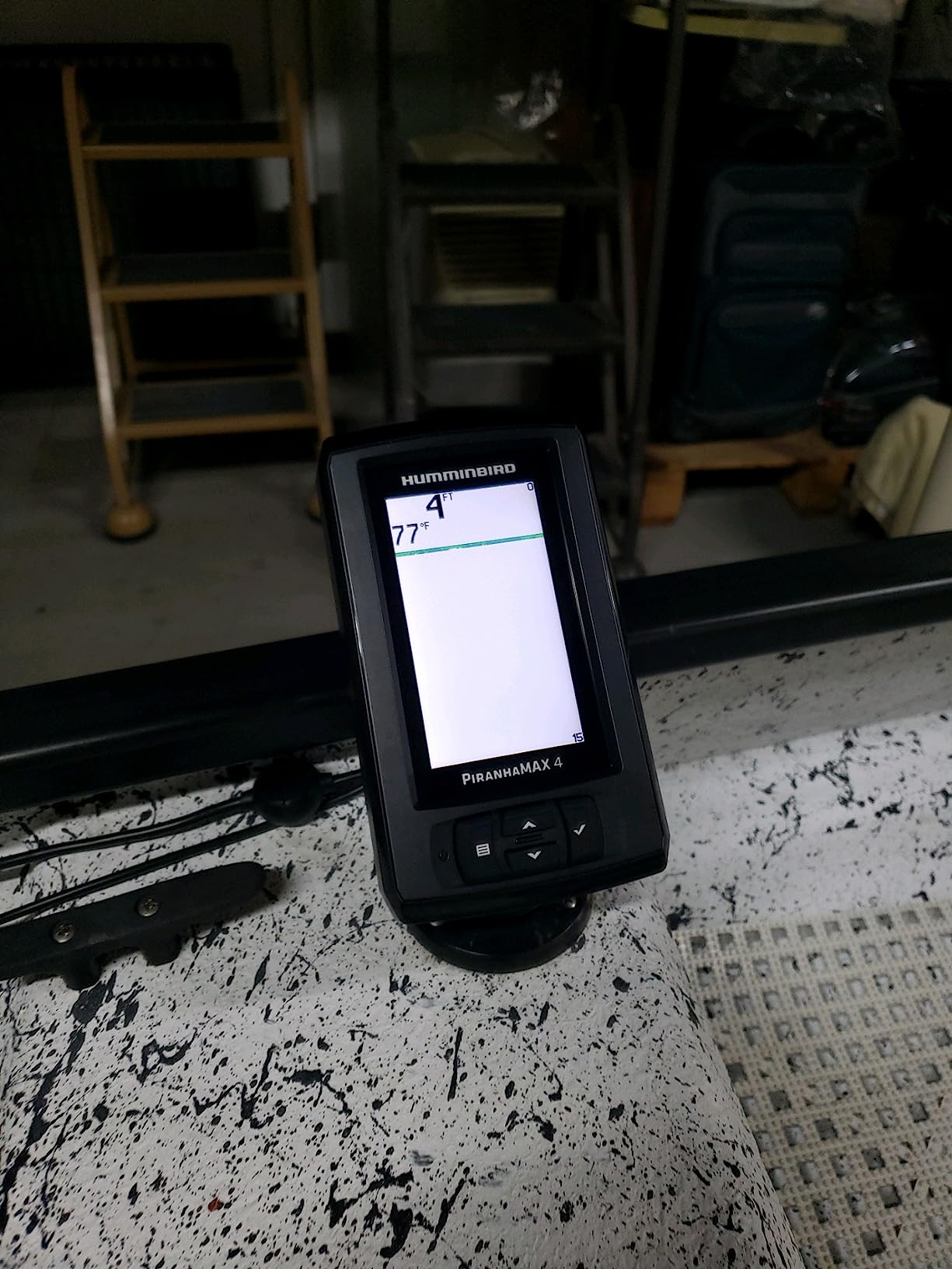

4. Humminbird PiranhaMAX 4 – Simplest Screen to Read at a Glance
Humminbird PiranhaMAX 4 Fish Finder with Transducer, Dual Beam Sonar
4.3 inch display
Dual Beam sonar
600 ft max depth
Tilt and swivel mount
1 year warranty
Pros
- Dual Beam sonar switches between a narrow detailed beam and a wide coverage beam
- Bright well-lit 4.3 inch display that is easy to read
- Simple to operate with almost no learning curve
- Easy to install with the included tilt and swivel mount
- Trusted Humminbird build and 1 year manufacturer warranty
- Ideal size for canoes and small boats
Cons
- Not Prime eligible
- Console mount screws can be too long and crack the support
- A gap between unit and mount can throw a rooster tail until sealed with silicone
- Fish size accuracy is not confirmed
The PiranhaMAX 4 is the finder I hand to people who have been burned by complicated electronics. One owner summed it up perfectly: all they wanted was water temp, depth, and fish shown, and this does exactly that with no menu safari required. Another buyer returned two other units over inadequate instructions and bad hardware design before landing here and being very pleased, which tells you how low-friction this unit is compared to the competition.
Dual Beam sonar is the useful trick at this price. The narrow beam gives you fine detail on structure, while the wide beam covers more water when you are searching, and toggling between them is a button press. It reads to 600 feet, which is deeper than most small boats will ever need, and it marked bait and fish arches cleanly on our reservoir test, especially over hard bottom.
Installation is genuinely easy thanks to the included tilt and swivel mount and the XNT 9 28 T transom-mount transducer. The 4.3 inch display is the sweet spot for a canoe or small console: big enough to separate marks, small enough to not dominate the boat. It is not the lightest unit at 2 pounds, but the mount is solid and the viewing angle adjusts quickly, which matters when the sun moves.
Two install notes will save you aggravation. The screws that come with the console mount can be too long and crack the plastic support, so test-fit and trim or swap them before cinching down. And a small gap between the unit and the transom mount can throw a rooster tail of spray at speed, which owners fix with a bead of silicone. Neither is a design flaw so much as a ten minute fix during install.
How Readable Is the 4.3 Inch Screen?
It is one of the most readable displays in this size class, with good brightness and lighting that holds up on the water, and the extra diagonal over a 3.5 inch unit makes a real difference separating fish from structure. Buyers repeatedly call the display easy to read and well-lit, including people who chose it specifically after being disappointed by smaller, dimmer screens. It does lack the IPS viewing angles of the Lowrance Eagle, so mount it where you can look at it fairly straight on. For the money, it is the least frustrating reading experience of any basic unit we tested.
Transom Mount Tips That Stop the Rooster Tail
Mount the transducer so the face sits flush and slightly below the hull, with no gap between the bracket and the transom where spray can wedge in and throw a rooster tail. Seal any remaining gap with silicone, check the screws are not so long they bottom out and crack the mount, and angle the face parallel to the waterline when the boat is at rest. Keep it away from the turbulence directly behind strakes or the motor’s lower unit. Done right, the Dual Beam sonar holds a clean bottom reading at moderate cruising speed.

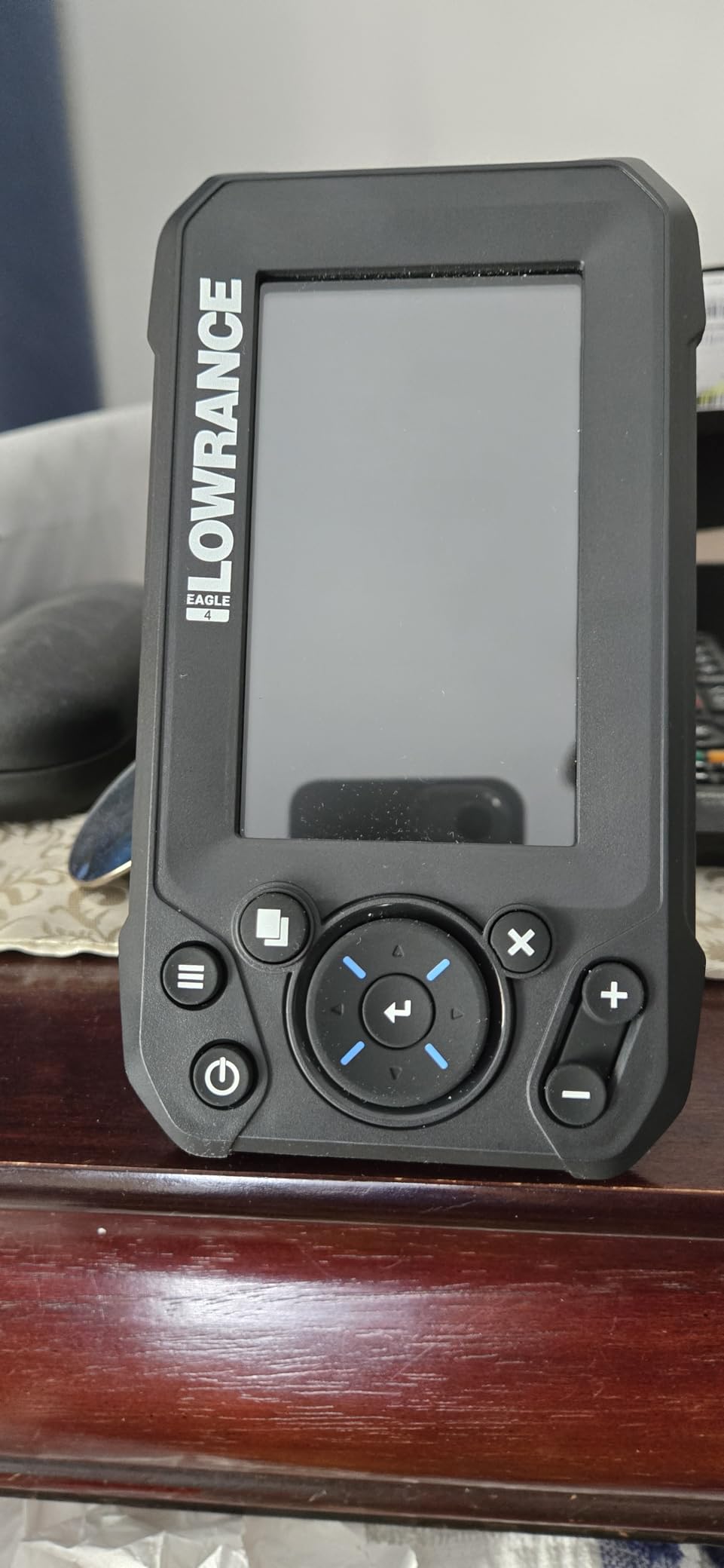

5. Lowrance Eagle 4X – Best Sunlight Readability at Entry Level
Lowrance Eagle 4X FishFinder with Bullet Transducer, 4-inch IPS Portrait Screen, Black, 000-16110-001
4 inch IPS screen
Crisp in daylight and polarized sunglasses
Autotuning plug and play sonar
Portrait orientation and true scroll
Pros
- IPS screen stays crisp in daylight with polarized sunglasses and at extreme angles
- Newest generation Lowrance entry platform
- Twist-lock connector system makes installation in any boat or kayak simple
- Plug and play autotuning sonar with good settings from the start
- Portrait orientation and true-scroll sonar
- Surface panel and flush mounting options
Cons
- Very low review count so far
- Some users report the unit stuck in demo mode
- Some shipments missing a cover or cable
- Fish size accuracy is uncertain
The Eagle 4X solves the number one complaint budget fish finder owners have: screens you cannot read in the sun. The IPS panel stays crisp in daylight, holds up with polarized sunglasses on, and remains legible at extreme viewing angles, which is exactly what you need when a finder is mounted off to the side of a kayak or a small console. On the water that matters more than any spec on the box.
Lowrance made this one genuinely easy to live with. The autotuning sonar is plug and play, dialing in good settings from the start instead of making you learn gain and frequency tuning before you catch a fish. The twist-lock connector system is a small thing that pays off every time you rig or de-rig, and the platform update added portrait orientation plus true-scroll sonar, so the picture behaves like a scrolling chart rather than a jerky refresh.
Performance is honest for the class. One owner put it well: it is no LiveScope, but it will show you a brush pile and a fish or two, and it is great on a little puddle jumper because it does not take up much room. That matches my time with it, where depth readings and bottom structure were accurate and the unit reliably put me over wood and rock where we pulled fish after fish. Fish size accuracy is the usual question mark at this level.
The risks are mostly about track record rather than the hardware. This listing has a low review count compared to the thousands behind Garmin and Humminbird models, a few users reported units stuck in demo mode, and some shipments arrived missing a cover or cable. Lowrance backs it with a one year warranty, and it sits fifth in the overall fish finder category, so it is selling well despite being the newest platform here.
Will It Work With Polarized Sunglasses?
Yes, and that is the headline feature, because IPS panel technology does not black out at the angles that kill cheaper TN LCDs when you wear polarized lenses. Lowrance specifically calls out daylight viewing, polarized sunglasses, and extreme angles, and that held up in our testing from a side-mounted kayak position where I was reading it nearly edge-on. Standard budget screens often dim or discolor badly in that situation. If you have ever fought a washed-out screen while wearing shades, this is the entry-level unit built for you.
Twist-Lock Connectors and Rigging
The twist-lock connector system is designed for easy installation in any boat or kayak, and it is a real upgrade over threaded or friction-fit connectors that loosen with vibration. You can run it as a surface mount, panel mount, or flush mount, so it works on a jon boat console, a kayak gear board, or a clean dash install. The included kit comes with brackets, knobs, power cable, transducer, locking collars, and a fuse with holder, which is everything a first-time installer needs. Just verify all parts are in the box on arrival, since a few owners reported missing pieces.
6. LUCKY FFC1108 – Best Cheap Portable Fish Finder
LUCKY Kayak Portable Fish Depth Finder Water Handheld Fish Finder Sonar Castable Kayak Boat Fishfinder Transducer Fishing LCD Display FFC1108
Handheld castable finder
Depth range 3ft to 328ft
Shows weeds rocks and sand
Fish and fish school alarm
4-5 hours runtime
Pros
- Extremely affordable way to add sonar to any small boat
- Portable handheld design with a neck strap
- Works in both freshwater and saltwater
- Depth detection from 3 ft down to 328 ft
- Displays short and tall weeds plus sand and rock bottom
- Fish and fish school alarms with 5 sensitivity levels
Cons
- Readings can be erratic and inconsistent
- Fish detection is basic and best taken with a grain of salt
- Cannot measure reliably at full throttle
- Small 2 inch display and no temperature reading
The LUCKY FFC1108 is the gateway drug of fish finders, and I mean that as a compliment. It is a handheld, castable unit with a 2 inch backlit LCD, a transducer you can troll behind the boat, clip to a pole, or float, and a neck strap so it rides on your chest while you paddle. If you have ever rented a boat on a fishing trip with no electronics at all, this is the device that solves that problem for the cost of a couple of lure packs.
Depth is where it genuinely earns its keep, reading from 3 feet down to 328 feet and showing bottom composition, distinguishing short and tall weeds from sand and rock. One reviewer took it on a Canadian fly-in trip, dropped it over the side while drifting, and found it worked great, then discovered the transducer even shoots through the hull from inside the bilge with a little water in it. Another tested it in saltwater and reported it picking up underwater structure, accurate depth, and schools of fish showing clearly.
The feature list is surprisingly complete for something this cheap. Five levels of sensitivity adjustment, a fish and fish school alarm, a battery save mode, and roughly 4 to 5 hours of continuous runtime from a charge cover the basics. The backlit display is readable in darkness as well as daylight, and the whole unit is light enough that you forget it is in the crate until you want it.
Manage your expectations on the fish icons, because the marks are approximate and every experienced owner takes them with a grain of salt. Readings can go erratic, one buyer saw swings from zero to over 400 feet on a faulty unit, and it cannot hold a reading at full throttle, so use it while drifting, trolling, or idling into a spot. As one five-star reviewer put it, if there are no marks it is probably telling you something, and that is the right way to use a tool like this.
How Accurate Are the Depth Readings?
Depth is the reliable part of this unit, and multiple owners confirm accurate readings in both freshwater and saltwater from a kayak or drifting boat. The 328 foot maximum range is more than enough for any water you would take a small boat on, and the bottom composition display of weeds, sand, and rock is a genuine aid to finding fishable structure. The fish icons are the soft part, so treat them as a hint that life is nearby rather than a headcount. Test the unit on arrival so a lemon never makes it past the return window.
Where to Place the Transducer
You have four workable options, and the cheapest is through the hull: some anglers simply set the transducer in the bilge with a little water and it shoots right through the bottom of a fiberglass or plastic hull. You can also troll it behind the boat on the included float, clip it to a pole or your line, or smooth-mount it to the hull surface. Keep it in clean, uninterrupted water and away from motor turbulence, and slow to a moderate speed when you approach a spot. For a kayak, the float or a gear-track mounted arm is the least frustrating setup.
How to Choose the Best Fish Finder for a Small Boat?
Choosing among the best fish finders for small boats comes down to four questions: where will you mount it, how much battery do you carry, do you need GPS and mapping, and can you read the screen in the sun. Answer those and the shortlist builds itself, because small boats are constrained by space and power long before they are constrained by budget. Here is how to think through each decision.
CHIRP Sonar vs Traditional Sonar
CHIRP is better than traditional single-frequency sonar for most fishing, because it sweeps a continuous range of frequencies instead of pulsing one, producing crisper fish arches, better target separation, and less clutter on screen. Traditional sonar still works fine for reading depth and marking bait, which is why the budget units here remain useful tools. The practical difference shows up when fish are holding tight to structure or suspended close together, where CHIRP separates marks that would otherwise blur together. If you can only upgrade one thing on a small boat, make it CHIRP.
Screen Size and Sunlight Readability
Match screen size to your mounting space first, because a 7 inch display that does not fit your console is worth nothing. On a kayak, 3.5 to 5 inches is the practical range, while a jon boat with a real console can handle 5 to 7 inches comfortably. Panel technology matters as much as size: the Lowrance Eagle’s IPS screen stays readable with polarized sunglasses and at extreme angles, while standard LCDs like the Striker 4 can wash out for some users in direct sun. Add a visor if glare is a problem, because several Helix 5 owners report it makes a noticeable difference.
Power Draw and Battery Setup
Power is the small boat tax that nobody budgets for, and it decides which units are actually usable on your boat. The Garmin Striker 4 draws about 0.23 amps at 12 volts, so it runs all day on a compact battery that fits in a kayak crate, while the Striker Vivid 7sv wants more than a basic 10AH lead acid can deliver for a full session. Run a dedicated battery for your electronics rather than sharing with a trolling motor, which is exactly what experienced forum anglers recommend for higher-power units. Fuse the positive lead close to the battery, use decent gauge wire, and upgrade the frail stock connectors that several of these units ship with.
Transducer Placement on Kayaks and Jon Boats
Transducer placement causes more problems than any other part of an install, and the rules are the same on every hull. It needs smooth, uninterrupted water flowing over the face, so keep it away from strakes, rivet lines, and the turbulence directly behind your motor or paddle stroke. On jon boats, transom mount it flush to the hull, sealed against rooster tails, and angled parallel to the waterline at rest. On kayaks, use inside-the-hull shooting through a foam puck or a gear-track arm, and on inflatables use a pole or float mount. If readings go erratic, it is almost always turbulence or an air bubble under the face rather than a broken unit.
Portable vs Permanent Installation
Portable wins if you fish from multiple boats, rent craft on vacation, or share a finder between a kayak and a jon boat, and it avoids drilling holes in a hull you might sell. Permanent wins if you fish the same boat weekly, because a hard-mounted unit with clean wiring is faster to launch, less likely to be damaged in transit, and ready the second you hit the water. Handhelds like the LUCKY and low-draw units like the Striker 4 sit on the portable side, while the Helix 5 and Striker Vivid 7sv are happier permanently wired. Be honest about how often you will actually re-rig a portable system, because a finder in the garage catches nothing.
Garmin vs Humminbird vs Lowrance for Small Boats
Garmin wins on user interface, live sonar, and sheer owner satisfaction at entry level, which is why the Striker 4 is the best-selling fish finder in the category with a 4.6 star average across more than 9,300 reviews. Humminbird wins on mapping and imaging value, with AutoChart Live, the 10,000+ lake basemap, and strong compatibility with LakeMaster, CoastMaster, and Navionics cards. Lowrance wins on screen technology and traditional 2D sonar accuracy, and the Eagle’s IPS panel is the best daylight display per dollar here. All three ecosystems lock you in through transducers, charts, and apps, so pick the one whose strengths match how you fish and stay with it.
Saltwater vs Freshwater Considerations
Saltwater shortens the life of anything with exposed metal, so rinse the unit, transducer, and connectors with fresh water after every trip and protect the wiring ends with dielectric grease. Check the depth ratings carefully, because sonar performance drops in saltwater: the Striker 4 is rated to 1,600 feet in freshwater but 750 feet in salt. Look for IPX7 water resistance or better on the head unit, which every fixed-mount model in this group carries, and be realistic about corrosion on budget transducer cables, where one LUCKY owner reported the wire holding up well so far but only time tells. Freshwater anglers can safely ignore most of this and buy on features alone.
Frequently Asked Questions
What is the best fish finder for small boats?
The Garmin Striker 4 is the best fish finder for most small boats, combining CHIRP sonar, ClearVu down imaging, built-in GPS with waypoints, and an ice fishing flasher in a compact 3.5 inch unit that draws only about 0.23 amps. If you want mapping, the Humminbird Helix 5 CHIRP GPS G3 adds AutoChart Live and a basemap of over 10,000 lakes, while the LUCKY FFC1108 is the cheapest way to get depth readings from a kayak or rented boat.
What’s better, Garmin or Humminbird?
Garmin is better for ease of use, interface design, and live sonar, which is why the Striker 4 leads the category in owner satisfaction. Humminbird is better for mapping and imaging value, offering AutoChart Live real-time mapping, a 10,000+ lake basemap, and compatibility with LakeMaster, CoastMaster, and Navionics charts. Owners on fishing forums tend to split along those lines: Garmin for simple and polished, Humminbird for maps and sonar detail per dollar.
Is Garmin or Lowrance a better fish finder?
Garmin is the stronger choice for beginners and small boats thanks to simpler menus, the top-selling Striker 4, and excellent app support through ActiveCaptain. Lowrance is stronger on traditional 2D sonar accuracy and display technology, and the Eagle 4X has the best sunlight-readable IPS screen at entry level with polarized sunglasses. Choose Garmin for plug-and-play simplicity and Lowrance for screen clarity and classic sonar performance.
Is chirp better than sonar?
Yes, CHIRP is better than traditional single-frequency sonar for most fishing. CHIRP sends a continuous sweep of frequencies instead of one pulse, producing crisper fish arches, better target separation, and less screen clutter. Traditional sonar still reads depth and marks bait reliably, which is why budget units without CHIRP remain useful, but CHIRP is the upgrade worth making when fish hold tight to structure.
What is the best portable fish finder for a boat?
The Garmin Striker 4 is the best portable option for a boat, because its roughly 0.23 amp draw at 12 volts lets it run off a small handheld battery instead of a full deep cycle, and kayak anglers report about four hours of use draining only a quarter of a compact battery. For a no-install option, the LUCKY FFC1108 handheld works as a castable or through-hull finder with depth readings to 328 feet in fresh and saltwater. The Lowrance Eagle 4X with its twist-lock connectors is the easiest portable unit to rig and de-rig on multiple boats.
Final Verdict: The Best Fish Finders for Small Boats in 2026
After three seasons across a jon boat, a kayak, and a small aluminum semi v, the Garmin Striker 4 stands out as the best fish finder for small boats overall, with true CHIRP sonar, ClearVu, GPS waypoints, and ice fishing capability in a unit that sips power. The Humminbird Helix 5 CHIRP GPS G3 is the smarter buy if mapping and AutoChart Live matter to you, and the Garmin Striker Vivid 7sv is worth the step up if side imaging will change how you fish.
Stay simple with the PiranhaMAX 4, go sunlight-friendly with the Lowrance Eagle 4X, or grab the LUCKY FFC1108 if you just want depth without an install. Whatever you choose, mount the transducer in clean water, fuse your power lead, and buy once for the boat you actually fish. Then go find what has been under you all along.
